ZeroTech

ZTPA-10WCBass

ZTPA-10WCBass

Features

  • Drive units 6.5"×1，0.75"×1
  • Rated power (RMS) 10W
  • Rated Voltage 100V
  • Sensitivity (1m, 1W) 93±2dB
  • Max. SPL(1m) 103±2dB
  • Frequency response 90Hz-18KHz

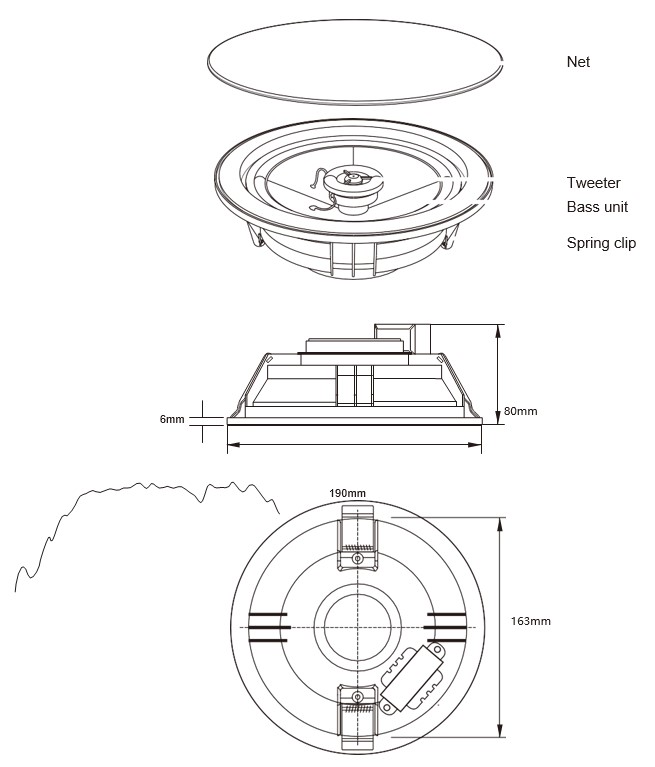

  • Dimension of product Φ190×80mm
  • Weight 1.0kg

ModelZTPA-10WCBass
Drive units6.5″×1，0.75″×1
Rated power (RMS)10W
Rated Voltage100V
Sensitivity (1m, 1W)93±2dB
Max. SPL(1m)103±2dB
Frequency response90Hz-18KHz
Dimension of productΦ190×80mm
Weight1.0kg

ClassTitleLanguageTypeDownload
DatasheetZTPA-10WCBassEnglishpdf
