ZTIPB-EG8M-30F-AF
ZTIPB-EG8M-30F-AF
- 3D DNR, true WDR, HLC, BLC, smart IR and ROI coding
- Max. resolution: 8MP ( 3840 × 2160)@30fps
- Smart H.265/H.264 coding
- ICR auto switch, true day / night vision
- 50 ~ 70m /80M (OPTINAL) IR night view distance; Motorized zoom lens
- Support NIR and image distortion correction
- One CVBS output
- 1CH audio input and 1CH audio output
- Built-in micro SD card slot, up to 256GB/512GB(OPTINAL)
- 1CH alarm input; 1CH alarm output
- DC12V/PoE power supply
- IP67 protection grade
- P2P function optional
- Support three streams
- Support mobile surveillance by smart phones with iOS and Android OS
- Intelligent analytics
| Model Specifications | ZTIPB-EG8M-30F-AF |
|---|---|
| Camera | |
| Image Sensor | 1 / 2.8″ CMOS |
| Image Size | 3840×2160 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Iris Type | DC Iris |
| Min. Illumination | 0.01 lux @ F1.5, AGC ON; 0 lux with IR 0.008 lux @ F1.2, AGC ON; 0 lux with IR |
| Lens | 2.8 mm ~ 12mm @F1.5, motorized lens |
| Field of View | Horizontal: 96° ~ 45.6° Vertical: 64° ~ 26.6° Diagonal: 103.8° ~ 51.5° |
| Lens Mount | Φ14 |
| Day& Night | On / Off / Auto, ICR |
| Day/Night Switch | Support auto schedule |
| S/N (Signal-to-noise ratio) | ≥50 dB |
| Wide Dynamic Range | 120 dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° |
| Digital Zoom | 8x |
| Color & B/W | On, Off, Auto, IR-CUT Filter removable (ICR) |
| Image | |
| Video Compression | Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard | Baseline Profile / Main Profile / High Profile |
| Resolution | 6MP (3072 × 2048) 5MP (2592 × 1944) 4MP (2592 × 1520) 2K (2560 × 1440) 3MP (2304 × 1296) 1080P (1920 × 1080) 720P (1280 × 720) D1, CIF, 480 × 240 |
| Main Stream | 60Hz: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~30fps) 50Hz: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~25fps) HFR Mode : 60Hz: 1080P/720P (1~60fps) 50Hz: 1080P/720P (1~50fps) |
| Sub Stream | 60Hz: 1080P/720P/D1/480×240 (1~30fps) 50Hz: 1080P/720P/D1/480×240 (1~25fps) |
| Third Stream | 60Hz: 720P/D1/CIF/480×240 (1~30fps) 50Hz: 720P/D1/CIF/480×240 (1~25fps) |
| Bit Rate | 64 Kbps ~ 12 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Intelligent Analytics (Smart Events) | |
| Perimeter Protection | Line crossing, region entrance/exiting/intrusion (human/motor vehicle/non-motor vehicle classification) |
| Target Counting | Line crossing human/motor vehicle/non-motor vehicle counting |
| Exception Detection | Scene change, video blur and video color cast detection |
| Face Detection | Face detection and face capture |
| General Intelligence | Crowd density detection, heat map, object abandoned/missing detection |
| Interfaces | |
| Network | RJ45 |
| Video Output | CVBS output (BNC ×1) |
| Audio I/O | 1CH audio input; 1CH audio output |
| Storage | Built-in micro SD card slot; up to 256GB /512GB OPTINAL |
| Reset | Yes |
| Alarm | 1CH alarm input; 1CH alarm output |
| Functions | |
| Remote Monitoring | Web browsing, CMS, remote control |
| Online Connection | Support simultaneous monitoring for up to 10 users; support multi-stream real time transmission |
| Network Protocol | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP V2/V3, ICMP,ICMPV6,,ARP,DHCP, PPPoE |
| Network Interface | 1×10/100 Base T,TX POE (RJ-45) |
| Interface Protocol | ONVIF Profile S, G, T, API, support SDK and third-party management platform |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection; sensor alarm; SD card error; SD card full; IP conflict; network disconnection |
| General Function | Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction, NR, etc. |
| PoE | Yes |
| IR Distance | 50 ~ 70 m /80M OPTINAL |
| Ingress Protection | IP67 |
| Others | |
| Power Supply | DC12V / PoE |
| Power Consumption | ≤ 9.5 W |
| Operating Environment | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | Less than 95% (non-condensing) |
| Dimensions (mm) | 279.5 × 100.3 × 88.9 |
| Weight (net) | Approx. 1.04 kg |

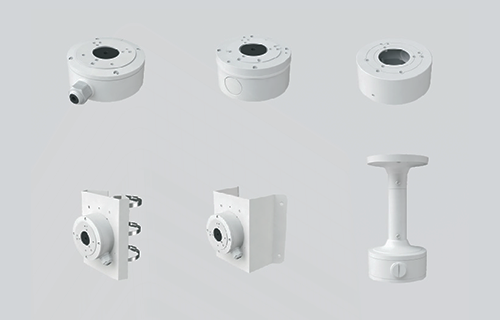

| Installation | Ceiling mounting / Wall mounting |
| Certificate | CE, FCC |
| Environmental Protection | Complies with Directive 2012/19/EU (WEEE), 94/62/EC and REACH (EC1907/2006) |
