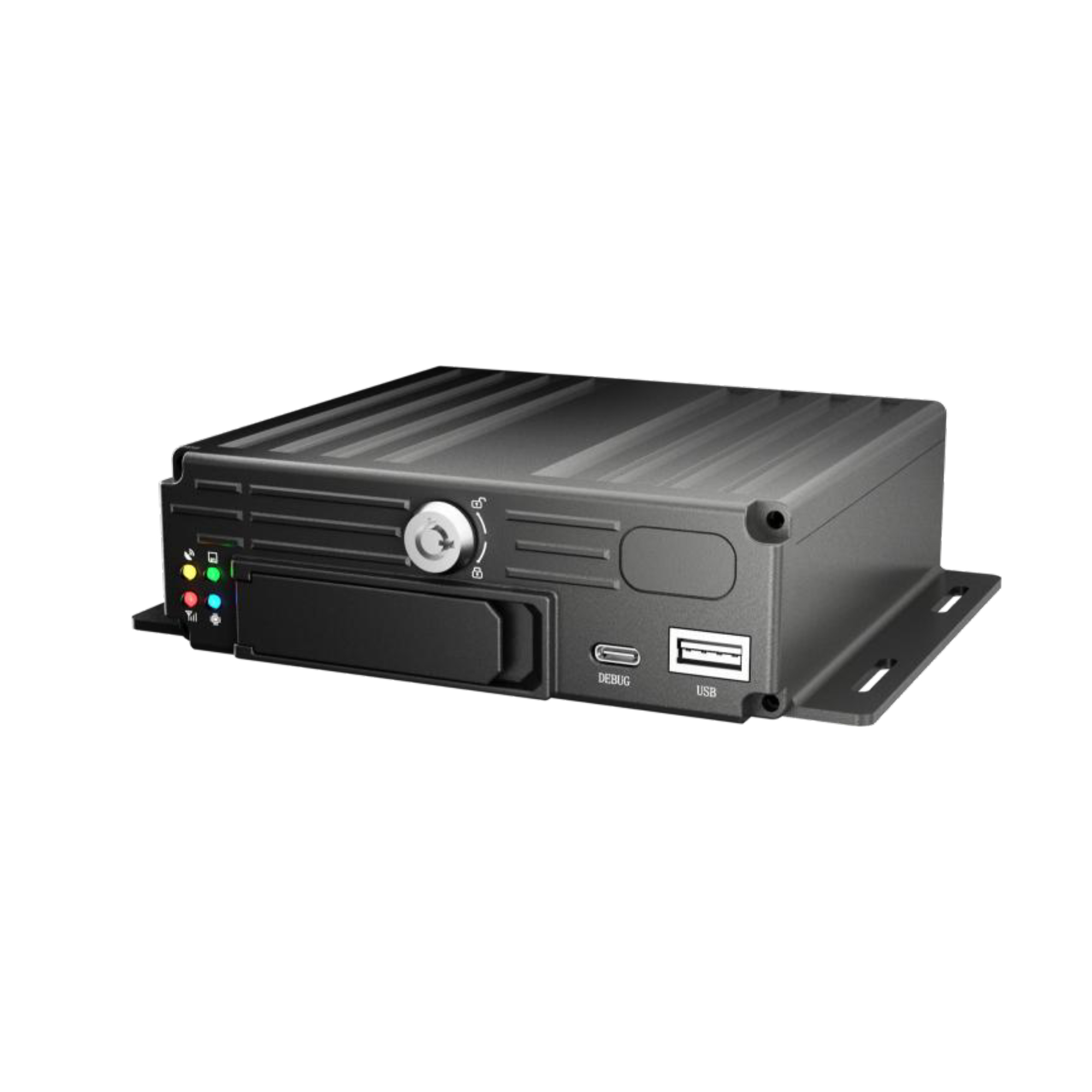

ZTC-MD
ZTC-MD
This Product supports
- 4-Channel Videos
- ADAS & DMS & BSD
- 2G, 3G, 4G
- GNSS: GPS/ GALILEO/ BeiDou/ GLONASS
- LoRa (optional)
- Configurator and FOTA WEB
| Technical | |
|---|---|
| OS | Linux |
| AI Computing Power | 2.0TOPS NPU |
| Intelligent Algorithms | ADAS/ DMS/ BSD |
| Video | |
| Multi-Channel Recording | • 4 Channels @ 4x1080p or 720p （Support multiple connections） • H.265 & H.264 encoding |
| GNSS &Cellular | |
| Cellular | • 2G/ 3G/ 4G CAT.4 B71 (NA) • LTE: B1/ B3/ B5/ B7/ B8/ B20/ B28/B38/ B40/ B41 (EU & Asia) • LTE: B1/ B2/ B3/ B4/ B5/ B7/ B8/ B28/B66/ B40 (AU) |
| Positioning System | • GPS / GALILEO/ BeiDou / GLONASS |
| LoRa | • Support LoRa (optional) |
| Electrical Specification&Sensors | |
| Power & Consumption(Configure four external cameras) | • Input 9-36V DC • Standby：19.5mA@12V • Full-load：1041mA@12V |
| Built-in Battery | • Supercapacitor |
| Environmental Tolerance | • Operating temperature: -30℃ to 80℃ • Storage temperature: -40℃ to 85℃. |
| Acceleration Sensor | • 3-axis G-sensor |
| Audio(input) | • 5- channel audio , AV3, AV4, MIC, ADAS, DMS |
| Audio(output) | • Speaker （8Ω/2W） |
| Physical & Interface Specifications | |
| I/O | • Input: VIN/ ACC/ SOS/ ADC1/ ADC2/ Left turn/ Right turn/ Custom High1/ Custom High2/ Custom Low/ One wire communication (1-WIRE) /GND/ Brake/ Door sensors • Output: 5V/ Custom output low/ Cut off fuel circuit • RS-485 (485A/ 485B/ 5V/ GND) |
| Device Interfaces | • SIM card slot (nano SIM) • Power connector • Type-C debug port • SD card slot *2 (32GB~512GB) Above CLASS 10 • AHD camera port *2 • ADAS camera port • DMS camera port • RS232 port • TTS speaker port |
| Dimensions | • L 161* W 124.8* H 41mm |
| Weight | • 558g |
| LED*4 | • Red/ Yellow/ Green/ Blue |
| AI | |
| ADAS | • Forward Collision Warning (FCW) • Pedestrian Collision Warning (PCW) • Lane Departure Warning (LDW) • Following Distance Alert • Speeding Alert • Harsh Braking Alert • Harsh Acceleration Alert • Harsh Turning Alert • Collision Warning |
| DMS | • Distracted Driving • Drowsiness Alert (Close eyes &Yawn) • Cell Phone Use Alert • Seat belt Alert • Camera Obstruction Alert • Smoking Alert • Driver Detection Alert • Camera Obstruction |
| BSD | • Rear Blind Spot Detection (RBSD) • Left Blind Spot Detection (LBSD) • Right Blind Spot Detection (RBSD) • Front Blind Spot Detection (FBSD) |
| Regulatory Compliance | |
| Certification | CE, FCC |
| Product Name | AI MDVR |
| Product Code | ED02R-V2 |
