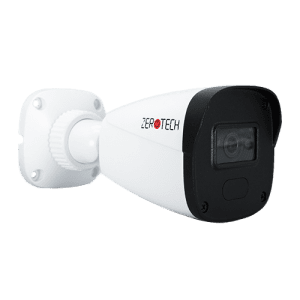

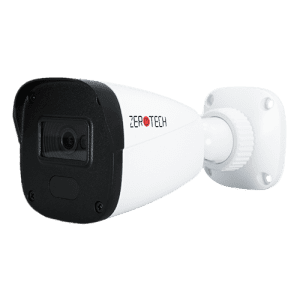

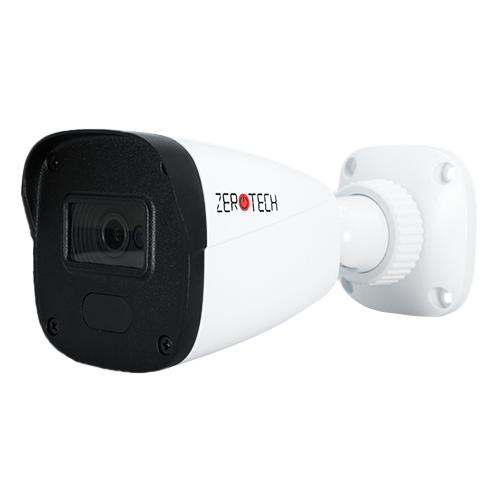

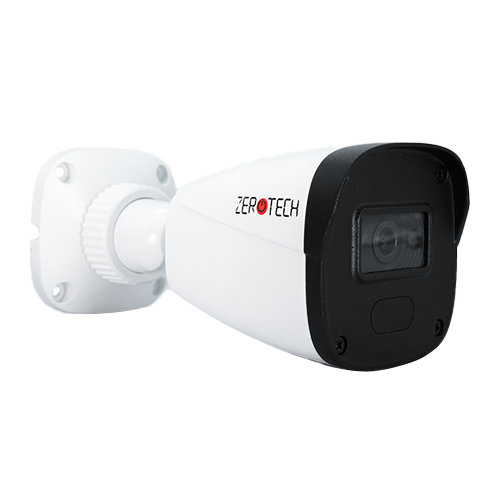

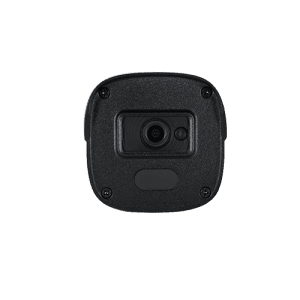

ZTXB-EG5M
ZTXB-EG5M
- 5MP@20fps/4MP@30fps image, high resolution, true color
- HD / TVI / CVI/CVBS standard and lossless video output
- CMOS progressive scan, perfectly capture the moving object
- Starlight, WDR, 3D DNR
- Support OSD menu
- High speed, long distance and real time transmission
- Auto color to B / W at low illumination
- 10 ~ 20m IR night view distance
- Up to 50m IR night view distance
- IP67 ingress protection
- Support COC
- Support ICR switch, true day / night
- Support coaxial audio transmission
| Model Specifications | ZTXB-EG5M |
|---|---|
| Camera | |
| Image Sensor | 1 / 2.5 “CMOS |
| Resolution | 5MP |
| Image Size | 2560 x 1936 |
| Video Output | AHD / TVI /CVI |
| Image System | PAL / NTSC |
| Electronic Shutter | Auto |
| IR Distance | 10 ~20 m |
| Frame Rate | 5MP@20fps/4MP@30fps |
| Min. Illumination | Color: 0.01lux@F1.2, AGC ON; B/W: 0 lux with IR |
| Lens | 3.6 mm |
| Lens Mount | M12 |
| S / N Ratio | ≥52dB ( AGC OFF ) |
| Ingress Protection | IP67 |
| Functions | |
|---|---|
| Function Control | OSD ( COC Control ) |
| Day & Night | ICR |
| Digital WDR | Yes |
| Digital NR | Yes, 2D DNR |
| Global Exposure | Yes |
| Central Exposure | No |
| AGC | Yes |
| Auto White Balance | Yes |
| BLC | Yes |
| Front Light Compensation | No |
| Contrast | Yes |
| Sharpness | Yes |
| Smart IR | No |
| Image Setting | Yes |
| Defect Correction | Auto |
| Language | Chinese and English |
| Angle Adjustment | Pan: 0°~360°; Tilt: 0°~80°; Rotation: 0°~360° |
| Others | |
|---|---|
| Power Supply | DC12V ( ± 15% ) |
| Power Consumption | IR OFF : < 1W; IR ON : < 3W |
| Working Environment | – 10 °C ~ 40 °C, 10 % ~ 90 % (relative humidity) |
| Dimensions ( mm ) | 162.1x 74.8 x 73.8 |
