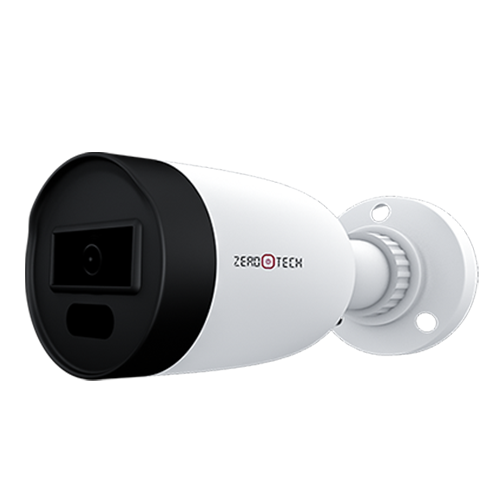

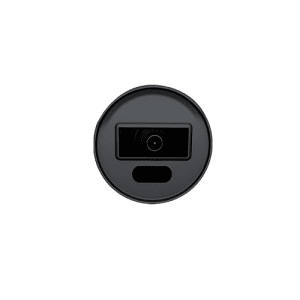

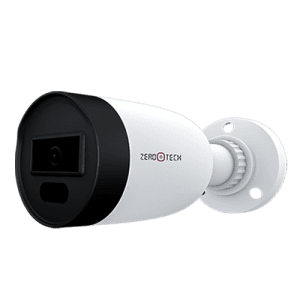

ZTX-EG2002-DL
ZTX-EG2002-DL
- 1080P real-time image, high resolution, true color
- AHD / TVI / CVI standard and lossless video output
- Up to 1000 TVL resolution
- CMOS progressive scan, perfectly capture the moving object
- Support OSD menu
- High speed, long distance and real time transmission
- 10 ~ 20m IR view distance; up to 10m white light view distance
- IP67 ingress protection
- Support COC
- Support coaxial audio transmission (Temporarily only valid in TVI signal mode)
- Support 960H CVBS output
| Model Specifications | ZTX-EG2002-DL |
|---|---|
| Camera | |
| Image Sensor | 1 / 3 “CMOS |
| Resolution | 2MP |
| Image Size | 1920 x 1080 |
| Video Output | AHD / TVI /CVI/CVBS |
| Audio | 1CH built-in MIC |
| Image System | PAL / NTSC |
| Electronic Shutter | Auto |
| View Distance | IR range: 10 ~20 m; White light range: up to 10m |
| Frame Rate | TVI:2MP@25/30fps AHD:2MP@25/30fps CVI:2MP@25/30fps CVBS:PAL/NSTC |
| Min. Illumination | 0.005lux @F1.2, AGC ON; 0 lux ( LED ON) |
| Lens | 2.8 mm |
| Lens Mount | M12 |
| S / N Ratio | ≥52dB ( AGC OFF ) |
| Ingress Protection | IP 67 |
| Functions | |
| Function Control | OSD ( COC Control ) |
| Digital WDR | Yes |
| Digital NR | Yes, 2D DNR(3D, only used with zerotech’S DVRs) |
| AGC | Yes |
| Auto White Balance | Yes |
| BLC | Yes |
| Contrast | Yes |
| Saturation/Color Gain | Yes |
| Sharpness | Yes |
| Image Setting | Yes |
| Defect Correction | Auto |
| Language | Chinese and English |
| Angle Adjustment | Pan: 0°~360°; Tilt: 0°~80°; Rotation: 0°~360° |
| Others | |
| Power Supply | DC12V ( ± 10% ) |
| Power Consumption | LED OFF : < 1W; LED ON : < 3W |
| Working Environment | – 30 °C ~ 50 °C, 10 % ~ 90 %（relative humidity） |
| Dimensions ( mm ) | Ф 65 x 144 |
| Weight ( net ) | Approx. 0.15KG |
