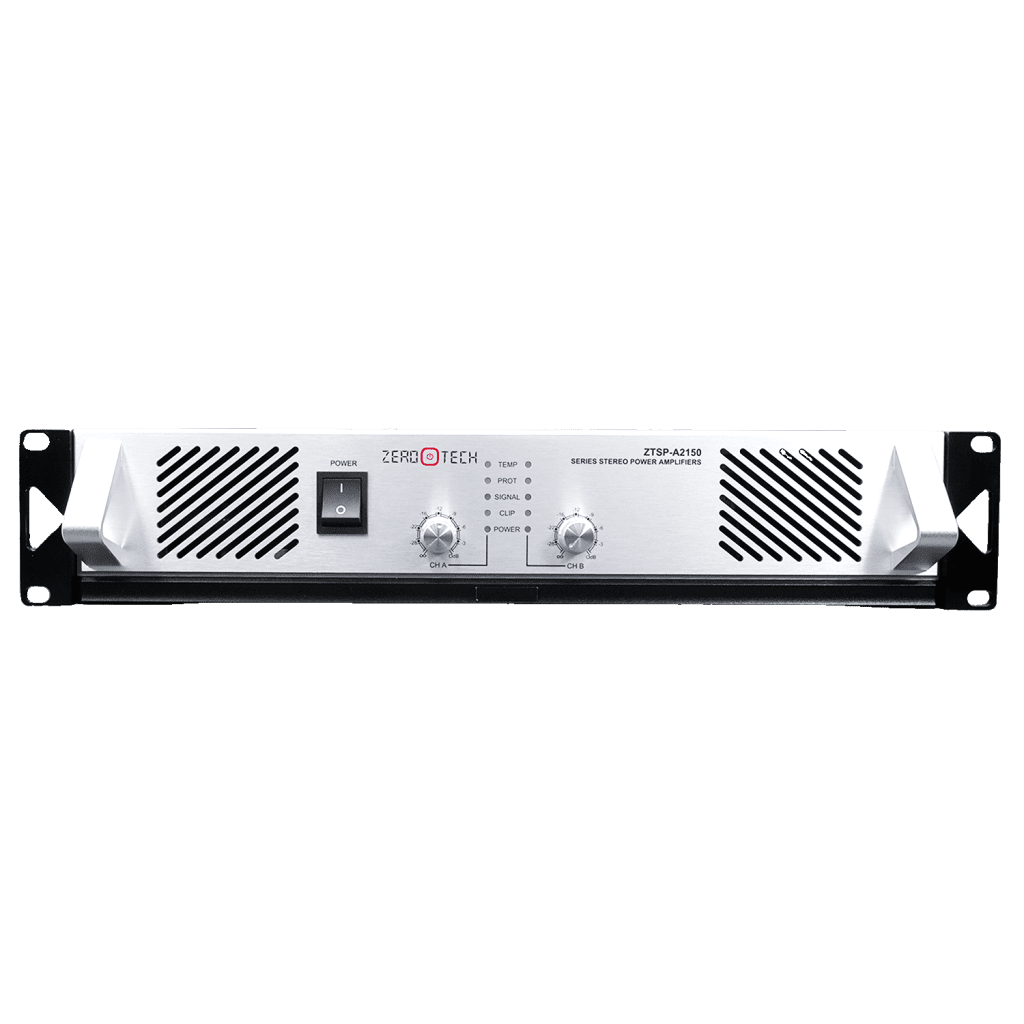

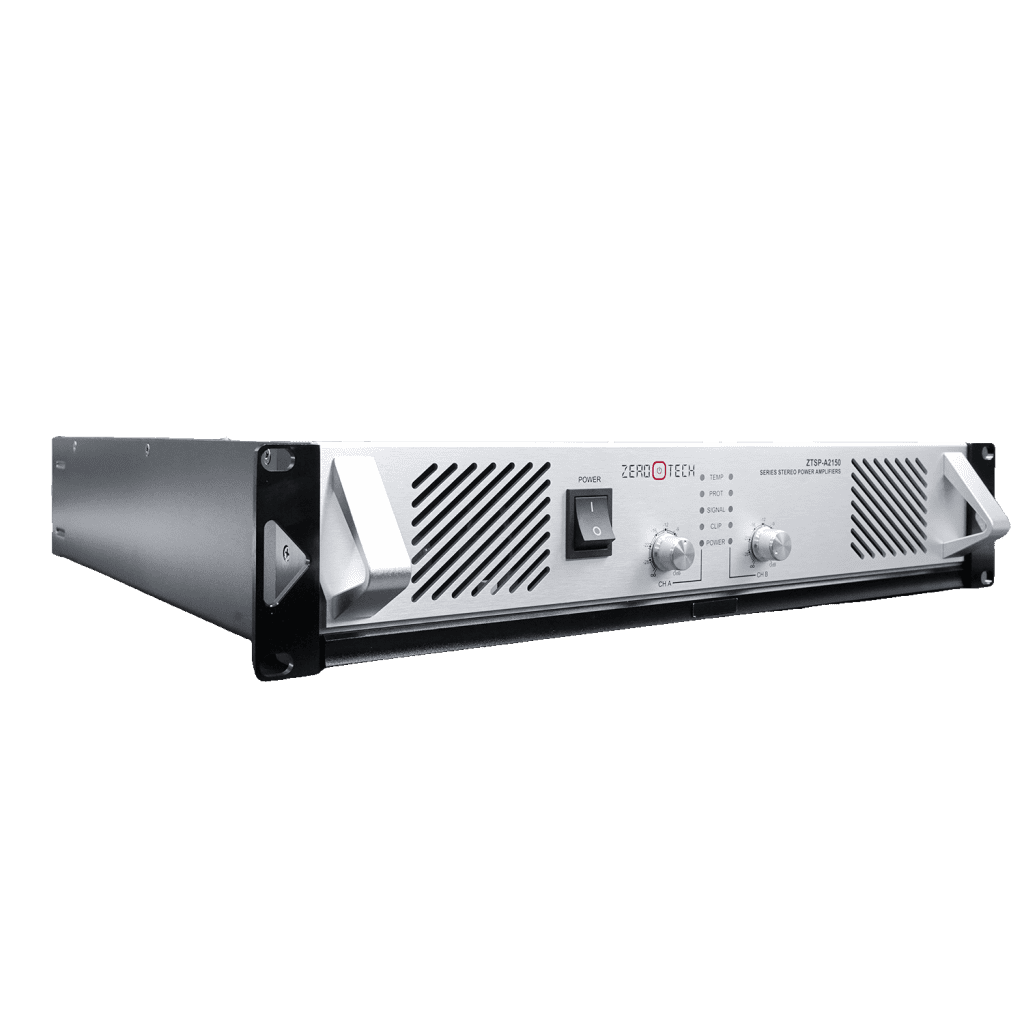

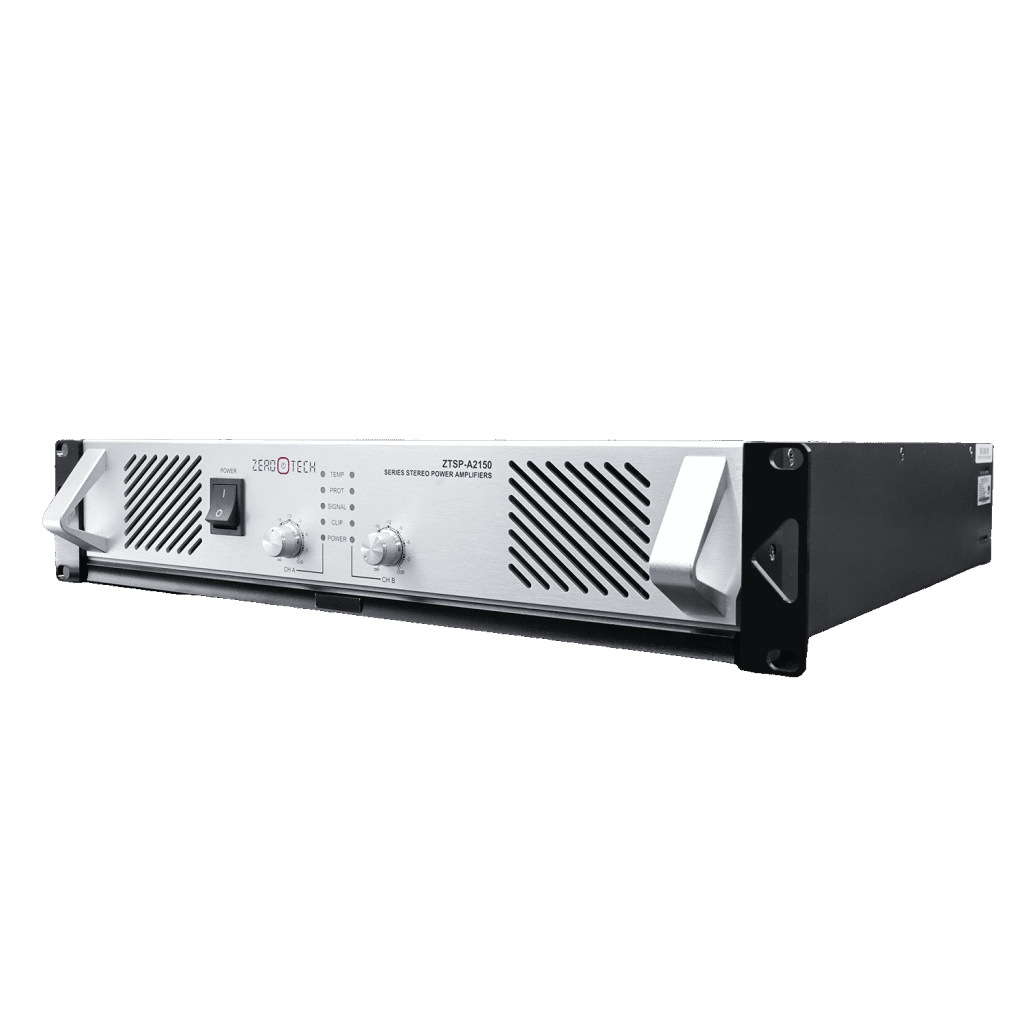

ZTSP-A2150
ZTSP-A2150
Features
- Professional two-channel stereo power amplifier
- New design, standard chassis, suitable for standard cabinet installation
- A series of high-power amplifier arbitrary choice to meet the different needs
- Individual volume control for each channel
- 4Ω minimum load impedance of stereo working, 8Ωload impedance the minimum of BTL working

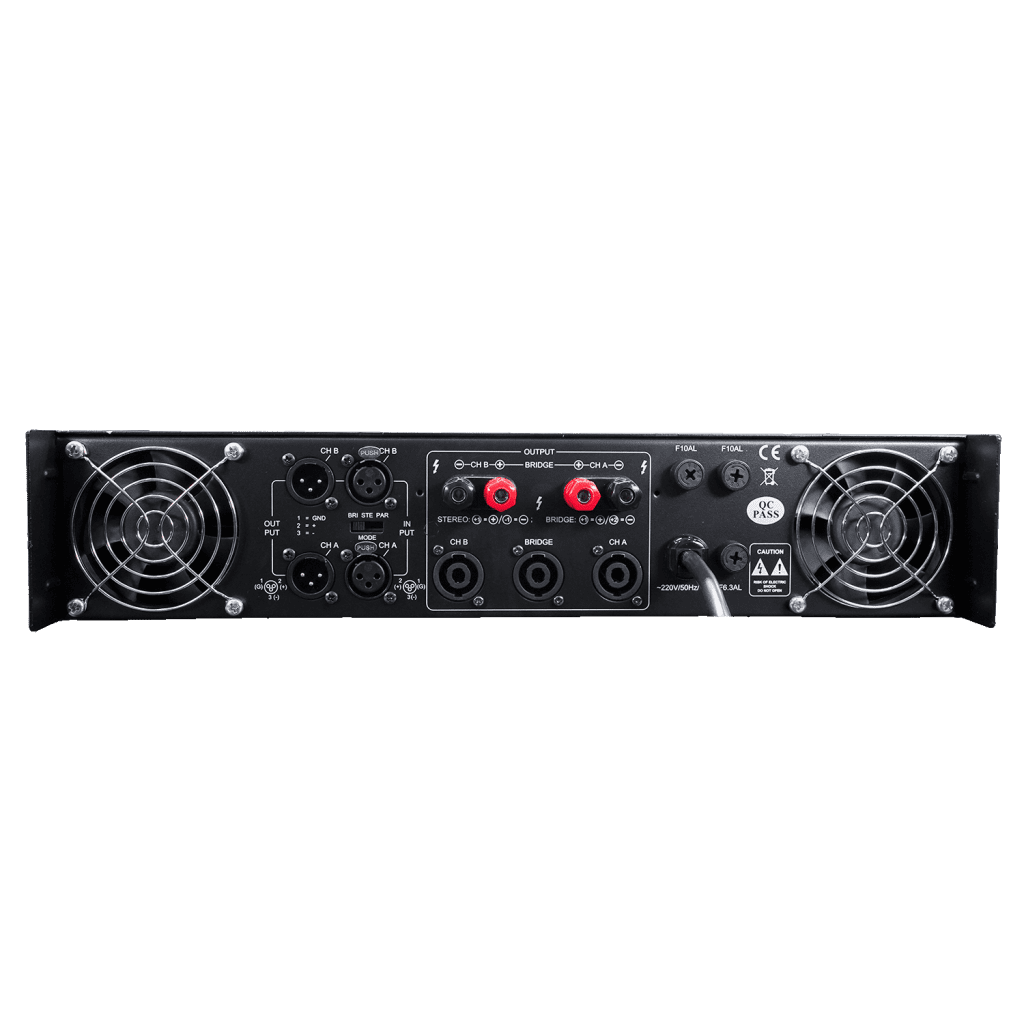

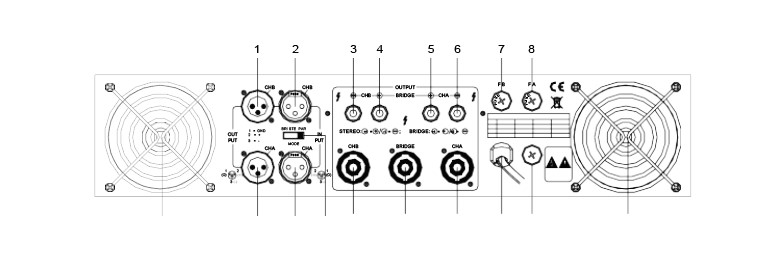

- With XLR signal output interface, flexible and convenient to use
- Each channel is equipped with LED working status indication, low noise design
- Suitable for a variety of different occasions, language transmission and sound reinforcement.
| Model | ZTSP-A2150 |
|---|---|
| Rated Output / Per Channel, 8Ω | 150W |
| Rated Output / Per Channel, 4Ω | 250W |
| Rated Output / Bridge, 8Ω | 500W |
| Input Sensitivity | 600mV |
| SNR | ≥100dB |
| Damping Coefficient/8Ω,1kHz | 200:1 |
| Input Common-Mode Rejection | 90dB |
| Frequency Response | 20Hz-20kHz（ ±3dB） |
| Harmonic Distortion Factor4Ω/1kHz | < 0.1% |
| Channel Impedance | 4-16Ω |
| Channel Crosstalk | <-70dB |
| Voltage Gain | > 38dB |
| Display | “POWER”, “CLIP”, “SIGNAL”, “DC”, “TEMP” and other LED indicators |
| Power Supply | AC220V/50Hz |
| Protection | Power Off, DC Output, Load Short Circuit |
| Product Size (mm) | （ L×W×H） 484×446×88 (2U) |
| Package Size (mm) | （ L×W×H） 535×530×195 |
| G/W | 17.2 kg |
| N/W | 15.2kg |
