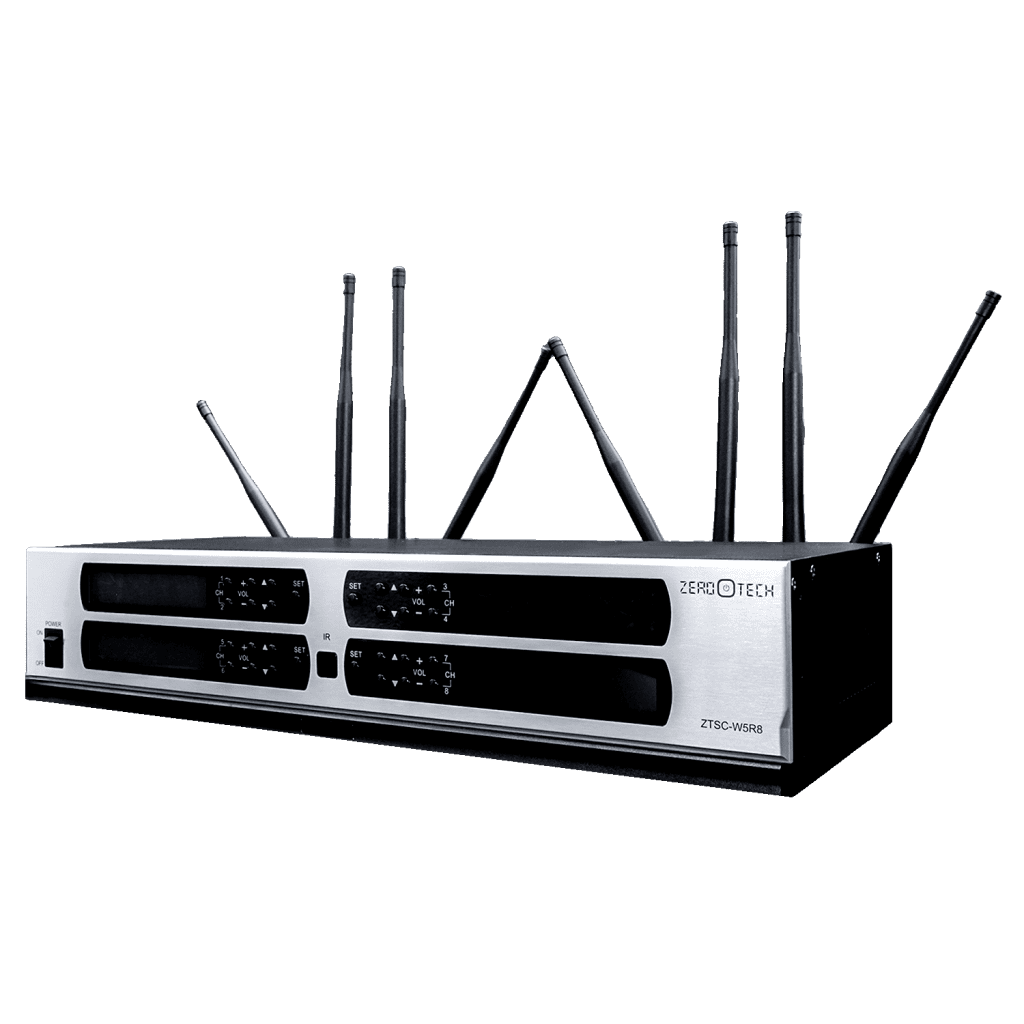

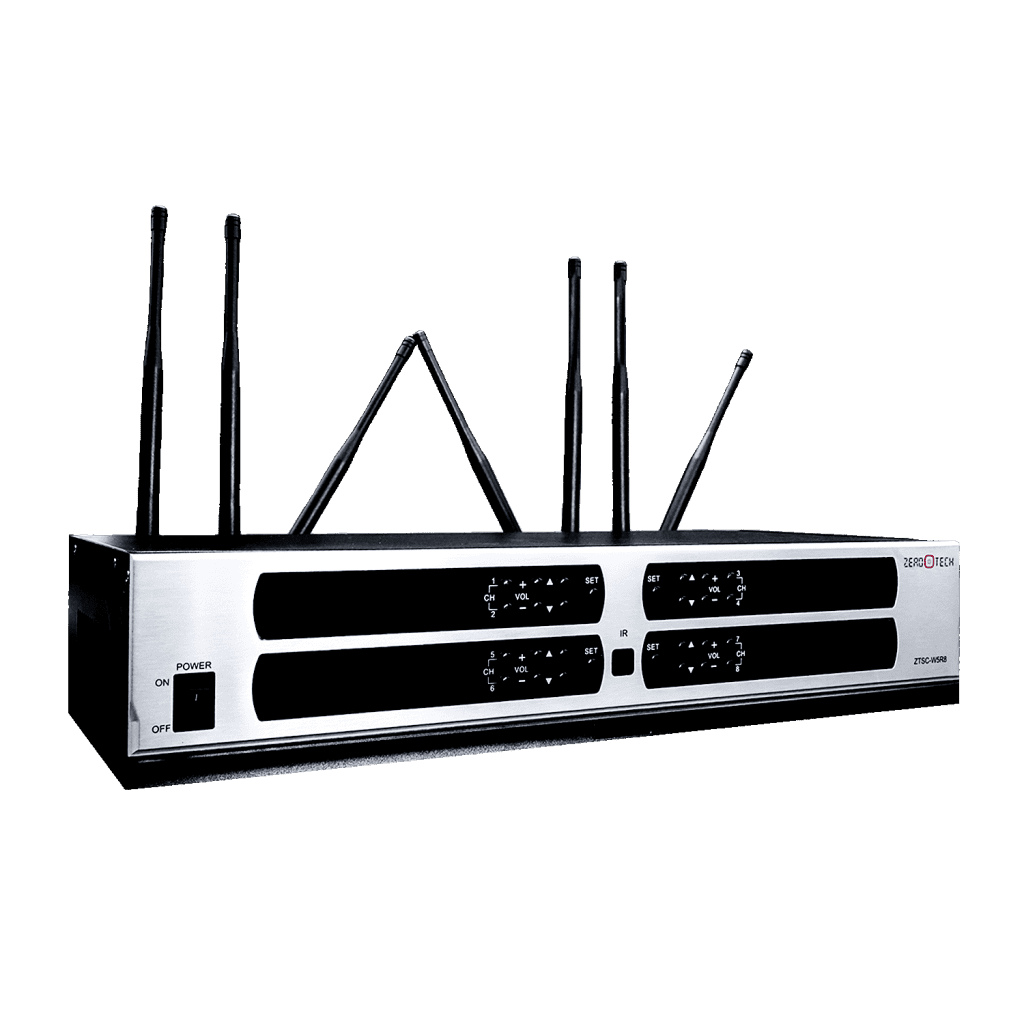

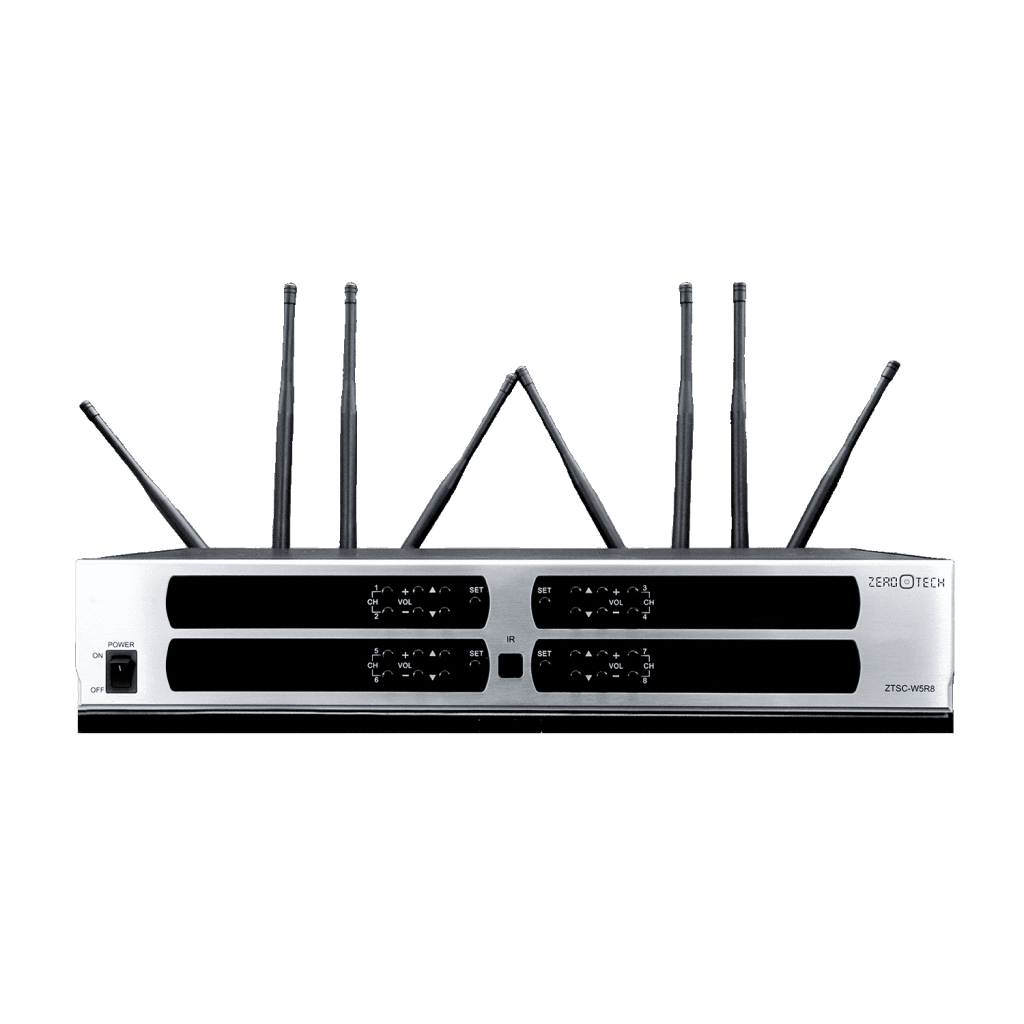

ZTSC-W5R8
ZTSC-W5R8
Features
- Dual channel PLL phase-locked loop design.
- UHF200 channel PLL digital lock automatic communication function.
- Using infrared frequency pairing.
- With volume adjustment per channel.
- With a display screen (to display the frequency, channel,squelch, and electrical level).

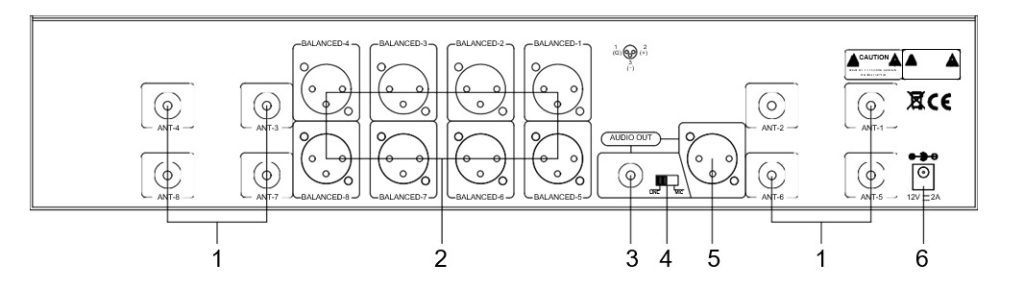

- AF output (separate output with the “XLR” connector, and mixed output with the
- “XLR” connector and microphone jack).
| Model | ZTSC-W5R8 | |
|---|---|---|
| Frequency Range | 632-695.25MHz | |
| Modulation Mode | Wideband FM | |
| Adjustable Range | 60MHz | |
| Number of Channels | 200 | |
| Channel Interval | 250KHz | |
| Frequency Stability | Within ±0.005% | |
| Dynamic Range | 88dB | |
| Maximum Frequency Deviatio | 45KHz | |
| Audio Response | 120Hz-16KHz (±3dB) | |
| Comprehensive S/N Ratio | >73dB | |
| Comprehensive Distortion | ≤1% | |
| Operating Temperature | -10°C – +40°C | |
| Effective Range | 150-200m (in open environment) | |
| Package Dimensions (L×W×H) | 530×335×330mm | |
| Receiver | Wireless Connector | BNC/50Ω |
| Sensitivity | ≤-95dBm | |
| Spurious Suppression | ≥75dB | |
| Function Display Mode | Display screen | |
| Operating Power | DC12V, 600mA | |
| Package Dimensions (L×W×H) | 530×335×145mm | |
| Machine Dimensions | 430×176×88mm | |
| Gross Weight | 5.2kg | |
| Net Weight | 3.3kg |
