ZTSC-W5MHH
ZTSC-W5MHH
Features
- Adopt DPLL digital phase-locked loop multi-channel frequency synthesis technology.
- With display screen to display frequency, channel, squelch, level and others.
- With balanced and unbalanced output ports to adapt to different connection needs.
- With AF output, using “XLR” sockets for separate output and mixed output.
- Adopt infrared frequency pairing to easily and quickly synchronize the frequency of the
- transmitter and the receiver.
- Adopt UHF ultra-high frequency and true diversity reception to effectively avoid frequency
- loss and extend reception distance.
- With built-in network audio acquisition module, which can realize wireless microphone
- audio signal network transmission.
| Model | ZTSC-W5MHH | |
|---|---|---|
| Frequency Range | 632-661.25MHz | |
| Number of Channels | 100 | |
| Stepped Frequency | 250KHz | |
| Frequency Stability | Within ±0.005% | |
| Dynamic Range | 88dB | |
| Maximum Frequency Deviation | ±48KHz | |
| Audio Frequency Response | 125Hz-15KHz(±3dB) | |
| SNR | ＞70dB | |
| Distortion | ≤1% | |
| Working Temperature | -10℃－+40℃ | |
| Effective Range | 150-300m (in open environment) | |
| Package Dimensions (L×W×H) | 530×335×330mm | |
| Wireless Interface | BNC/50Ω | |
| Sensitivity | -100dBm | |
| Spur Suppression | ≥75dB | |
| Receiver | Display Method | Display Screen |
| Working Power | DC12V ,600mA | |
| Package Dimensions (L×W×H) | 530×335×100mm | |
| Machine Dimensions | 430×176×44mm | |
| Gross Weight | 3.9kg | |
| Net Weight | 2.3kg | |
| Transmitter | Antenna Method | 1/4 wave whip antenna for the waistband transmitter, and built-in onboard antenna for the handheld microphone. |
| Output Power | High power 14dBm; low power 6dBm | |
| Spur Suppression | -60dB | |
| Power Supply | 2 AA 1.5V alkaline batteries | |
| Endurance | More than 10 hours at 14dBm; more than 15 hours at 6dBm. |
|
| Function Display Method | Display Screen | |

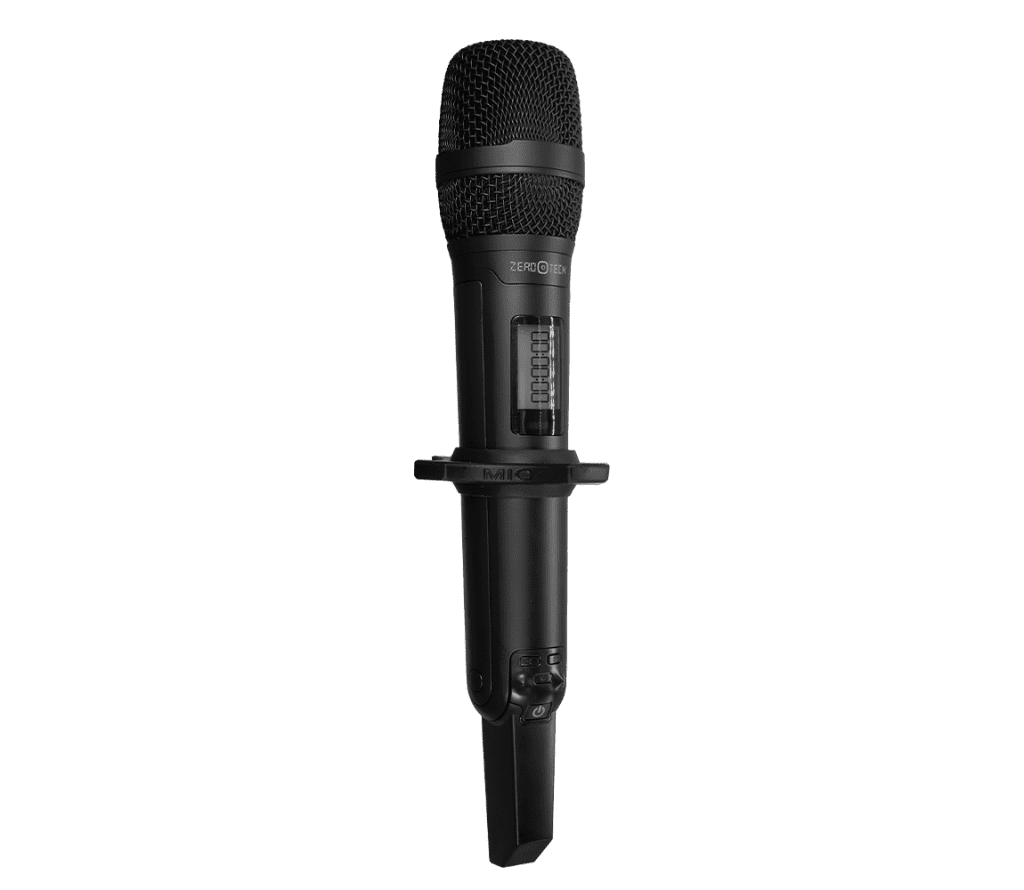

| Handheld MIC Dimensions | 265×∅ 50mm | |
| Remote MIC Dimensions | 268×∅ 51.5mm | |
| Handheld MIC Net Weight | 0.45kg | |
| Remote MIC Net Weight | 0.35kg |
