ZTSC-W5MC
ZTSC-W5MC
Features
- 4-channel PLL design.
- UHF200 channel PLL digital lock automatic communication function.
- Adopt IR frequency pairing.
- With display screen (to display frequency, channel, squelch, level, etc.).
- With volume control for each channel.
- AF output (using “XLR” sockets for separate output and mixed output).
| Model | ZTSC-W5MC | |
|---|---|---|
| Frequency Range | 632-695.25MHz | |
| Modulation Mode | Broadband FM | |
| Adjustable Range | 60MHz | |
| Number of Channels | 200 | |
| Channel Interval | 250KHz | |
| Frequency Stability | Within ±0.005% | |
| Dynamic Range | 88dB | |
| Maximum Frequency Deviation | ±45KHz | |
| Audio Frequency Response | 120Hz-16KHz (±3dB) | |
| SNR | >73dB | |
| Distortion | ≤1% | |
| Working Temperature | -10℃－+40℃ | |
| Effective Range | 150-200m (in open environment) | |
| Package Dimensions (L×W×H) | 530×335×220mm | |
| Wireless Interface | BNC/50Ω | |
| Sensitivity | -100dBm | |
| Spur Suppression | ≥75dB | |
| Receiver | Display Method | Display Screen |
| Working Power | DC12V ,600mA | |
| Package Dimensions (L×W×H) | 530×335×100mm | |
| Machine Dimensions | 430×176×44mm | |
| Gross Weight | 3.9kg | |
| Net Weight | 2.3kg | |
| Transmitter | Antenna Method | 1/4 wave whip antenna for the waistband transmitter, and built-in onboard antenna for the handheld microphone. |
| Output Power | High power 14dBm; low power 6dBm | |
| Spur Suppression | -60dB | |
| Power Supply | 2 AA 1.5V alkaline batteries | |
| Endurance | More than 10 hours at 14dBm; more than 15 hours at 6dBm. |
|
| Desktop MIC Rod Length | 420mm | |
| Display Method | Display Screen | |
| Handheld MIC Dimensions (Maximum Diameter × Length) | ∅ 50×265mm ∅ 34~38mm) (Handheld part diameter |
|

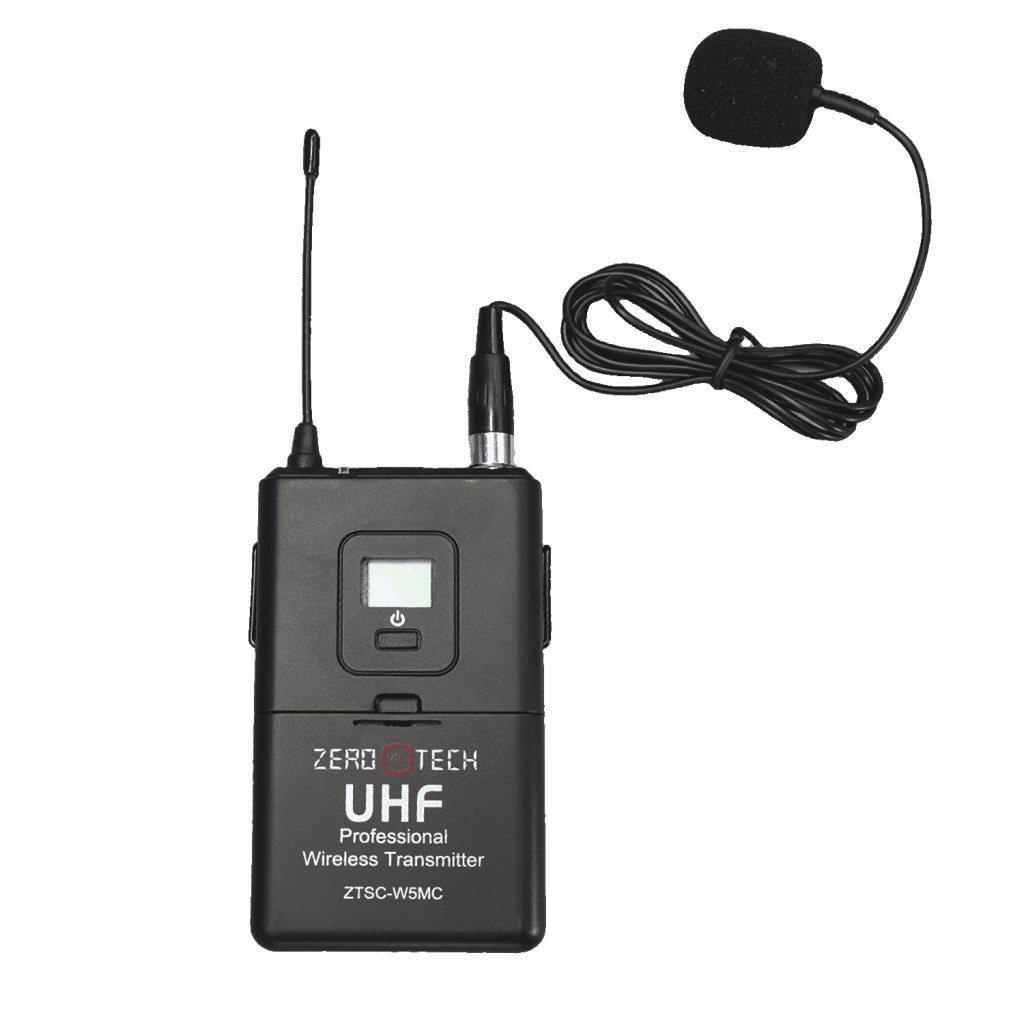

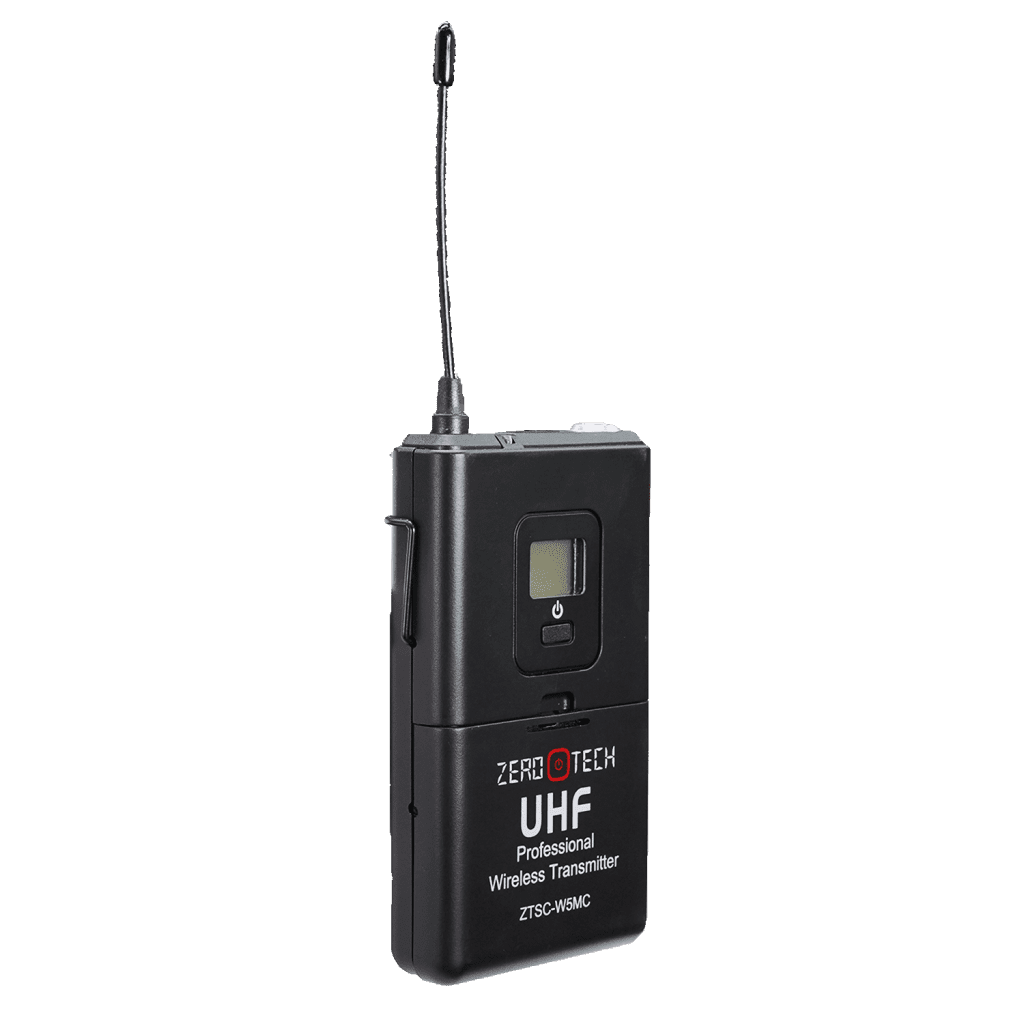

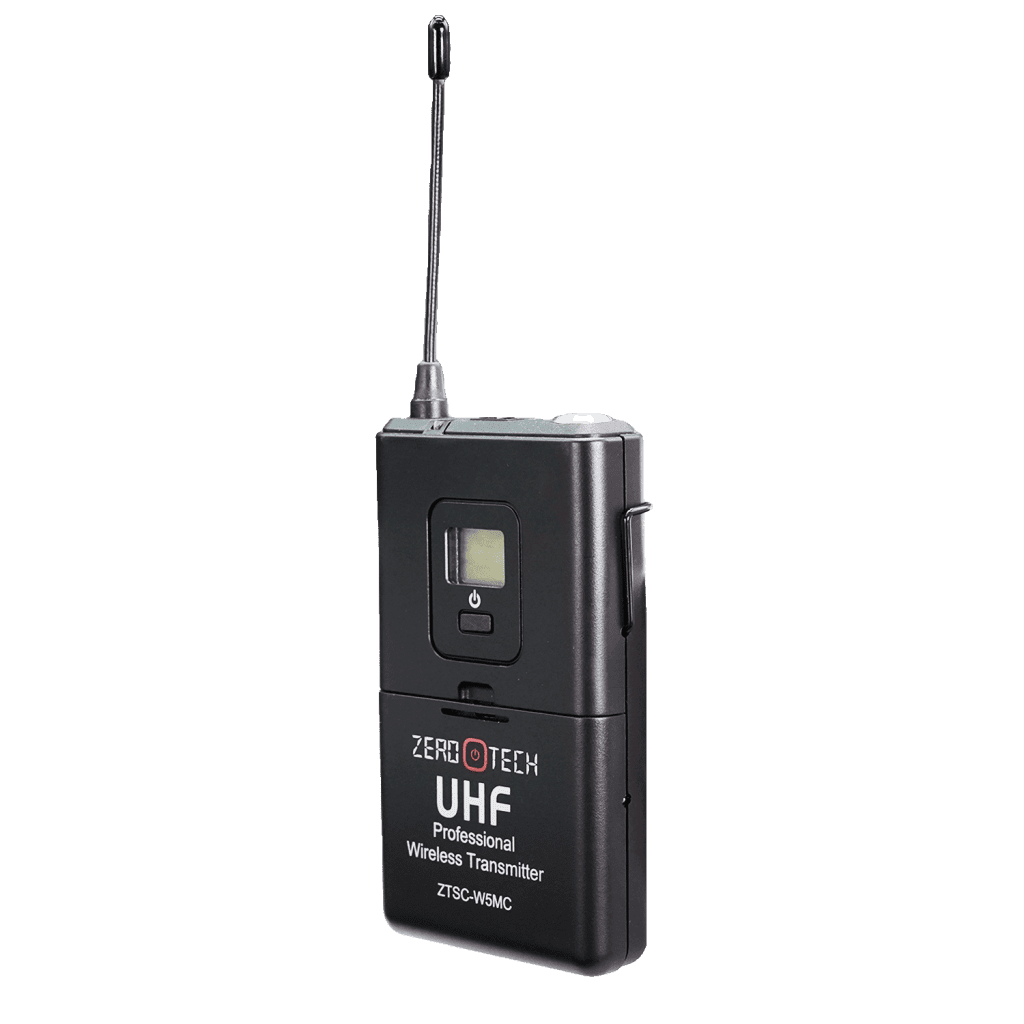

| Waistband Transmitter Dimensions | 110×64×25mm (excluding antenna length, 80mm more if included) | |
| Net Weight of Desktop MIC | 151×100×55mm | |
| Net Weight of Handheld MIC | 0.45kg | |
| Net Weight of Waistband | 0.45kg | |
| Transmitter | 0.1kg |
