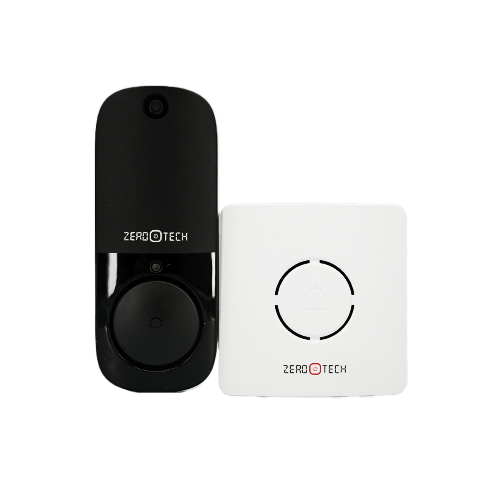

ZTS-PHDB-C
ZTS-PHDB-C
- Simple setup
- Removable batteries
- IP44 rating
- 60°wide angle HD camera
- 60°wide PIR detection range
- Low power consumption 2.4GHz WiFi doorbell camera
- PIR High/Medium/Low sensitivity settings
- Built-in algorithm and special structure design ensures pet immunity function
- 433MHz indoor chime can be connecte
| Model | ZTS-PHDB-C |
|---|---|

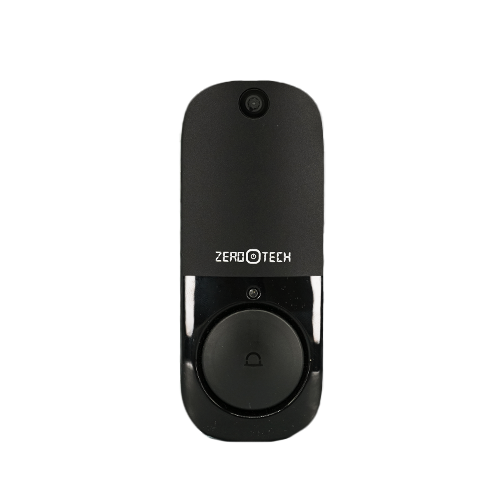

| Doorbell Camera | |
| Battery DC | 4.5V AA/LR6*3 |
| Standby current | 45uA |
| Wireless frequency | 2.4GHz+433MHz |
| Wireless distance | ≤80m(Open area) |
| PIR angle | ≈60° |
| Camera viewing Angle | ≈60° |
| Camera pixel | 0.3 MP |
| PIR motion detection range | 3m/2m/1m |
| Photo-stitch length | 2S |
| Photo-stitch amount | 10 PCS |
| Waterproof rating | IP44 |
| Operating Temperature | -10°C~50°C |
| Relative humidity | <90% at 40°C |
| Dimension (W*H*D) | 50.7*126.1*19.5 mm |

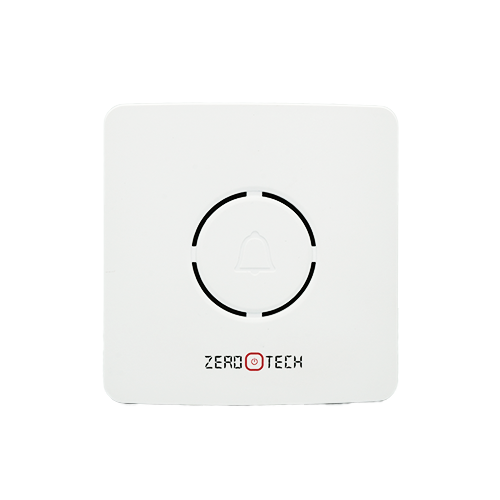

| Chime | |
| Battery DC | 4.5V AA/LR6*3 |
| Standby average current | ＜200uA |
| Operating average current | ＜100mA |
| Volume (30cm) | Low： 60-70dB Medium： 70-80dB High： 80-90dB |
| Demodulation | OOK |
| Wireless frequency | 433.92MHz±250KHz |
| Wireless distance | 80m(Open area） |
| Receiving sensitivity | -115dBm |
| Operating temperature | -10~50°C |
| Dimension | (W*H*D) 77.3*77.9*29 mm |
