ZeroTech

ZTPA-SM6W

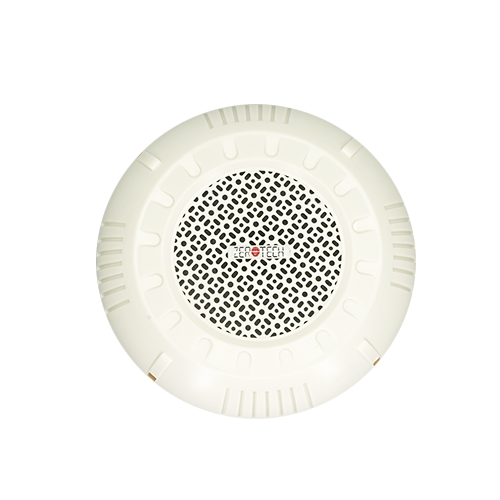

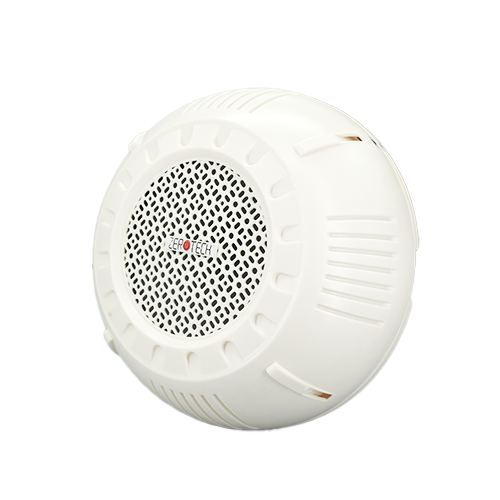

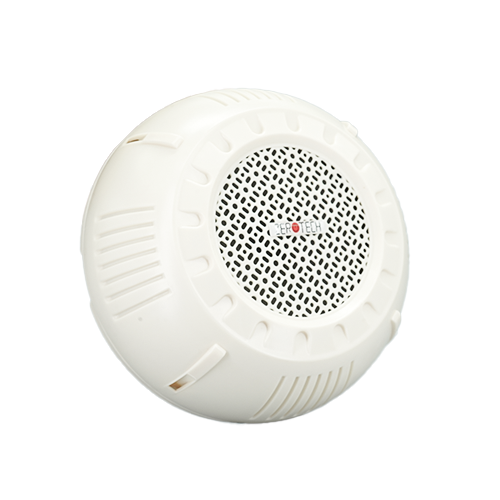

ZTPA-SM6W - 1.5W-10W ABS Ceiling Speaker

Features

Description

The ZTPA-SM6W is a surface mounted ceiling speaker with a 70v/100v transformer built in.
The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.
The built-in 4.5” speaker driver is designed of wide frequency response(300-14,000Hz), the multiple terminals 1.5W, 3W & 6W can be applied to different occasions vary in area sizes and background noises; It is made of high quality engineering plastic, with long-term durability, and will never be out of shape or fading; No roof cutout direct mounting on ceiling by 4 screws; waterproof, long life, with clear and sonorous sound.
It is an ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.

Model SpecificationsZTPA-SM6W
Full-range4.5” X 1
Rated Power1.5W
Max Power10W
Line Input70/100V
Sensitivity (1M,1W)91dB
Max SPL(1M)96dB
Freq. Response300-14,000Hz
Cutout Size
Dimensions (H x W x L)80 x Ø200mm
Weight0.8kg

ClassTitleLanguageTypeDownload
DatasheetZTPA-SM6WEnglishpdf
