ZeroTech

ZTPA-6WC

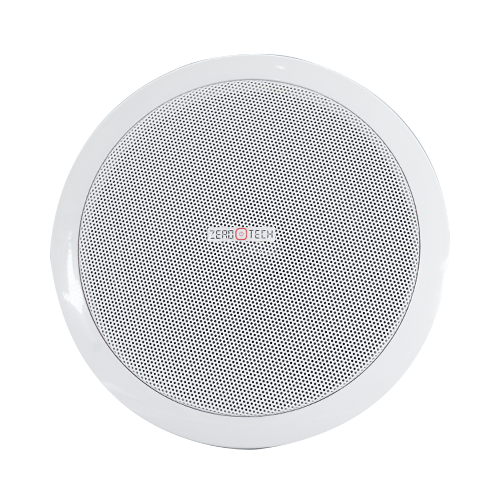

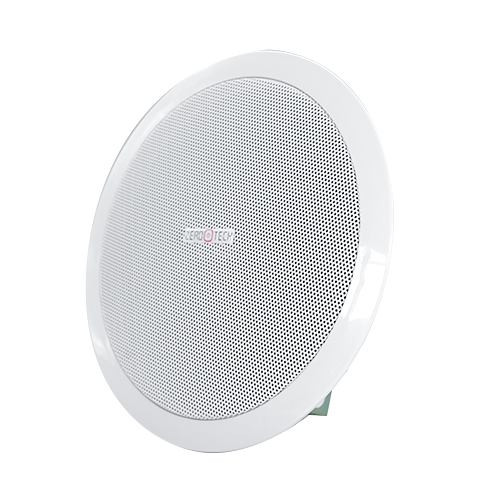

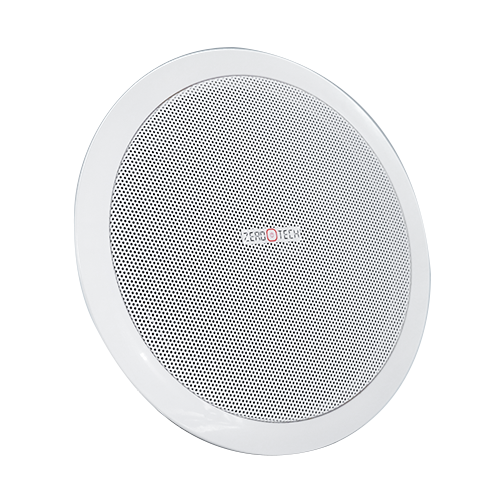

ZTPA-6WC - 6.5” ABS Ceiling Speaker with Transformer

Features

Description

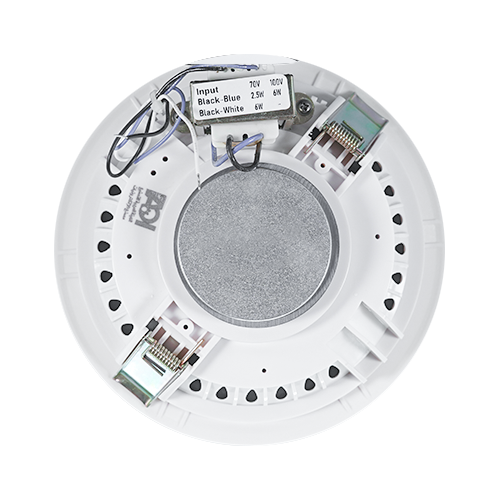

The ZTPA-6WC is a ceiling speaker with a 70v/100v transformer built in. The 70v/100v transmission is realized in a high-voltage, low current mode, which
makes longer distance transmission and parallel connection of multiple
loudspeakers possible.
The built-in 6.5” speaker driver is designed of wide frequency response 140-
18,000Hz, the multiple terminals 2.5W, 5W & 10W can be applied to different occasions vary in area sizes and background noises; It is made of high quality engineering plastic, which ensures long-term durability, and will never be out of shape or fading; Spring clip clamp makes the easy and secure installation; Driver surround excellent damping, long life, clear and sonorous sound.
It is an ideal choice for industrial and commercial applications in hotel, school, once and factory where background music and paging is needed.

Model SpecificationsZTPA-6WC
Speaker Unit6.5” X 1
Rated Power5W
Max Power8W
Line Input70/100V
Sensitivity (1M,1W)93±2dB
Max SPL(1M)98±2dB
Freq. Response140-18,000Hz
Cutout SizeØ165 – Ø170mm
Dimensions (H x W x L)70 – Ø186mm
Weight0.5 kg

ClassTitleLanguageTypeDownload
DatasheetZTPA-6WCEnglishpdf
