ZTPA-20W-MTIN
ZTPA-20W-MTIN
Features
- With wireless talkback and music control center

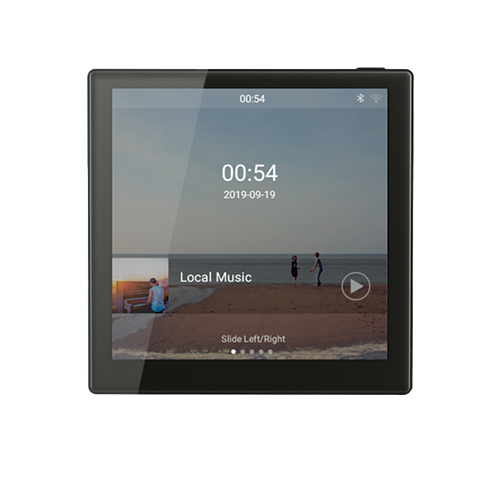

- Full screen design, 4-inch IPS LCD display screen, with superior screen ratio.
- Support WIFI connection, Bluetooth 5.0, power of 2×10W/8Ω.
- Abundant music modes: Local Music, Net Radio, a Third-party
- Music APP, BLUETOOTH, DLNA/Airplay wireless push, and AUX.
- Compatible with QQ Music, Kugou Music and other popular third-party music APPs.
- Can log in SIP account to access network paging/talkback.
- Support Micro SD card and USB flash disk.
- Support talkback and call for multiple
- Support RS485 control, AUX IN and OUT functions
- Support doorbell linkage.
| Model | ZTPA-20W-MTIN |
|---|---|
| Power Input | ~100-240V/50/60Hz |
| Output Power | 2 x 10W |
| Rated Resistance | 8Ω |
| THD | ≤0.1% (1KHz, 1W, 8Ω) |
| SNR | ＞81dB |
| Frequency response | 20Hz-20kHz |
| AUX IN Sensitvity | AUX: 1.0V / 500mV |
| Audio format | MP3M WMA, WAV, ACC, FLAC, APE, etc. |
| Bluetooth Input | BT5.0 |
| Control Interface | RS485 |
| Storage Interface | Micro SD card, Micro-USB |
| Package Dimensions | 375×155×190mm |

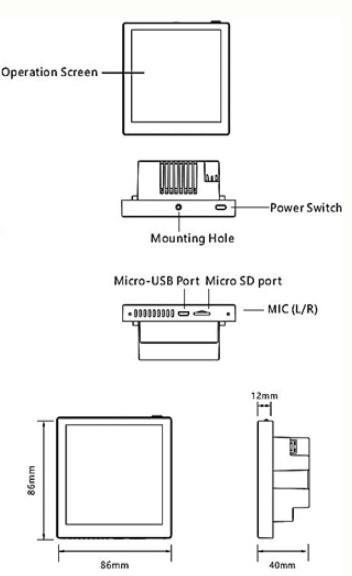

| Product Dimensions | 86×86×40mm |
| Gross Weight | 0.3kg |
| Net Weight | 0.16kg |
