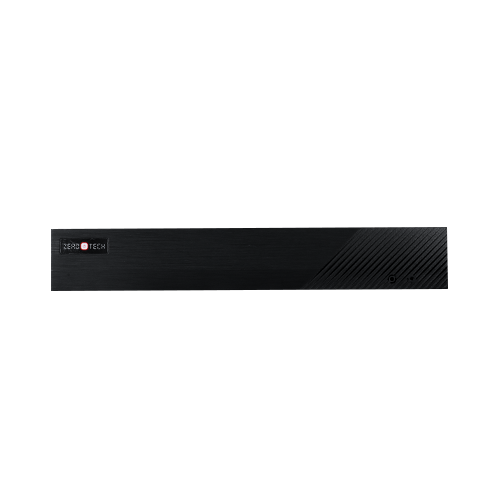

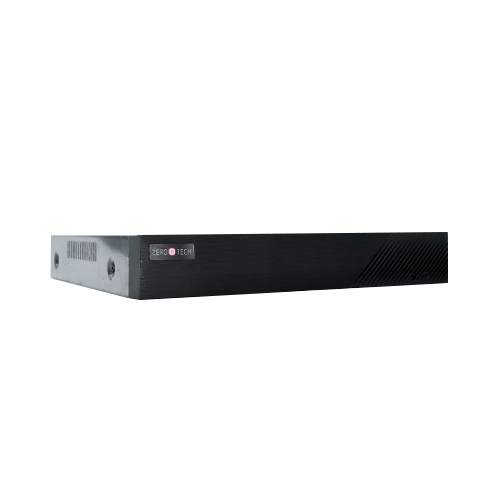

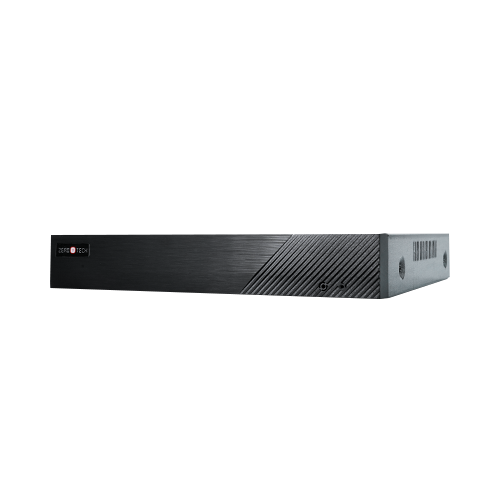

ZTNX-EG4CH6M
ZTNX-EG4CH6M
Features
- Support 4CH 6MP/5MP/4MP/3MP/1080P/ 1280×1024/ 960P/720P/960H/ DI/CIF IP video input
- H.265S/H.265+/H.265/H.264 coding
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-type recording: manual / timed / motion / sensor / POS / AI recording
- Playback : 4 CH simultaneous playback
- Search: time slice, time, event, tag and smart search
- Support POS information overlay on live view and playback
- Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
- Authorization management, log view and device status view 1080P HD output, true high resolution display
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Android OS
- DHCP, DDNS, PPPoE network protocol
-
- Vector Mouse Icon
| Model | ZTNX-EG4CH6M | ||
|---|---|---|---|
| System | OS | Embedded Linux | |
| Video | Network Input | 4 CH IPC input | |
| Network Input Resolution | 6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF | ||
| Output | HDMI × 1 : 1920 × 1080 / 1280 × 1024/ 1024 × 768 VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768 HDMI and VGA output the same video source | ||
| Compression | H.265S / H.265+ /H.265 /H.264 | ||
| Multi-screen Display | 1 / 4 | ||
| Audio | Network Input | 4 CH IPC audio input | |
| 2-way Audio | No | ||
| Local Output | No (HDMI supports the audio output) | ||
| Compression | G.711(U/A) | ||
| Record | Resolution | 6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF | |
| Frame Rate | 30fps/25fps(NTSC/PAL) | ||
| Playback | Simultaneous Playback | Max. 4 CH | |
| Search | Time slice / time / event / tag / smart search | ||
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | ||
| Function | Play, pause, FF, FB, digital zoom, etc. | ||
| Decoding Capability | Live View/Playback | 1CH 6MP; 4CH 1080P | |
| Alarm | Type | Manual, sensor, motion, exception, smart events | |
| Input | Support IPC alarm input | ||
| Output | Support IPC alarm output | ||
| Triggering | Record, snapshot, buzzer, preset, e-mail, etc. | ||
| Network | Interface | RJ 45 100Mbps × 1 | |
| Protocol | TCP / IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, RTSP, SNMP, ONVIF, etc. | ||
| Incoming Bandwidth | 40 Mbps | ||
| Outgoing Bandwidth | 40 Mbps | ||
| Client Connection | Max. 10 users access | ||
| LPR | Plate Detection (AI by IPC) | Yes | |
| Mobile Device | OS | iOS, Andriod | |
| Storage | HDD Interface | SATA3.0 × 1, max 10T | |
| Backup | Local Backup | U disk, USB mobile HDD | |
| Network Backup | Yes | ||

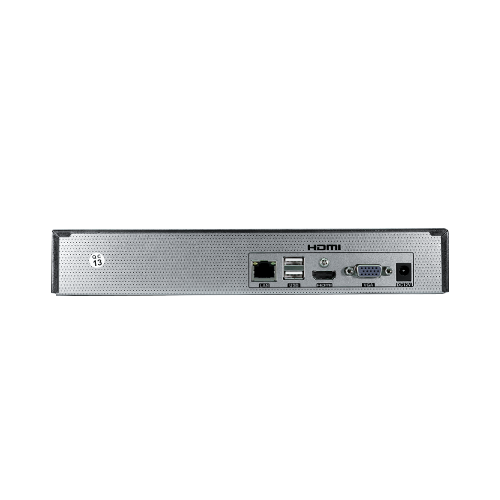

| Port | USB | USB 2.0 × 2 | |
| Remote Controller | No | ||
| Others | Power Supply | DC 12V/1.5A | |
| Consumption | < 5W ( without HDD ) | ||

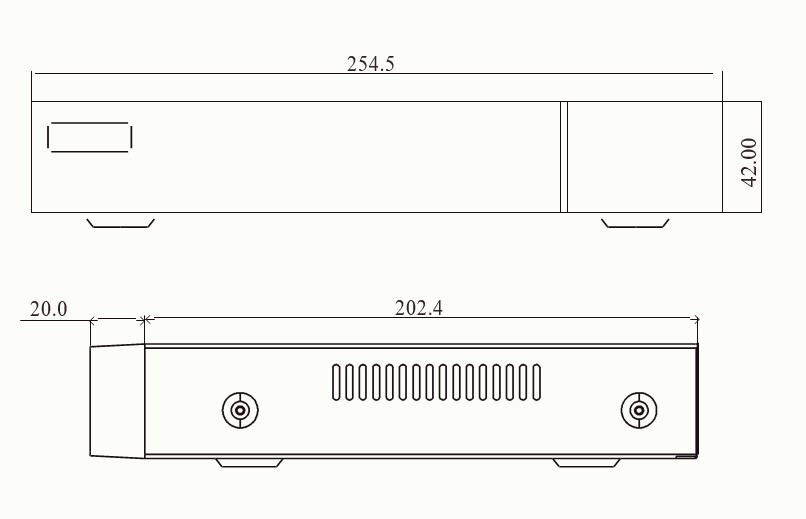

| Dimensions (mm) | 255 × 222 × 42 ( W × D × H ) | ||
| Working Environment | -10 ～ 50 ℃，10% ～ 90% humidity | ||
| Certificate | CE, FCC | ||
| Environmental Protection | Complies with Directive EU RoHS, REACH and WEEE | ||
