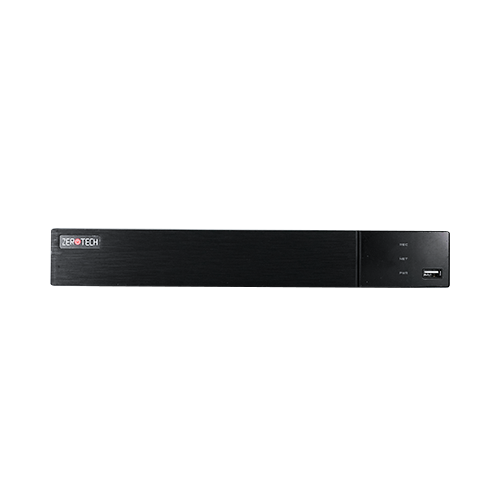

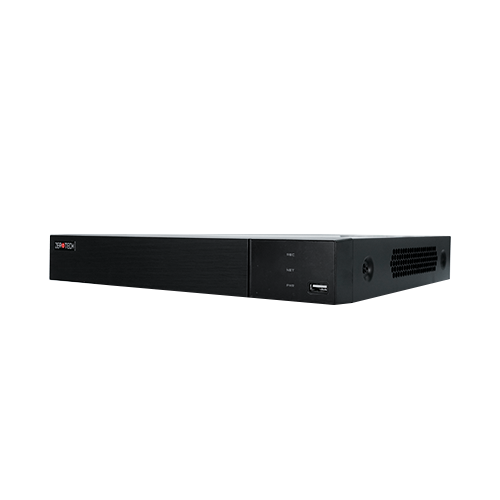

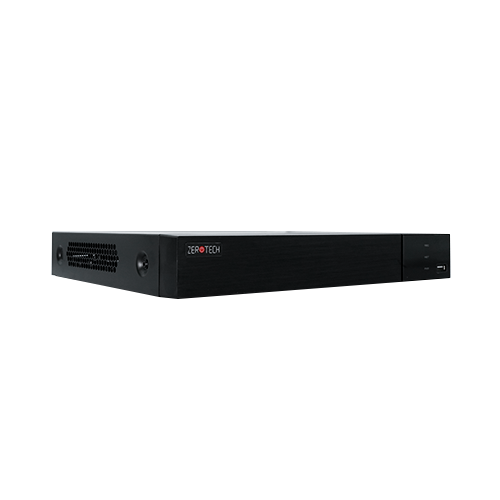

ZTNX-EG324K-FR-A2
ZTNX-EG324K-FR-A2
ZTNX-EG324K-FR-A2 supports 32 CH 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280×1024 / 960P / 720P high definition IP input, which adopts the most advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system.
ZTNX-EG324K-FR-A2 supports 32 CH IP input, simultaneous 16 CH playback, and 4K high definition display.
The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
Features
- Supports 32 CH 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280 × 1024 / 960P / 720P / 960H / D1 /CIF IP video input
- H.265S/H.265+/H.265/H.264 coding
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-mode recording: manual / timed / motion / sensor / POS / AI recording
- Playback: 16 CH simultaneous playback
- Search: time slice, time, event, tag, smart and target database search
- Support face detection and comparison
- Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
- Support POS information overlay on live view and playback
- Express and flexible backup via USB, network and so on
- DHCP, DDNS, PPPoE network protocol
- Pentaplex: preview, record, playback, backup and remote access
- Remote control via Web Client or CMS: preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K output, true high resolution display
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Andriod OS
| Model | ZTNX-EG324K-FR-A2 | |
|---|---|---|
| System | OS | Embedded Linux |
| Video | Network Input | 32 CH IPC input |
| Network Input Resolution | 12MP/8MP/6M/5MP/4MP/3MP/1080P/1280 × 1024/960P/ 720P/960H/D1/CIF | |
| Output | HDMI × 1: 3840 × 2160@60fps /3840 × 2160@30fps / 1920 × 1080 / 1280 × 1024/ 1024 × 768 VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768 |
|
| Compression | H.265S/H.265+/H.265/H.264 | |
| Multi-screen Display | 1/4/6/8/9/13/16/25/32/36 |
|
| Audio | Network Input | 32 CH IPC audio input |
| 2-way Audio | RCA × 1 | |
| Local Output | RCA × 1 | |
| Compression | G.711(U/A) | |
| Record | Record Stream | Dual stream recording |
| Resolution | 12MP@20fps; 8MP/ 6MP/5MP/4MP/3MP/1080P/1280×1024/ 960P/720P/960H/D1/CIF@30fps(NTSC)/25fps(PAL) |
|
| Playback | Simultaneous Playback | Max 16CH |
| Search | Time slice / time / event / tag / smart search | |
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record | |
| Function | Play, pause, FF, FB, digital zoom, etc. | |
| Decoding Capability | Live View/Playback | 1CH 12MP/4CH 5MP/9CH 720P/16CH D1 |
| Alarm | Mode | Manual, sensor, motion, exception, smart events |
| Input | Supports IPC alarm input | |
| Output | Supports IPC alarm output | |
| Triggering | Record, snap, preset, e-mail, etc. | |
| Face | Channel | 32 CH |
| Face Picture Database | 32 libraries 5000 Face Pictures |
|
| Computing Capability | 180 pictures / minute | |
| Face Picture Search | Search by picture is supported | |
| Database Management | Add, modify, delete and search face pictures | |
| Face Picture Adding | Add face pictures through APP, WEB and external import | |
| Face Picture Comparison | Support allow list, block list and stranger match alarm | |
| Track | Track display on a map | |
| Statistic Graph of Face Information | Bar graph | |
| Statistic Mode of Face Information | Statistics by day, week, month, quarter as well as customized time period |
|
| Video Structure Analysis | Human/Vehicle Classification | Yes |
| Other Functions | Fisheye | Supports fisheye dewarping via Web Client and mobile APP |
| Plate Recognition | Yes | |
Network | Interface | RJ 45 10 / 100 / 1000 Mbps × 1 |
| Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, HTTP, HTTPs, UPnP, NTP, SMTP, 802.1x, ONVIF, etc. |
|
| Incoming Bandwidth | 256Mbps | |
| Outgoing Bandwidth | 256Mbps | |
| Client Connection | Max. 20 users access | |
| Mobile Device | OS | IOS, Android |
| Storage | HDD Interface | SATA× 2, max 8T per HDD |
| Backup | Local Backup | U disk, USB mobile HDD |
| Network Backup | Yes | |
| Port | USB | USB 2.0 × 1, USB 3.0 × 1 |
| Remote Controller | Optional | |
| Power Supply | DC 12V 4A | |
| Others | Consumption | ≤ 15W ( without HDD ) |
| Dimensions(mm) | 380 × 268 × 45 ( W × D × H ) | |
| Working Environment | -10~ 50°C, 10% ~90% humidity | |
| Certificate | CE, FCC | |
| Environmental Protection | Directive EU RoHS, REACH and WEEE | |
