ZeroTech

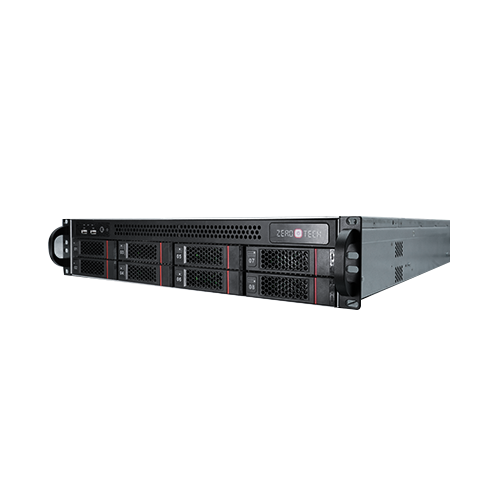

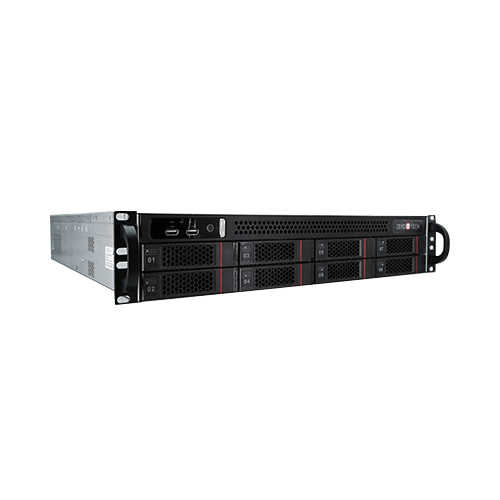

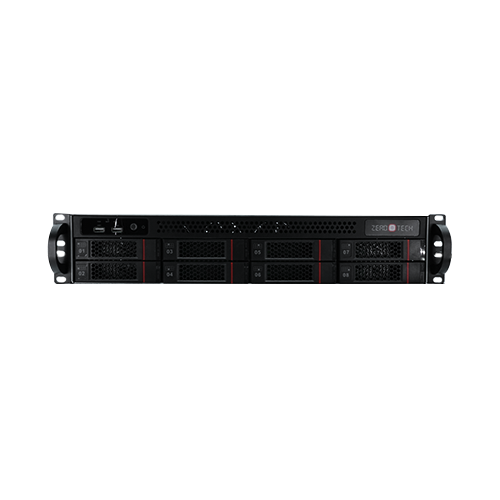

ZTNX-64CH-FRPRO-HSRP

ZTNX-64CH-FRPRO-HSRP

Features

  • Support 64 CH 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280x1024 /960P/720P/
  • 960H/D1/CIF IP input
  • H.265S/H.265+/H.265/H.264 coding
  • Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
  • Multi-mode recording: manual / timed / motion / sensor/ POS / AI recording
  • Playback: 16 CH simultaneous playback
  • Search: time slice, time, event, tag, smart and target database search
  • Support face detection and comparison
  • Express and flexible backup via USB, network and so on Preview, record, playback, backup
  • and remote access are supported
  • DHCP, DDNS, PPPoE network protocol, etc
  • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
  • Support NAT function and QR Code scanning by mobile phones

ModelZTNX-64CH-FRPRO-HSRP
SystemOSEmbedded Linux
VideoIP Video Input64
Network BandwidthIncoming: 640Mbps
Outgoing: 640Mbps
Resolution16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF
OutputHDMI1: 7680×4320@60 7680×4320@30 3840×2160@60 3840×2160@30 1920×1080 1280×1024
1024×768 (When the resolution of HDMI1output is 8K, HDMI2 is unavailable)
HDMI2: 3840×2160@60 3840×2160@30 1920×1080 1280×1024 1024×768
HDMI3: 3840×2160@60 3840×2160@30 1920×1080 1280×1024 1024×768
HDMI4: 1920×1080 1280×1024 1024×768
VGA×1: 1920×1080 1280×1024 1024×768 (VGA and HDMI1 output the same video source)
CompressionH.264/H.265/H.265+/H.265S
Multi-screen DisplayMain output: 1/4/6/8/9/13/16/25/32/36/64
AUX output 1: 1/4/6/8/9/13/16/25/32/36
AUX output2: 1/4/6/8/9/13/16
AUX output 3: 1/4/6/8/9/13/16
Max. 132(64+36+16+16)
Audio
Network Input64
Local InputRCA×1 (for two-way talk)
Local OutputRCA × 1
HDMI Audio OutputSupport
CompressionG.711(U/A)
RecordResolution16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF
Frame RateN:30fps P:25fps
PlaybackSimultaneous Playback 16 CH
SearchTime slice/time/event/tag/smart search
FunctionPlay, pause, FF, Rewind, digital zoom, previous frame, next frame, etc.
Decoding CapabilityLive View1× 16MP@30 / 4×12MP (only available for main output)
Playback1× 16MP@30 / 4×8MP (only available for main output)
Alarm
ModeManual, sensor, motion, exception, smart events, etc.
Input16 CH
Output8 CH
TriggeringRecord, snapshot, preset, e-mail, etc
FaceFace Detection Performance
(AI by IPC)		64CH
Face Detection Performance
(AI by device)		4CH
Face Match Performance
16 CH
Comparison Capability36 pictures / second
Face Picture Database32 libraries
10000 Face Pictures
Face Picture SearchSearch by picture is supported
Database ManagementAdd, modify, delete and search face pictures
Face Picture AddingAdd face pictures through APP, WEB and external import
Face Picture ComparisonSupports successful face recognition alarm and stranger match alarm
TrackTrack display on a map
Statistic Graph of Face InformationBar graph
Statistic Mode of Face InformationStatistics by day, week, month, quarter as
well as customized time period
Video
Structure
Analysis		Human/Vehicle
Classification
(AI by IPC		64CH
Human/Vehicle
Classification
(AI by Device)		8CH
Human/Vehicle
Attribute Analysis
(AI by IPC)		Yes
Fisheye AccessYes

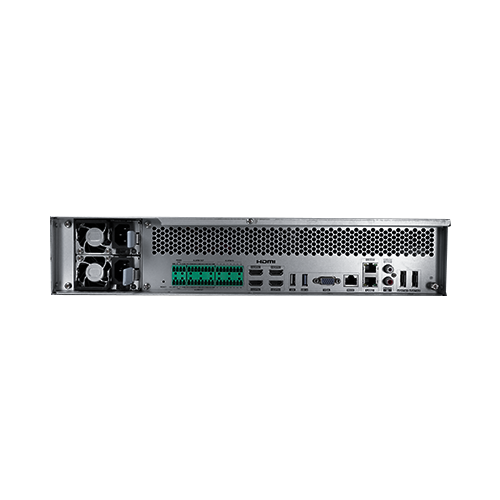

InterfaceRJ45 10/100/1000Mbps ×2
Client ConnectionMax. 128 users access
Mobile DeviceOSiOS, Andriod
StorageHDD InterfaceSATA× 8 max 10TB per HDD
RAID TypeRAID 0, 1, 5, 6, 10
E-SATA Interface2
PortUSBUSB3.0× 1 USB2.0 × 3(Front:2)
RS485Yes (full-duplex)
RS232Yes
ResetYes
12V OutputYes (1A)
Remote ControllerOptional
OthersPower Single or redundant, AC100V 240V
Consumption≤ 50W ( without HDD )
Dimensions560×437.2×88mm
CertificateCE,FCC
Environmental ProtectionDirective EU RoHS, WEEE(2012/19/EU) , Directive 94/62/EC and
REACH(EC1907/2006)
Working Environment-10 ～ 50 ℃，Humidity: 10% ～ 90%
