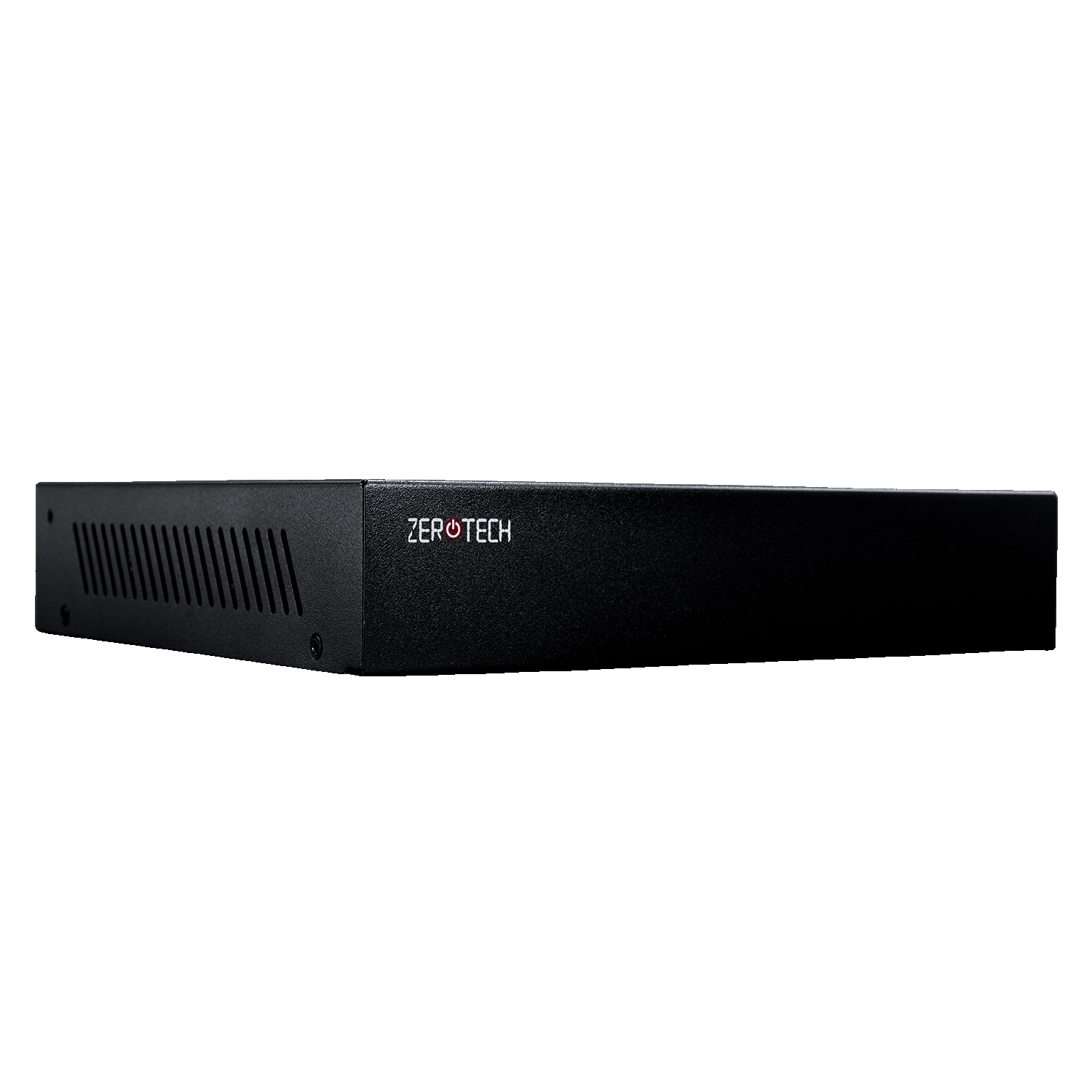

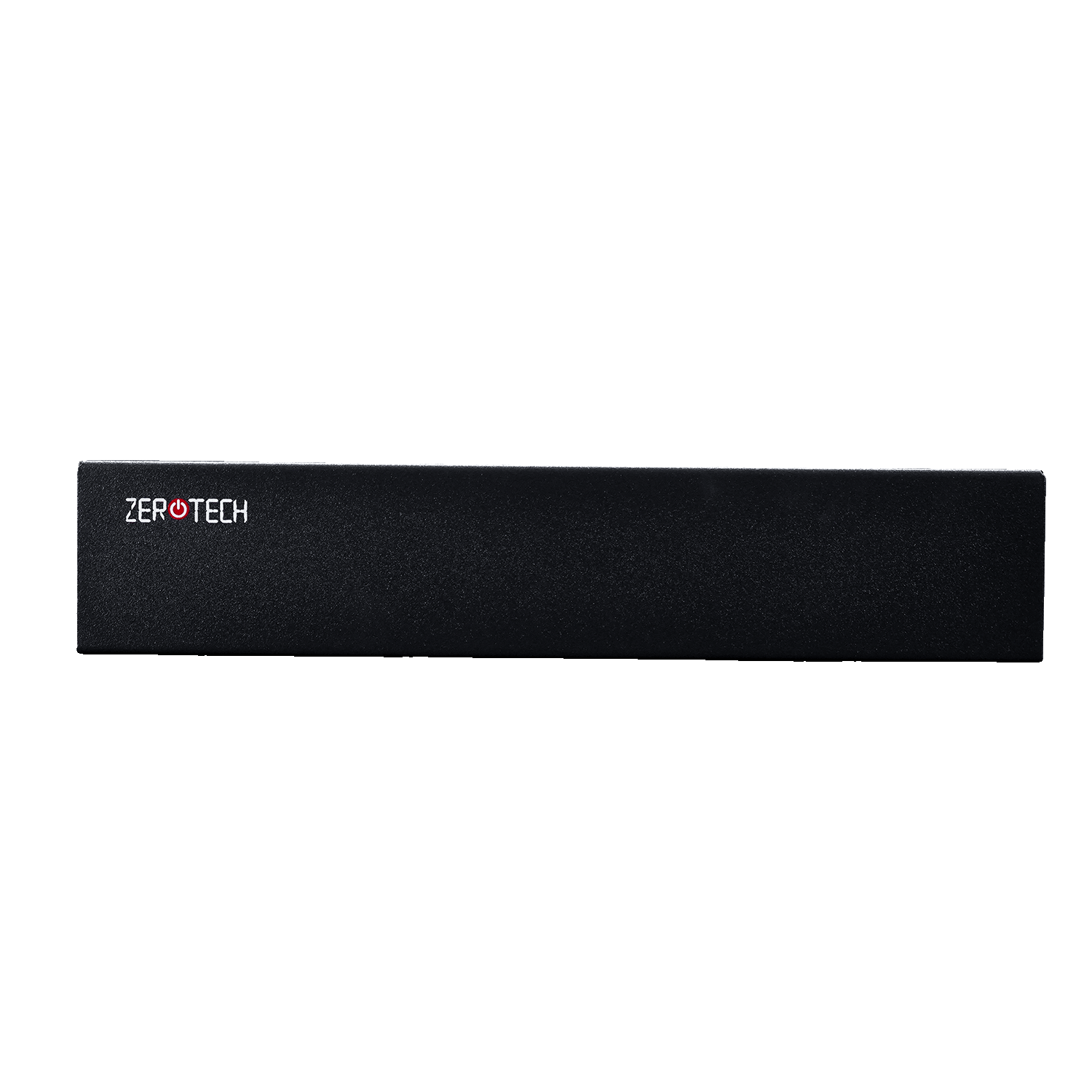

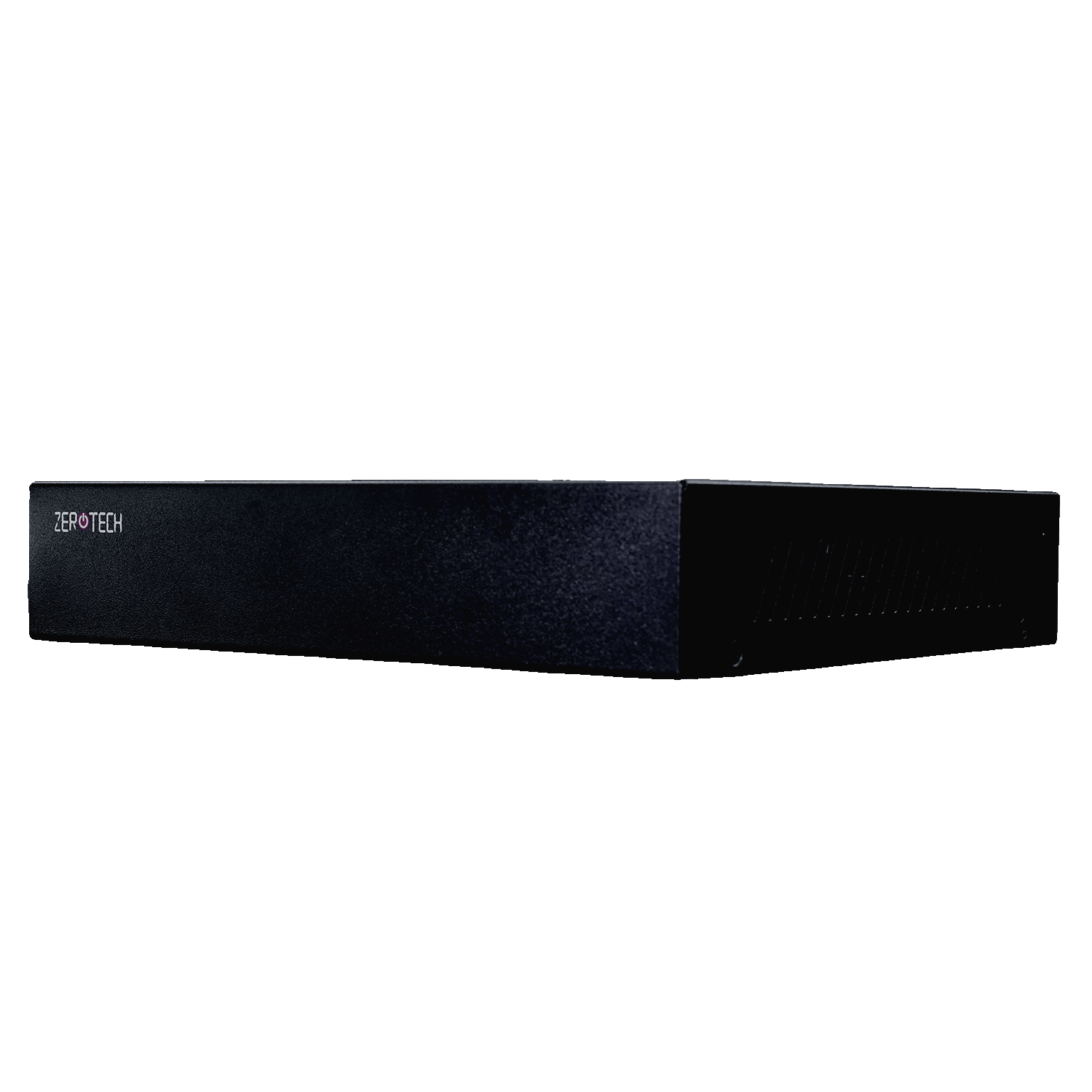

ZTN-L4CH4K-POE
ZTN-L4CH4K-POE
Features
- Video Input 9CH(8MP/6MP/5MP/4MP/3MP/1080p/1280x1024/960p/720p/D1/CIF)
- Video Output 1* HD
- Motion Detection 9 Channel, MD Zones: 396 (22 × 18)
- HD Output1 1920*1080/1280*1024/1280*720/1024*768
- Display Split 9CH/8CH/6CH/4CH/1CH
- OSD Camera Title, Time, Recording, Motion Detection, Event Alarm
- Video Compression H265/H264/H265+/H264+
- Resolution 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P
- ( 1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
- Record Mode Manual\Timer\Motion Detection\Smart Event
- Decode Capability 1080P(1920x1080)@120fps
- Storage Interface Type 1 SATA Hard Disk Interface (3.5" SATA) / Up to 8TB capacity
-
- Vector Mouse Icon
| Model | ZTN-L4CH4K-POE |
|---|---|
| System | |
| Main Processor | ARM Cortex A7 Processor |
| Operating System | Embedded LINUX |
| Video | |
| Input | 9CH(8MP/6MP/5MP/4MP/3MP/1080p/1280×1024/960p/720p/D1/CIF) |
| Output | 1* HD |
| Audio |
|
| input | N/A |
| Output | N/A |
| Audio Bit Rate | 64kbps |
| Audio Compression standard | G711U, G711A |
| Intercom | N/A |
| Alarm | |
| Sensor Input | N/A |
| Output | N/A |
| Motion Detection | 9 Channel, MD Zones: 396 (22 × 18) |
| Trigger Events | Recording, Email, FTP, Snapshot and Screen Tips |
| Display | |
| HD Output1 | 1920*1080/1280*1024/1280*720/1024*768 |
| HD Output2 N/A | N/A |
| VGA N/A | N/A |
| Display Split | 9CH/8CH/6CH/4CH/1CH |
| Digital Zoom | YES |
| OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
| Recording | |
| Video Compression | H265/H264/H265+/H264+ |
| Resolution | 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P( 1920×1080),960P(1280×960),720P(1280×720),D1 (720×576/720×480) |
| Record Rate | PAL: 4K@8CHx25fps,5MP@9CH×25fps,4MP@9CHx25fps,3MP@9CH×25fps,1080P@9CH×25f ps, 960P@9CH×25fps720P@9CH×25fps, D1@9CH×25fps NTSC: 4K@8CHx30fps,5MP@9CH×30fps,4MP@9CH×30fps,3MP@9CH×30fps,1080P@9CH×30f ps, 960P@9CH×30fps, 720P@9CH×30fps, D1@9CH×30fps |
| Record Mode | Manual\Timer\Motion Detection\Smart Event |
| Playback & Backup | |
| Local Sync Playback | 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH1080P@30fps,9CH 720P@30fps |
| Decode Capability | 1080P(1920×1080)@120fps |
| Remote Sync Playback | YES |
| Search Mode | ALL, Timing Video, Motion Detection, Tag search,Smart Event,Pictrue,Log |
| Network | |
| interface | 1xRJ45 10M/100M(self-Adaptive Ethernet Interface) |
| Incoming Bandwidth | 72Mbps |
| Outgoing Bandwidth | 48Mbps |
| Network Functions | IPv6/TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, |
| Onvif | Profile S, Profile T |
| Web Browser | Edge,IE8-11, Google Chrome , Firefox ,Safari |
| CMS Software | Support Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS |
| Cloud Support | Yes |
| Smart Phone | iPhone, Android |

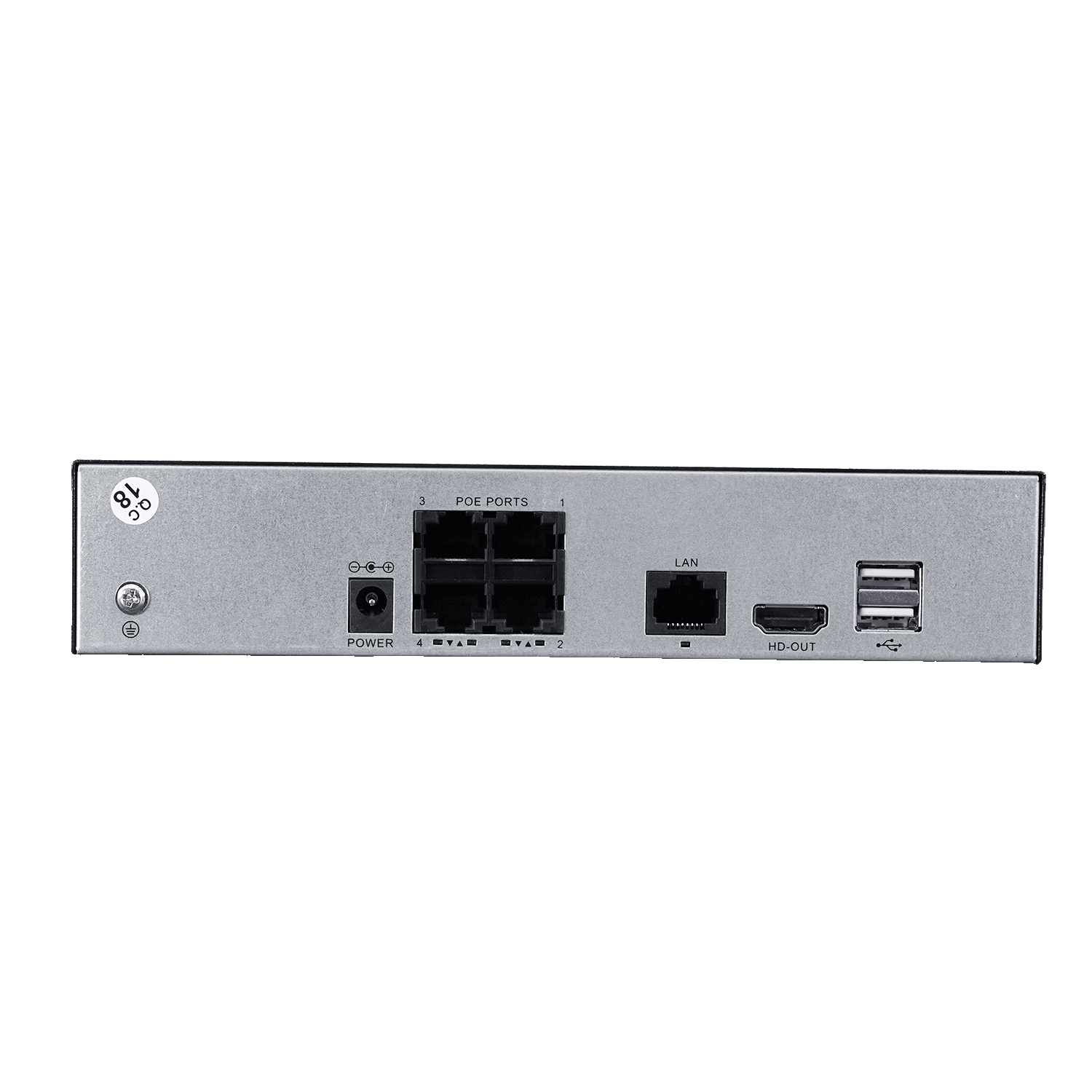

| POE | 4x Independent 100Mbps POE Network Interfaces(Output power AT mode 30W per port), 45/78 line order, Total Power Output≤ 45W, Support Plug and Play, Support network cable extended mode Max. 200M |
| WIFI | N/A |
| Storage | |
| Interface Type | 1 SATA Hard Disk Interface (3.5″ SATA) |
| Capacity | Up to 8TB capacity |
| eSATA | N/A |
| General | |
| Language UI | Simplified Chinese, Traditional Chinese,English, Russian,Deutsch, French, Portuguese, Spanish, Italian, Korean, Janpanese， Ukrainian, Polski,Dutch, Greek, Czech, Arabic |
| USB Interface | 2 USB 2.0 Interfaces |
| RS485 | N/A |
| Power consumption | DC48V∕1.36A ≤ 6W (Without Hard Disk and POE) |
| Working Environment | -10℃ ～50℃, 10%～90%(humidity) |
| Product Dimension(W×D×H) | 200 x 175 x 40mm |
| Net Weight | 1.5kg(without HDD) |
| Gross Weight | N/A |
