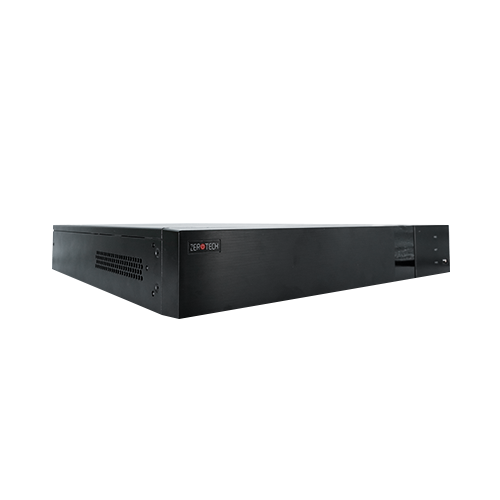

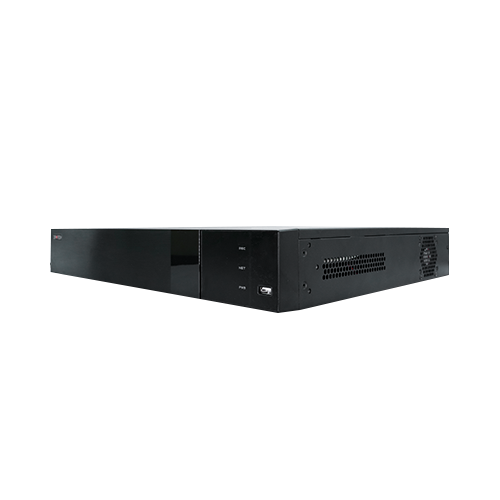

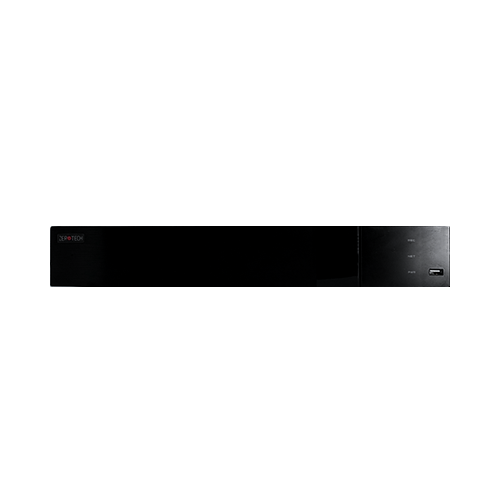

ZTN-EG16CH4K-POE-FR
ZTN-EG16CH4K-POE-FR
Features
- Supports 16 CH 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/
- 720P/960H/D1/CIF IPC Input
- H.265S/H.265+/H.265/H.264
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-type recording: manual / timed / motion / sensor / POS / AI recording
- Playback : 16CH simultaneous playback
- Search : time slice, time, event, tag and smart search
- Supports face detection and comparison
- Supports 16CH PoE IPC direct connection to NVR via PoE ports
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K output, true high resolution display
- Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
- Supports 16CH PoE IPC direct connection to NVR via PoE ports
- Multi-user online simultaneously
- 4K output, true high resolution display
-
- Vector Mouse Icon
| Model | ZTN-EG16CH4K-POE-FR | ||
|---|---|---|---|
| System | OS | Embedded Linux | |
| Compression | H.265S/H.265+/H.265/H.264 | ||
| Video | IP Video Input | 16 CH IPC input | |
| Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF | ||
| Incoming/ Outgoing Bandwidth | 192Mbps/192Mbps | ||
| *When the AI function of the IPC is enabled, the actual incoming bandwidth(max.bitrate) is more than the set value in the NVR. | |||
| Output | HDMI : 3840 × 2160/1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA can be set to output the same or different video source with HDMI | ||
| Multi-screen Display | Main output: 1/4/6/8/9/13/16 (live view) AUX output: 1/4/6/8/9 (live view) AI mode: max 16CH (HDMI and VGA output the same video source, AI by device supported) Non-AI mode (default mode): max 25CH (VGA can be set to output the same or different video source with HDMI, AI by device not supported) | ||
| Audio | Network Input | 16CH IPC audio input | |
| 2-way Audio | RCA × 1 | ||
| Local Output | RCA × 1 | ||
| Compression | G.711(U/A) | ||
| Record | Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF | |
| Frame Rate | NTSC: 30fps; PAL: 25fps | ||
| Playback | Simultaneous Playback | Max. 16 CH | |
| Search | Time slice / time / event / tag search/smart search | ||
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | ||
| Function | Play, pause, FF, FB, digital zoom, etc. | ||
| Decoding Capability | Live View / Playback | up to 8ch@8mp or 16ch@4mp | |
| Alarm | Mode | Manual, sensor, motion, exception, smart events, etc. | |
| Input | 8 CH local alarm input | ||
| Output | 4 CH | ||
| Triggering | Record, snap, preset, e-mail, etc. | ||
| Face | Face Detection Performance (AI by IPC) | 16 CH | |
| Face Detection Performance (AI by Device) | 2 CH (2MP) | ||
| Face Match Performance | 6 CH | ||
| Comparison Capability | 18 pictures / second | ||
| Face Picture Database | 32 libraries 10000 Face Pictures | ||
| Network | Face Picture Search | Search by picture is supported | |
| Database Management | Add, modify, delete and search face pictures | ||
| Face Picture Adding | Add face pictures through APP, WEB and external import | ||
| Face Picture Comparison | Support successful face recognition alarm and stranger match alarm | ||
| Track | Track display on a map | ||
| Statistical Graph of Information | Bar graph | ||
| Statistical Mode of Information | Statistics by day, week, month, quarter as well as customized time period | ||
| Perimeter Protection | Human/Vehicle Classification (AI by IPC) | 16 CH | |
| Human/Vehicle Classification (AI by Device) | 2 CH (2MP) | ||
| Video Metadata | Human/Vehicle Attribute Analysis | Yes (AI by IPC) | |
| Other Functions | Fisheye | Supports fisheye camera access | |
| Plate Recognition (AI by IPC) | Yes | ||
| PoE | PoE Port | RJ 45 100Mbps × 16 | |
| Standard | IEEE802.3AF/AT | ||
| Output Power | ≤ 150W | ||
| Network | Interface | RJ 45 1000 Mbps × 1 | |
| Protocol | TCP / IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, HTTP, FTP, SMTP, HTTPs, 802.1x, RTSP, RTP, RTCP, WebSocket, SNMP, IGMP, ONVIF | ||
| Client Connection | Max. 64 users access | ||
| Mobile Device | OS | OS iOS, Andriod | |
| Storage | HDD Interface | SATA × 2, max 10T for each HDD | |
| Backup | Local Backup | U disk, USB mobile HDD | |
| Network Backup | Yes | ||
| External Interface | RS 485 | Yes (full-duplex), connect to PTZ or keyboard | |
| USB | USB 3.0 × 1 ; USB 2.0 × 2 | ||
| Remote Controller | Optional | ||
| Others | Power Supply | DC48V/3.75A | |
| Consumption | ≤ 20W ( without HDD and PoE power supply ) | ||
| Certificate | CE, FCC | ||
| Environmental Protection | Directive EU RoHS, REACH and WEEE | ||
| Dimensions(mm) | 380 × 268 × 45 ( W × D × H ) | ||
| Working Environment | -10 ~ 50 ℃， 10% ~ 90% humidity | ||
