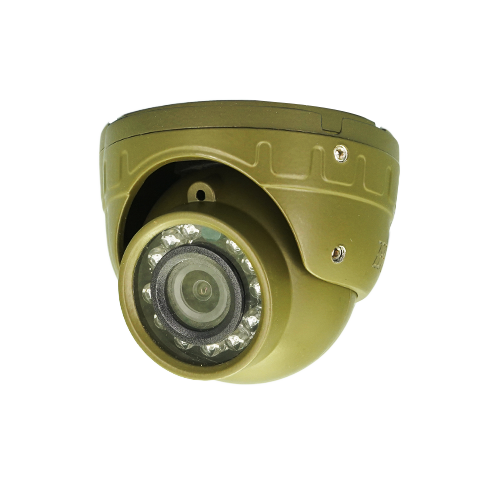

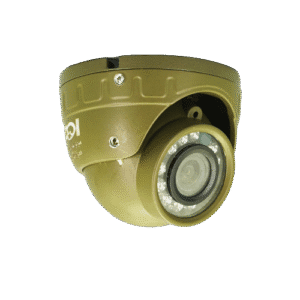

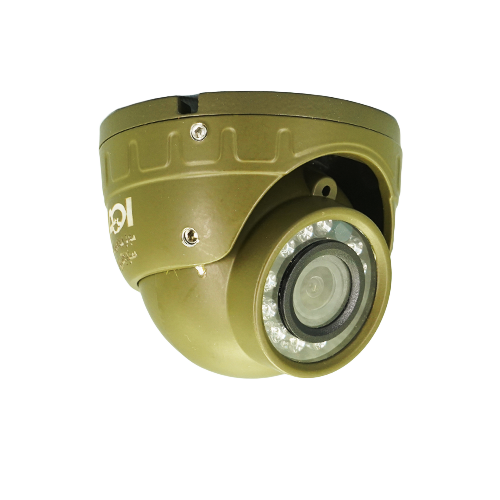

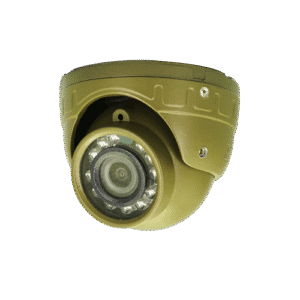

ZTMC-EG2MD
ZTMC-EG2MD
Sensor 2053 CMOS AHD 1080P
System PAL
resolution 1280（H）X 1080（V）
Effective Pixels 2.0 M pixels
vertical sync frequency 50Hz / 60Hz
Minimum illumination 1Lux/F1.2
lens 2.8mm F = 2.0
Effective Angle of Lens 100°
electric current 70mA±10%
Voltage DC 12V±10%
| Model | ZTMC-EG2MD |
|---|---|
| Sensor | 2053 CMOS AHD 1080P |
| System | PAL |
| Resolution | 1280（H）X 1080（V） |
| Effective pixels | 2.0 M pixels |
| Scanning system | 2:1 Interlaced |
| Synchronization system | Internal synchronization |
| Vertical sync frequency | 50Hz / 60Hz |
| Minimum illumination | 1Lux/F1.2 |
| Video output | 1.0vp-p, 75Ω |
| Gamma coefficient | 0.45 |
| AGC | Auto |
| Sound to noise ratio | 48dB |
| White balance | Auto |
| BLC | 自动 |
| Lens | 2.8mm F = 2.0 |
| Effective angle of lens | 100° |
| Electric current | 70mA±10% |
| Voltage | DC 12V±10% |
| Operating temperature | －20°C~70°C , RH95％ MAX |
| Storage temperature | －30°C~80°C，RH95％ MAX |
