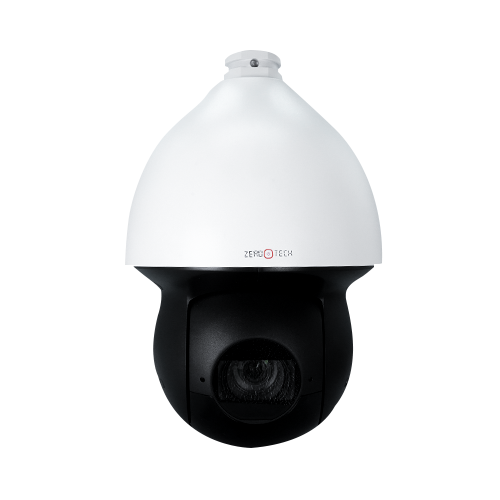

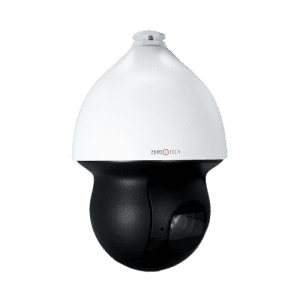

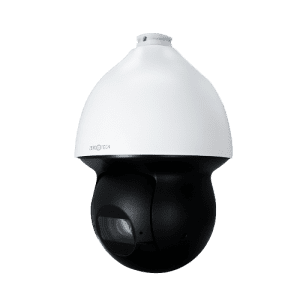

ZTIPX4M-PTZ40X
ZTIPX4M-PTZ40X
Key Features
- Image sensor 1/2.8" progressive scan CMOS image sensor, with BSI and NIR++,Dual Gain
- Max resolution 2560x1440
- Mini. Illumination Color 0.005 Lux @ (F1.2 AGC ON) B/W 0.001 Lux @(F1.2 AGC ON);0Lux with IR
- Digital Zoom 16X
- DC_IRIS
- IR Distance 350m (1148 f.t.) ,850nm IR
- 1 Alarm input(Dry contact); 1 Alarm output
- Audio Interface 1 audio input, line level, 2.0-2.4Vpp,impedance 1KΩ; 1 audio output, line level, impedance,600Ω
- ONVIF, API and SDK
- AE Enhancement BLC, HLC, DWDR , 3D DNR, Smart IR
- PoE+, DC24V or AC24V power supply options
| Model Specifications | ZTIPX4M-PTZ40X | ||||
|---|---|---|---|---|---|
| Camera | |||||
| Image sensor | 1/2.8″ progressive scan CMOS image sensor, with BSI and NIR++,Dual Gain | ||||
| Max resolution | 2560×1440 | ||||
| Mini. Illumination | Color 0.005 Lux @ (F1.2 AGC ON) B/W 0.001 Lux @(F1.2 AGC ON);0Lux with IR | ||||
| Image setting | Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, etc. adjusted by client | ||||
| Shutter Speed | 60Hz: 1/30s – 1/30,000s@30fps;50Hz:1/25s~1/25,000s@25fps | ||||
| White Balance | Auto/Manual/Indoor/Outdoor | ||||
| Gain control | Auto/Manual | ||||
| Day & Night control | Auto/Manual ,time schedule. | ||||
| Iris control | Auto/Manual | ||||
| SNR | ≥52dB | ||||
| 3D DNR | Auto/Manual | ||||
| AE Enhancement | BLC, HLC, DWDR | ||||
| Digital Zoom | 16X | ||||
| Electronical Stabilizer | N/A for this version | ||||
| Privacy Mask | 4 areas, up to 8 mask per request. | ||||
| Picture overlay | Logo picture could be overlaid on video with 128x128pixels,24bits format | ||||
| OSD overlay | Max 15 characters/line, 8 lines, white or red font color | ||||
| Lens | |||||
| Focus length | f=4.5-180mm lens,40x optical zoom | ||||
| Zoom Speed | Approx. 5.2s (optical zoom, wide-tele) | ||||
| Field of View | H: 59.1°~1.8°; V: 38.4°~ 1.1°; D: 68.9°~ 2.1°(wide-tele) ±5% | ||||
| Image distance | Wide: 1.0m ~ INF; tele: 1.5m ~ INF | ||||
| Aperture Range | Max F1.2 | ||||
| Iris Type | P_IRIS | ||||
| IRCut type | Removable IRCut filter | ||||
| DORI distance | Focus length | Detect | Observe | Recognize | Identify |
| f=4.5mm | 99.6m(326.8 f.t.) | 39.5m(129.7 f.t.) | 19.9m(65.4 f.t.) | 10m(32.7 f.t.) | |
| f=180mm | 3600m(8126.6f.t.) | 1429m(3250.7 f.t.) | 720m(1625.3f.t.) | 360m(812.7 f.t.) | |
| PTZ | |||||
| Pan Range | 360°endless | ||||
| Pan speed | Configurable, from 0.1~390°/s; Preset speed: 420°/s | ||||
| Tilt Range | From -25°to 155°,auto flip at 90° | ||||
| Tilt Speed | Configurable, from 0.1°~270°/s, Preset speed: 300°/s | ||||
| Proportional Zoom | Yes | ||||
| Preset | 360 | ||||
| Cruise | 8 cruises, up to 16 presets for each cruises | ||||
| Trace | 4 traces, record time over 3 minutes for each trace | ||||
| Power off memory | Support | ||||
| Action mode | Preset/Cruise/Trace/Auto Scan/Random Scan | ||||
| 3D Positioning | Support | ||||
| PTZ Position Display | Support | ||||
| Schedule Task | Preset/Cruise/Trace/Random Scan/Boundary Scanning /Dome reboot/ De-frost/Water Removal | ||||
| IR | |||||
| IR Distance | 350m (1148 f.t.) ,850nm IR | ||||
| Smart IR | Yes | ||||
| Network | |||||
| Main stream | 50Hz: 25fps: 2560×1440,1920×1080,1280×960,1280×720; 60Hz: 30fps: 2560×1440,1920×1080,1280×960,1280×720 | ||||
| Sub stream | 50Hz: 25fps (704 ×576, 640 ×480, 352 ×288); 60Hz: 30fps (704 ×480, 640 ×480, 352 ×240) | ||||
| Third Stream | 50Hz:25fps (1920 ×1080, 1280 ×960, 1280 ×720, 704 ×576, 640 ×480, 352 ×288) 60Hz:30fps (1920 ×1080, 1280 ×960, 1280 ×720, 704 ×480, 640 ×480, 352 ×240) | ||||
| Video compression | H.265+/H.265/H.264+/H.264/MJPEG | ||||
| H.264 Standard | H.264/AVC codec BP/MP/HP, Level 5.1 | ||||
| H.265 Standard | H.265/HEVC codec MP, level 5.0 | ||||
| Video Bit Rate | 64 Kbps to 16Mbps | ||||
| Audio compression | G.711 A/U | ||||
| Audio Bit Rate | 64K bps | ||||
| Protocols | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, DHCP, PPPoE,P2P | ||||
| User / Host | Up to 16 users, 3 levels: Administrator, Advanced User and Normal User | ||||
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, IEEE802.1x port-based network access control; IP address filtering | ||||
| API | ONVIF profile s , A/G/Q/S/T, support SDK and third-party management platform | ||||
| Client | ZTVMS ; and the third-party client, free iOS and Android App | ||||
| Web Browser | IE8-11 with plug-in; Edge, Chrome, Firefox with plugin free | ||||
| Smart Features | |||||
| Basic event | Motion detection, Video tampering alarm, Exception(Network disconnected, IP address conflict, SD full, SD error) | ||||
| Face recognize | Face detection & capturing, Max 17faces per scene. | ||||
| Road traffic | Vehicle detecting and tracking | ||||
| Smart Detection | Tripwire, Bi-directional tripwire, Illegal intrusion detection, Region entrance detection, Region exiting detection, etc. More VCA per request. | ||||
| Smart Tracking | support smart tracking of human or vehicle, manual/auto | ||||
| System Integration | |||||
| Alarm Interface | 1 Alarm input(Dry contact); 1 Alarm output | ||||
| Audio Interface | 1 audio input, line level, 2.0-2.4Vpp,impedance 1KΩ; 1 audio output, line level, impedance,600Ω | ||||
| Alarm Linkage | Alarm actions, such as Preset, Cruise, Trace, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card, Send Email, etc. | ||||
| Network Interface | 1 RJ45 10M/100M Adaptive Ethernet | ||||
| SD Card Slot | One MicroSD slot and chamber, up to 256G | ||||
| Built-in Speaker & Mic | N/A | ||||
| RS485 | N/A | ||||
| BNC | N/A | ||||
| Reset button | Yes | ||||
| Electric Heater &Fan | Yes | ||||
| Water removal | Remove water-drops by quick spinning(5.1.2 and later) | ||||
| Frost and fog removal | Active electric heating and air loop | ||||
| General | |||||
| languages | Czech; English, German; Hungarian; Italian; Japanese; Korean; Portuguese, Polish; Russian, Romanian, Spanish; Spanish(Mexico); Simplified Chinese; Turkish; Traditional Chinese. Etc. | ||||
| Power supply | DC24V±25% ,PoE+ (802.3.at,type 2), max 23.5W include IR ON+PTZ working | ||||
| Working condition | -40°C~70°C (-40°F ~ 158°F), IR off; -40°C~50°C,IR on; Cold start>=- 30°C(0.5-1hour waiting); 90%RH | ||||
| Storage condition | -40°C ~ 70°C ; ≤ 95% RH | ||||
| Protection | 6000V Lightning Protection, Surge Protection and Voltage Transient Protection | ||||
| Material | Metallic | ||||
| Dimensions | Φ 302mm × 197mm (Φ11.9inch ×7.75 inch) | ||||
| Net Weight | Approx. 3.0 Kg (6.61 lb.) | ||||
| Certification | IP66,IK10(excluding glass window), ROHS, CE, FC,KC, BIS,UKCA | ||||
| Rotation Life | At least 10 millions times | ||||
| Body | metallic | ||||
