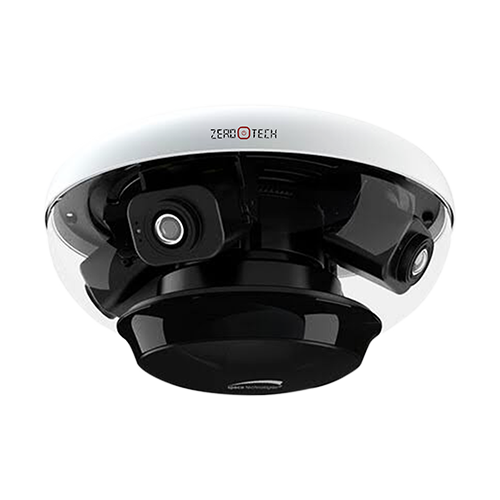

ZTIP-EGMS16M-360D
ZTIP-EGMS16M-360D
Key Features
- Eight 1080P video modules to stitch one 16MP, 360° surrounded video stream
- 16MP (4096×1800×2) resolution, 25/30fps real-time
- One IP address, One video interface, similar with one IPC, easy to learn, manage and deploy
- One Cable (PoE++), One bracket and One Panoramic camera, easy to install, reducing TOC(Total own cost)
- Advanced real-time stitching technology without geometry, brightness and color gap
- 6th gen Starlight &HDR technology (0.008lux@F2.0 AGC on) provides vivid color at most scenarios.
- 360°(H)×90°(V) circular IR illumination, up to 20m in radius.
- Programmable VCA: human/vehicle detection, intrusion, line crossing, etc.
- 4Tops Deep-learning AI engine, 8Gb DDR for more AI algorithm updates.
- Alarm driven by multi-rules: line crossing, intrusion, device error, etc
- ONVIF specifications, interoperability between network video products regardless of manufacturer
- Full Interface: RJ45, SD Card, Alarm, Audio, Reset
- - 30°C~55°C (-22 °F ~ 131 °F), Built-in heater and fan, IP66 waterproof, IK10, Metal case.
- Support PoE++(802.3.bt, class6) and DC24V / AC24V
- Support Virtual reality (VR) linkage, e-tags, e-map application with VMS
| Model Specifications | ZTIP-EGMS16M-360D |
|---|---|
| Camera Module | |
| Image Sensor | 1/2.8” progressive scan CMOS image sensor x8 |
| Mini. Illumination | Color：0.008Lux @ (F2.0,AGC ON)；B/W：0.008Lux @(F2.0，AGC ON);0Lux with IR |
| Image setting | Image vertical rotation,Saturation, Brightness, Contrast, Sharpness, AGC, and AWB adjusted by client software/browser |
| Shutter Speed | 1/1 s – 1/100,000 s |
| White Balance | Auto/Manual/Indoor/Outdoor |
| Gain | Auto/Manual |
| Day & Night | IR Cut filter |
| Privacy Mask | 8 Programmable privacy masks |
| Image Enhancement | 3D DNR, Digital zoom, Logo picture Overlay |
| Vertical Rotation | Manual adjustment, 8 pitches, 45°per pitch |
| Lens | |
|---|---|
| Focus Length | 3.3mm,x8 |
| Aperture | F2.0 |
| FOV | Panoramic image: Horizontal FOV: 2×180°(360°)；Vertical FOV: 85° |
| Working distance | 1.0m ~ INF |
| IR | |
|---|---|
| IR Range | 20m in radius,360°(H) ×90°(V) |
| Smart IR | Yes |
| Network | |
|---|---|
| Max Resolution | 8192 ×1800, 25/30fps |
| Main stream | 8192 ×1800 , 3840 × 1680 , 2784 × 1200 (1~30fps) |
| Sub stream | 2048 × 896, 1280 × 560 , 704 × 320 (1~30fps) |
| Third stream | 704 × 320 ( 1~30fps ) |
| Video compression | H.265/H.264/MJPEG |
| Audio compression | G.711 A/U |
| Protocols | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP,UDP, DHCP, PPPoE |
| Simultaneous live view | Up to 6 channels |
| User / Host | Up to 16 users, 3 levels: Administrator, Advanced User and Normal User |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, IEEE802.1x port-based network access control; IP address filtering |
| Smart Features | |
|---|---|
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, SD full, SD error) |
| Smart Detection | Up to 8 regions configurable: Human/vehicle detection and classification, Face comparison, Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection, Scene change detection, etc |
| ROI | Up to 4 regions configurable |
| Alarm Linkage | Upload to FTP/Memory card, send email, trigger alarm output, trigger recording, trigger snapshot |
| System Integration | |
|---|---|
| Alarm Interface | 1CH alarm input; 1CH alarm output |
| Audio Interface | 1CH audio input, 2 to 2.4v[p-p] 1kΩ±10%; 1CH audio output (line out), impedance: 600Ω |
| Network Interface | 1 RJ45 10M/100M/1000M Adaptive Ethernet (Support PoE++(802.3.bt,class 6)) |
| Storage | Built-in memory card slot, support microSD/SDHC/SDXC, up to 256G |
| API | ONVIF, support SDK and third-party management platform |
| Client | NVR N9000 1.4.6, NVMS 2.0(Support VR, e-Tag, e-map application) |
| Web Browser | IE8-11 |
| General | |
|---|---|

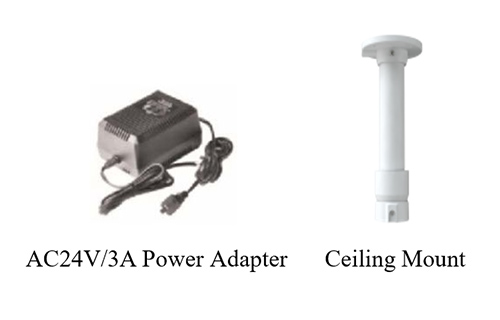

| Power | AC24V,DC24V,PoE++ (802.3.bt, class 6), (Max 45W, include IR on, Fan on and Heater on) |
| Working condition | -30°C ~ 55°C (-22 °F ~ 131 °F),90%RH less (non-condensing),Cold start at – 20°C |
| Storage condition | -40°C ~ 70°C ;≤ 95% RH |
| Protection | IP 66, IK10, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Material | Camera body: Aluminum Alloy; Bubble and IR cover: Plastic |

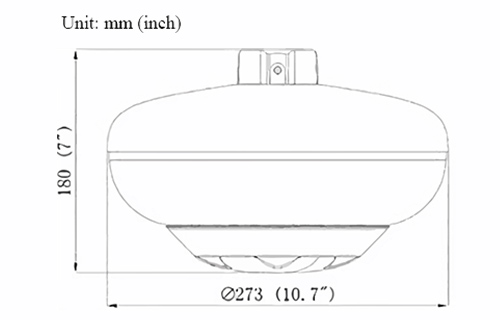

| Dimensions | ￠273mm x H 180mm( ￠10.7” x 7”) |
| Weight | Net weight Approx. 2.0Kg(4.4 lb) |
| Certification | IK10(exclude plastic cover), IP66,ROHS, CE, FC |
