ZTIPD-EGAI8M
ZTIPD-EGAI8M
- Smart H.265/H.264 coding
- Max.resolution: 8MP ( 3840 × 2160 )
- ICR auto switch, true day / night vision
- 3D DNR, true WDR, HLC, BLC and ROI coding
- 20~30m IR night view distance
- 1CH audio input; 1CH built-in MIC
- 1CH alarm input; 1CH alarm output
- Built-in micro SD card slot, up to 256GB
- DC12V/PoE power supply
- Support three streams
- P2P function optional
- IP 67&IK10
- Intelligent analytics
- Support mobile surveillance by smart phones with iOS and Android OS
| Model Specifications | ZTIPD-EGAI8M |
|---|---|
| Camera | |
| Image Sensor | 1 / 2.8″ CMOS |
| Image Size | 3840×2160 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.01 lux @ F1.2, AGC ON; 0 lux with IR 0.02 lux@F1.6, AGC ON; 0 lux with IR |
| Lens | 2.8mm@F1.6, Horizontal FoV:109.7°; Vertical FoV:77.2°; Diagonal FoV:116.9° |
| Focus | Fixed |
| Lens Mount | M12 |
| Day & Night | ICR |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan : 0°~355°, Tilt : 0°~67°, Rotation : 0°~355° |
| Image | |
|---|---|
| Video Compression | Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 8MP ( 3840 × 2160 ), 6MP( 3072 × 2048 ),5MP( 2592 × 1944), 4MP( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream | 60Hz : 8MP/6MP(1~20fps), 5MP/4MP/2K/3MP/1080P/720P(1~30fps) 50Hz : 8MP/6MP(1~20fps), 5MP/4MP/2K/3MP/1080P/720P(1~25fps) HFR Mode: 1080P/720P(60Hz: 1~60fps; 50Hz: 1~50fps) |
| Sub Stream | 720P/D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Third Stream | D1/CIF/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps) |
| Bit Rate | 64 Kbps ~ 12 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Intelligent Analytics (Smart Event) | |
|---|---|
| Perimeter Protection | Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non-motor vehicle classification) |
| Target Counting | Line crossing human/motor vehicle/non-motor vehicle counting |
| Exception Detection | Scene change, video blur and video color cast detection |
| Face Detection | Face detection and face capture |
| General Intelligence | Crowd density detection, heat map, object abandoned/missing detection* |
| Interfaces | |
|---|---|
| Network | RJ45 |
| Video Output | No |
| Audio | 1CH audio input; 1CH audio output; 1 CH built-in MIC |
| Alarm | 1CH alarm input; 1CH alarm output |
| Storage | Built-in micro SD card slot; up to 256GB |
| Reset | Yes |
| Functions | |
|---|---|
| Remote Monitoring | Web browsing, CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTPs, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection; SD card error; SD card full |
| General Function | Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction, etc. |
| IR Distance | 20~30m |
| Protection Grade | IP 67&IK10 |
| PoE | Yes , IEEE802.3af |
| Others | |
|---|---|
| Power Supply | DC12V/PoE |
| Power Consumption | < 9W |
| Operating Environment | – 30 °C ~ 60 °C (-22°F~140°F) Humidity: less than 95 % (non-condensing) |

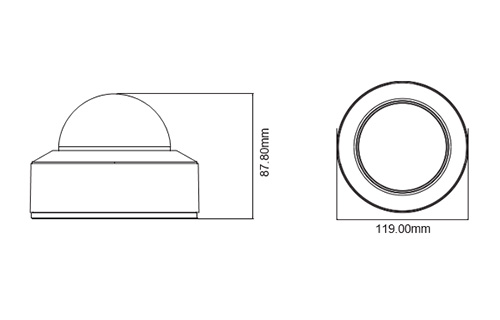

| Dimensions ( mm ) | Φ 119 × 87.8 |
| Weight ( net ) | Approx. 0.64KG |

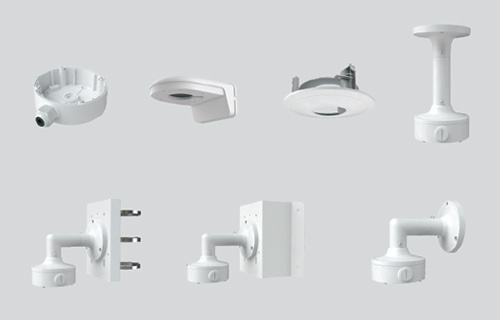

| Installation | Ceiling mounting; Wall mounting |
| Certificate | CE, FCC |
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
