ZTIPD-EGAI4M-AF
ZTIPD-EGAI4M-AF
- 4MP ( 2592 × 1520 ) H.265 full real time coding
- Max. resolution: 2592 × 1520
- ICR auto switch, true day / night
- Motorized Zoom Lens 2.8-12mm
- 30 ~ 50m IR night view distance
- DC12V/PoE power supply
- IP67 &IK10
- Support three streams
- TrueWDR 120dB
- Intelligent analytics
- 3D DNR, true WDR, HLC, BLC, Defog, Smart IR and ROI coding
| Model Specifications | ZTIPD-EGAI4M-AF |
|---|---|
| Camera | |
| Image Sensor | 1 / 3″ CMOS |
| Image Size | 2592 × 1520 |
| Electronic Shutter | 1 / 30 s ~ 1 / 100000 s |
| Iris Type | DC Iris |
| Min. Illumination | 0.0038 lux@F1.4,AGC ON; 0 lux with IR 0.0028 lux@F1.2,AGC ON; 0 lux with IR |
| Lens | 2.8~12mm@F1.4, motorized |
| Field of View | Horizontal: 94.2°~29.8°; Vertical: 62.4°~17°; Diagonal: 102°~33.9° |
| Lens Mount | Φ14 |
| Day & Night | ICR |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~345°; Tilt:0°~77°; Rotation: 0°~345° |
| Image | |
|---|---|
| Video Compression | Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream | 4MP/2K/3MP/1080P/ 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps ) |
| Sub Stream | 720P/D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Third Stream | D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Bit Rate | 64 Kbps ~ 8 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
|---|---|
| Network | RJ45 |
| Video Output | CVBS output (BNC × 1) |
| Audio | 1CH audio input; 1CH audio output; 1CH built-in MIC |
| Storage | Built-in micro SD card slot; up to 128GB |
| Reset | Yes |
| Alarm | 1CH alarm input; 1CH alarm output |
| Intelligent Analytics (Smart Event) | |
|---|---|
| Perimeter Protection | Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non-motor vehicle classification) |
| Target Counting | Line crossing human/motor vehicle/non-motor vehicle counting |
| Exception Detection | Scene change, video blur and video color cast detection |
| Face Detection | Face detection and face capture |
| General Intelligence | Crowd density detection, heat map, object abandoned/missing detection* |
| Functions | |
|---|---|
| Remote Monitoring | Web browsing, CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection, sensor detection, SD card error, SD card full, IP address conflict, cable disconnection |
| General Function | Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch, image distortion |
| PoE | Yes, IEEE802.3af |
| IR Distance | 30 ~ 50 m |
| Ingress Protection | IP67& IK10 |
| Others | |
|---|---|
| Power Supply | DC12V/PoE |
| Power Consumption | < 8W |
| Operating Environment | – 30 °C ~ 60 °C (-22°F~140°F) Humidity: less than 95 % (non-condensing) |

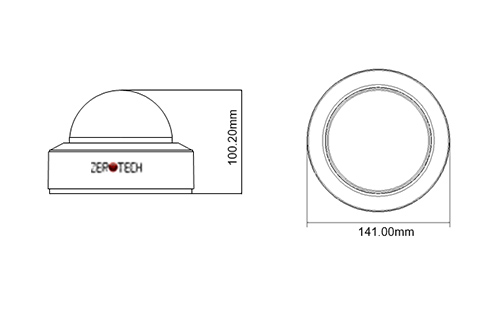

| Dimensions ( mm ) | Φ 141 × 100.2 |
| Weight ( net ) | Approx. 0.93KG |

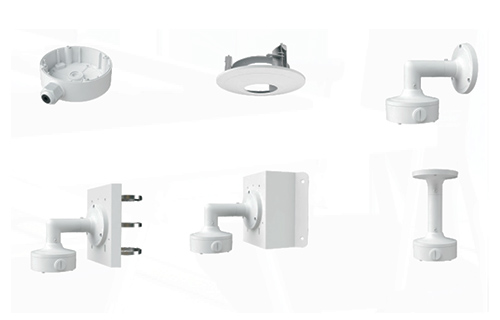

| Installation | Ceiling mounting; wall mounting |
