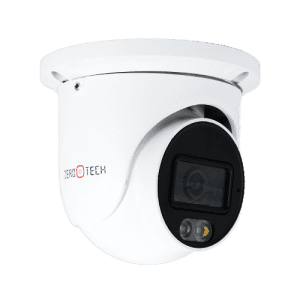

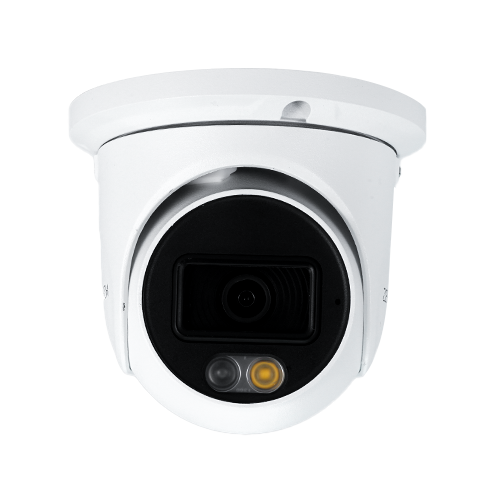

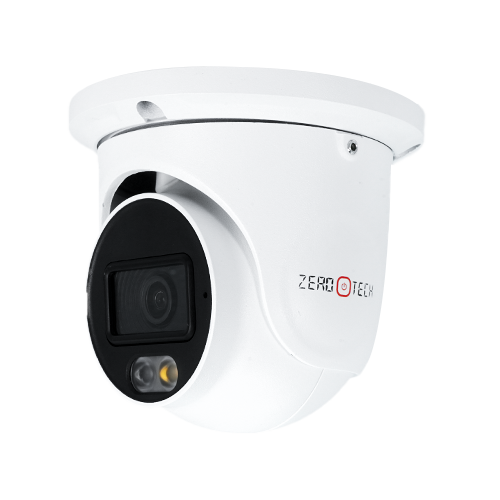

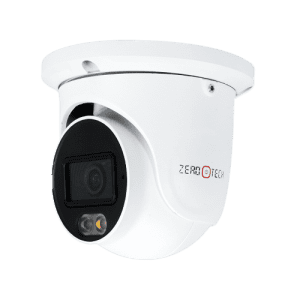

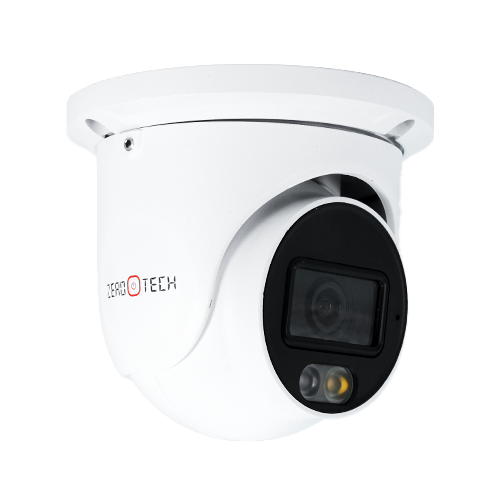

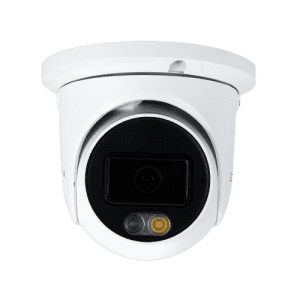

ZTIPD-EG6M-DL
ZTIPD-EG6M-DL
- H.265+ /H.265 /H.264+ /H.264/MJPEG coding
- Max. resolution: 6MP ( 3200 × 1800) Auto day/night switch
- Support P2P function
- 3D DNR, WDR, HLC, BLC, etc.
- ROI coding
- Support smart supplement light
- 20~30m white light view distance; 20~30m IR view distance
- DC12V/PoE power supply
- IP 67 ingress protection
- Support dual streams
- Support remote monitoring by smart phones& tablet PCs with iOS and Android OS
- Support line crossing detection & region intrusion
- detection Support SMD
| Model Specifications | ZTIPD-EG6M-DL | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | 1 / 2.5 “CMOS | ||||||||
| Image Size | 3200×1800 | ||||||||
| Electronic Shutter | 1 / 4 s ~ 1 / 100000s | ||||||||
| Iris Type | Fixed Iris | ||||||||
| Min. Illumination | 0.008 lux @F1.6, AGC ON; 0 lux with illumination on | ||||||||
| Lens | 2.8mm@F1.6, Horizontal FoV: 104°;Vertical FoV:55°;Diagonal FoV:128° 3.6mm@F1.6, Horizontal FoV:78°;Vertical FoV:38°;Diagonal FoV:94° | ||||||||
| Focus | Fixed | ||||||||
| Lens Mount | M12 | ||||||||
| Day&Night | ICR | ||||||||
| Wide Dynamic Range | 120dB | ||||||||
| BLC | Yes | ||||||||
| HLC | Yes | ||||||||
| Digital NR | Yes | ||||||||
| S/N Ratio | ≥50dB | ||||||||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°;Rotation: 0°~360° | ||||||||
| Image | |||||||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub /Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | ||||||||
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier | ||||||||
| Resolution | 6MP ( 3200 × 1800 ), 4MP ( 2688× 1520), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, VGA (640× 480), 480× 240, CIF | ||||||||
| Main Stream | 60Hz: 6MP(1~20fps) /4MP/1080P (1~30fps) 50Hz: 6MP(1~20fps) /4MP/1080P (1~25fps) | ||||||||
| Sub Stream | 720P/D1/VGA/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) | ||||||||
| Third Stream | D1/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) | ||||||||
| Bit Rate | 64 Kbps ~8Mbps | ||||||||
| Bit Rate Type | VBR / CBR | ||||||||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser | ||||||||
| Audio Compression | G711A/U | ||||||||
| ROI | Each ROI to be configured separately | ||||||||
| Interfaces | |||||||||
| Network | RJ45 | ||||||||
| Video Output | No | ||||||||
| Audio | 1CH audio input; 1CH built-in MIC | ||||||||
| Storage | Built-in micro SD card slot, up to 256GB | ||||||||
| Reset | Yes | ||||||||
| Functions | |||||||||
| Remote Monitoring | Web browser NVR/NVMS2.X/Mobile APP | ||||||||
| Web Browser | IE (plug-in required)/Google Chrome/Edge/Firefox/Safari | ||||||||
| Online Connection | Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission | ||||||||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS | ||||||||
| Interface Protocol | ONVIF | ||||||||
| Storage | Network remote storage; micro SD card storage | ||||||||
| Smart Alarm | Motion detection, SMD, SD card full, SD card error | ||||||||
| Smart Event | Video Exception (scene change, video blur and abnormal color detection), line crossing /region intrusion detection(human/motor vehicle/non-motor vehicle classification), abandoned/missing object detection | ||||||||
| General Function | Watermark, IP address filtering, video mask, heartbeat, system config backup, smart supplement light, corridor pattern | ||||||||
| PoE | Yes (IEEE802.3af) | ||||||||
| Supplement Light Range | IR range: 20 ~ 30 m; white light range:20 ~ 30 m | ||||||||
| Ingress Protection | IP67 | ||||||||
| Watermark, video mask, heartbeat | |||||||||
| Security | Video encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP | ||||||||
| Lens | Detect | Observe | Recognize | Identify | |||||
| 2.8mm | 69m(226ft) | 28m(92ft) | 14m(46ft) | 7m(23ft) | |||||
| 3.6mm | 105m(344ft) | 42m(138ft) | 21m(69ft) | 10m(33ft) | |||||
| Others | |||||||||
| Power Supply | DC12V/PoE | ||||||||
| Power Consumption | < 6.5W | ||||||||
| Storage Conditions | – 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | ||||||||
| Operating Conditions | – 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | ||||||||

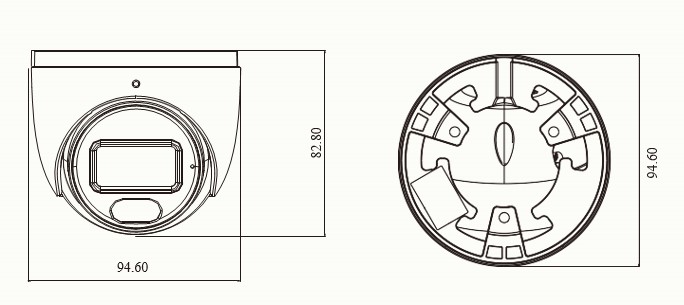

| Dimensions ( mm ) | Φ 94.6 × 82.8 | ||||||||
| Weight ( net ) | Approx. 0.45KG | ||||||||
| Installation | Ceiling mounting; wall mounting | ||||||||
| Certificate | CE, FCC | ||||||||
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | ||||||||
