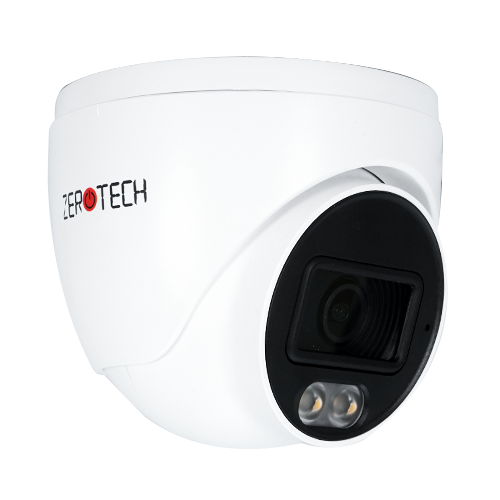

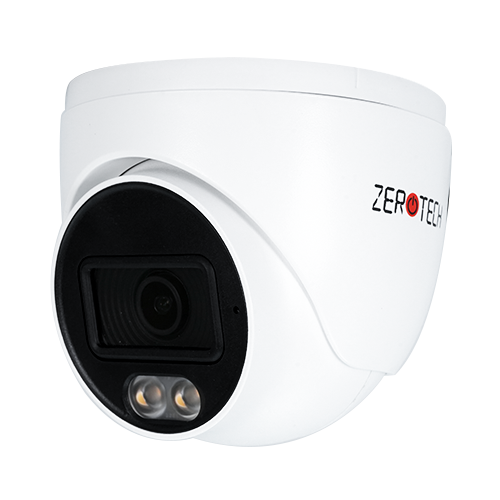

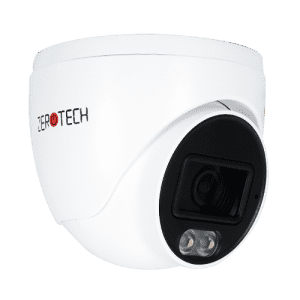

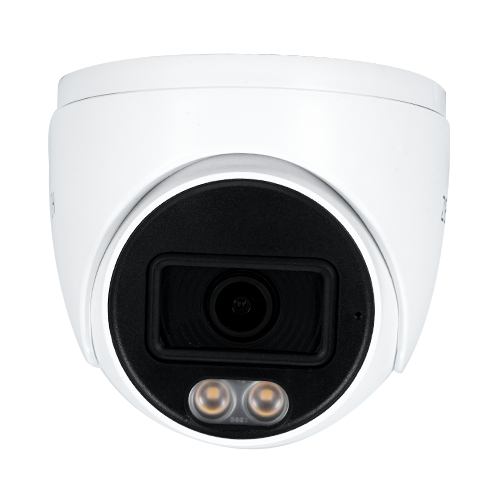

ZTIPD-EG2M-FC
ZTIPD-EG2M-FC
- 2MP ( 1920 × 1080 ) H.265 full real time coding
- Max. resolution: 1920 × 1080
- 20 ~ 30m white light view distance
- 24/7 full color imaging
- 3D DNR, HWDR, HLC and BLC
- ROI coding
- Built-in micro SD card slot, up to 256GB
- DC12V/PoE power supply
- IP67 ingress protection
- Support three streams
- Intelligent Analytics
- Support mobile surveillance by smart phones with iOS and Android OS
| Model Specifications | ZTIPD-EG2M-FC |
|---|---|
| Camera | |
| Image Sensor | 1 / 2.8 “CMOS |
| Image Size | 1920 × 1080 |
| Electronic Shutter | 1 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.002 lux@ F1.0, AGC ON; 0 lux with LED ON |
| S/N Ratio | ≥50dB |
| Lens | 2.8 mm @F1.0, H.FoV: 105.2°; V.FoV:55.5°; D.FoV:125.1° 3.6 mm @F1.0, H.FoV: 84.6°; V.FoV:45.9°; D.FoV:100° |
| Focus | Fixed |
| Lens Mount | M12 |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defog | No |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° |
| Image | |
|---|---|
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, 640 × 480, CIF, 480 × 240 |
| Main Stream | 60Hz:1080P(1~30fps)/720P(1~30fps); 50Hz:1080P(1~25fps)/720P(1~25fps) |
| Sub Stream | 60Hz : D1/CIF/640 × 480 (1~30fps); 50HZ: D1/CIF/640 × 480 (1~25fps) |
| Third Stream | 60Hz : D1/CIF/480×240 (1~30fps); 50HZ: D1/CIF/480×240 (1~25fps) |
| Bit Rate | 128 Kbps ~ 6 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
|---|---|
| Network | RJ 45 |
| Video Output | NO |
| Audio | 1CH audio input; 1CH built-in MIC |
| Storage | Built-in micro SD card slot, up to 256GB |
| Reset | Yes |
| Functions | |
|---|---|
| Remote Monitoring | Web Browser/TVT NVMS2.0/NVR/mobile APP |
| Web Browser | IE(plug-in required)/Google Chrome/Edge/Firefox/Safari |
| Online Connection | Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, 802.1x, SMTP, FTP, UPnP, HTTPs, HTTP, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| Intelligent Analytics | Video exception detection, intrusion detection and line crossing detection, abandoned/missing object detection |
| Smart Alarm | Motion detection, SD card error, SD card full |
| General function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock, corridor pattern |
| PoE | Yes (IEEE802.3af) |
| White Light Range | 20 ~ 30 m |
| Ingress Protection | IP 67 |
| DORI Distance | ||||
|---|---|---|---|---|
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 41.05m(134.67ft) | 16.42m(53.87ft) | 8.21m(26.93ft) | 4.10m(13.45ft) |
| 3.6mm | 51.01m(167.35ft) | 20.40m(66.92ft) | 10.20m(33.46ft) | 5.10m(16.73ft) |
| Others | |
|---|---|
| Power Supply | DC12V/PoE |
| Power Consumption | < 5.5W |
| Storage Conditions | – 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) |
| Operating Conditions | – 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) |
| Dimensions ( mm ) | Φ 94.6 × 82.8 |
| Weight ( net ) | Approx. 0.45KG |
| Installation | Ceiling mounting; wall mounting |
| Certificate | CE, FCC |
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
