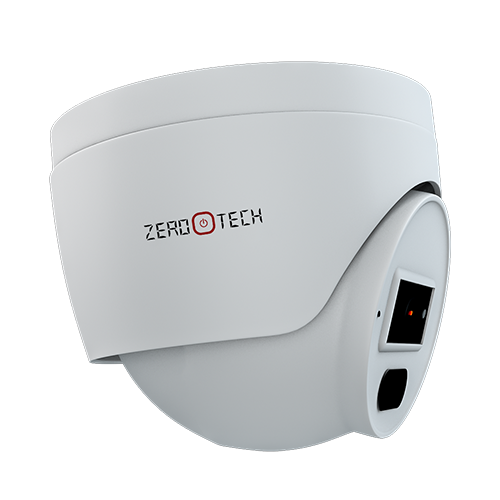

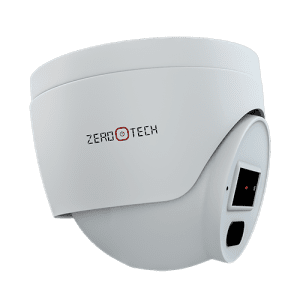

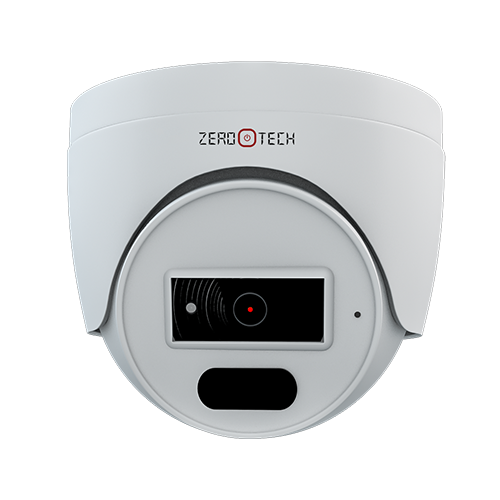

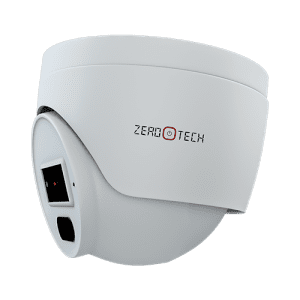

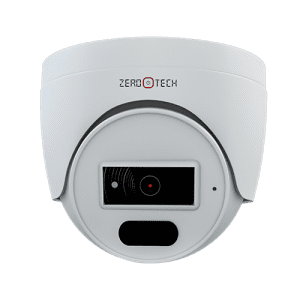

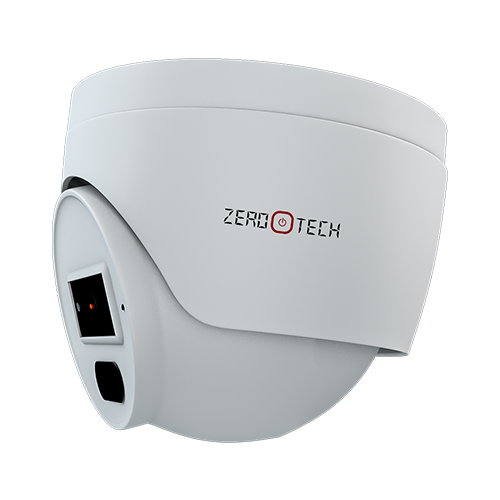

ZTIPD-EG2M-DL
ZTIPD-EG2M-DL
- H.265+ /H.265 /H.264+ /H.264/MJPEG coding
- Max. resolution: 2MP ( 1920 × 1080)
- Auto day/night switch
- 3D DNR, WDR, HLC, BLC, etc.
- ROI coding
- Support smart supplement light
- 20~30m white light view distance; 20~30m IR view
- distance DC12V/PoE power supply
- IP 67 ingress protection
- Support dual streams
- Support remote monitoring by smart phones& tablet PCs with iOS and Android OS
- Support line crossing detection & region intrusion
- detection Support SMD
| Model Specifications | ZTIPD-EG2M-DL | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | 1 / 3 “CMOS | ||||||||
| Image Size | 1920×1080 | ||||||||
| Electronic Shutter | 1 / 3s ~ 1 / 100000s | ||||||||
| Iris Type | Fixed Iris | ||||||||
| Min. Illumination | 0.02 lux @F2.2, AGC ON; 0 lux (Illumination on) | ||||||||
| Lens | 2.8mm@F2.2, Horizontal FoV: 95°;Vertical FoV:55°;Diagonal FoV:109° 3.6mm@F2.2, Horizontal FoV:75°;Vertical FoV:41°;Diagonal FoV:86° | ||||||||
| Focus | Fixed | ||||||||
| Lens Mount | M12 | ||||||||
| Day&Night | ICR | ||||||||
| Wide Dynamic Range | Digital WDR | ||||||||
| BLC | Yes | ||||||||
| HLC | Yes | ||||||||
| Digital NR | Yes | ||||||||
| S/N Ratio | ≥50dB | ||||||||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°;Rotation: 0°~360° | ||||||||
| DORI Distance | |||||||||
| Lens | Detect | Observe | Recognize | Identify | |||||
| 2.8mm | 41m(133ft) | 17m(55ft) | 8m(26ft) | 4m(13ft) | |||||
| 3.6mm | 58m(190ft) | 23m(75ft) | 12m(39ft) | 6m(19ft) | |||||
| Image | |||||||||
| Video Compression | Main stream: H.265+ / H.265 / H.264 + / H.264 Sub stream: H.265+ / H.265 / H.264 + / H.264 / MJPEG | ||||||||
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier | ||||||||
| Resolution | 1080P (1920×1080), 720P(1280×720), D1, VGA(640×480), 480×240, CIF | ||||||||
| Main Stream | 1080P/720P(60Hz: 1~30fps; 50Hz: 1~25fps) | ||||||||
| Sub Stream | D1/VGA/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) | ||||||||
| Bit Rate | 64 Kbps ~ 3 Mbps | ||||||||
| Bit Rate Type | VBR / CBR | ||||||||
| Audio Compression | G711A/U | ||||||||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser | ||||||||
| ROI | Each ROI to be configured separately | ||||||||
| Interfaces | Interfaces | ||||||||
| Network | RJ45 | ||||||||
| Video Output | No | ||||||||
| Audio | 1CH built-in MIC | ||||||||
| Storage | No | ||||||||
| Reset | No | ||||||||
| Functions | |||||||||
| Remote Monitoring | Web browser / NVR/NVMS2.X/Mobile APP | ||||||||
| Web Browser | IE 11 (plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ | ||||||||
| Online Connection | Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission | ||||||||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, 802.1x, HTTP | ||||||||
| Interface Protocol | ONVIF | ||||||||
| Storage | Network remote storage | ||||||||
| Motion Detection | Support smart motion detection; filtering motion alarm triggered by other target types except humans. | ||||||||
| Smart Event | (Human) region intrusion detection, (human)line crossing detection | ||||||||
| General Function | Watermark, video mask, heartbeat | ||||||||
| Security | Video encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP | ||||||||
| PoE | Yes, IEEE802.3af | ||||||||
| Supplement Light Range | IR range: 20 ~ 30 m; white light range:20 ~ 30 m | ||||||||
| Ingress Protection | IP67 | ||||||||
| Others | |||||||||
| Power Supply | DC12V/PoE | ||||||||
| Power Consumption | < 5W | ||||||||
| Operating Environment | – 20 °C ~ 55 °C (-4°F~131°F); Humidity: less than 95 % (non-condensing) | ||||||||
| Storage Environmen | – 20 °C ~ 60°C (-4°F~140°F), Humidity: less than 95 % (non-condensing) | ||||||||

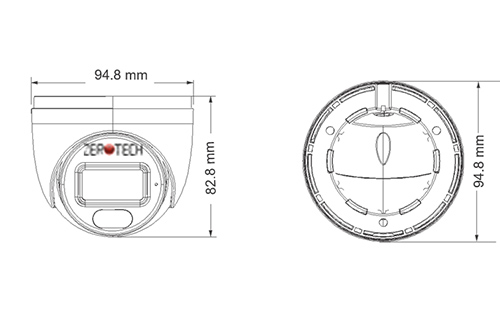

| Dimensions ( mm ) | Φ 94.8 × 82.8 | ||||||||
| Weight ( net ) | Approx. 0.28KG | ||||||||

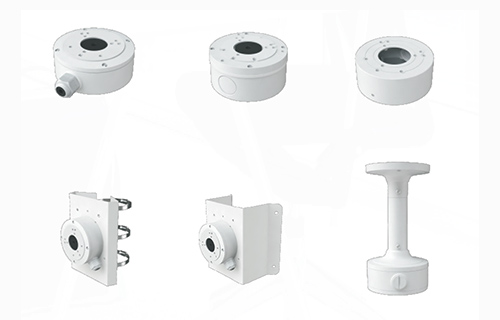

| Installation | Ceiling mounting; Wall mounting | ||||||||
| Certificate | CE, FCC | ||||||||
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | ||||||||
