ZTIPD-EG2M-AF
ZTIPD-EG2M-AF
- H.265+ /H.265 /H.264+/H.264/MJPEG coding
- Max.resolution: 2MP ( 1920 × 108)
- ICR auto switch, true day / night vision
- Starlight
- 3D DNR, WDR, HLC, BLC, smart IR, etc
- 30~50m IR night view distance
- Built-in micro SD card slot, up to 256GB
- 1CH built-in MIC; 1CH audio input
- DC12V/PoE power supply
- IP 67 ingress protection
- Support three streams
- Support remote monitoring by smart phones& tablet PCs with iOS and Android OS
- Intelligent analytics
| Model Specifications | ZTIPD-EG2M-AF |
|---|---|
| Camera | |
| Image Sensor | 1 / 2.8 “CMOS |
| Image Size | 1920 x 1080 |
| Electronic Shutter | 1/2s ~ 1 / 100000s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.005 lux @F1.6, AGC ON; 0 lux with IR |
| Lens | 2.8~12mm@ F1.4 |
| Field of View | Horizontal : 102.5 °~33.6 °; Vertical: 54.3 °~19°; Diagonal: 121 °~ 37.8 ° |
| Focus | Manual or motorized |
| Lens Mount | Ø14 |
| Day&Night | ICR |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Digital NR | Yes |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°;Rotation: 0°~360° |
| Image | |
|---|---|
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+/ H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+/ H.264 / MJPEG |
| H.264 Compression Standard | Main Profile@Leve4.1 High Tier |
| Resolution | 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, 640× 480, 480× 240, CIF |
| Main Stream | 60Hz: 1080P/720P(1~30fps); 50Hz: 1080P/720P(1~25fps) |
| Sub Stream | 60Hz: D1/640× 480/CIF (1~30fps);50Hz: D1/640× 480/CIF (1~25fps) |
| Third Stream | 60Hz: D1/480× 240/CIF (1~30fps);50Hz: D1/480× 240/CIF(1~25fps) |
| Bit Rate | 128 Kbps ~ 6 Mbps |
| Bit Rate Type | VBR / CBR |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces |
|
|---|---|
| Network | RJ45 |
| Video Output | No |
| Audio | 1CH audio input; 1CH built-in MIC |
| Storage | Built-in micro SD card slot, up to 256GB |
| Reset | Yes |
| Functions | |
|---|---|
| Remote Monitoring | Web browser /TVT NVR/NVMS2.X/Mobile APP |
| Web Browser | IE (plug-in required)/Google Chrome/Edge/Firefox/Safari |
| Online Connection | Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, RTMP, HTTP, HTTPs, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection, SD card full, SD card error |
| Smart Event | Video exception (scene change, video blur and video cast detection), region intrusion detection, line crossing detection, abandoned/missing object detection |
| General Function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock, corridor pattern |
| PoE | Yes |
| IR Distance | 30 ~ 50 m |
| Ingress Protection | IP67 |
| DORI Distance | ||||
|---|---|---|---|---|
| Lens | Detect | Observe | Recognize | Identify |
| 2.8~12mm(W) | 43.13m(141.50ft) | 17.25m(56.59ft) | 8.63m(28.31ft) | 4.31m(14.14ft) |
| 2.8~12mm(T) | 131.90m(432.74ft) | 52.76m(173.09ft) | 26.38m(86.54ft) | 13.19m(43.27ft) |
| Others | |
|---|---|
| Power Supply | DC12V/PoE |
| Power Consumption | < 8W |
| Operating Environment | – 30 °C ~ 60 °C (-22°F~140°F);Humidity: less than 95 % (non-condensing) |
| Storage Environment | – 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) |

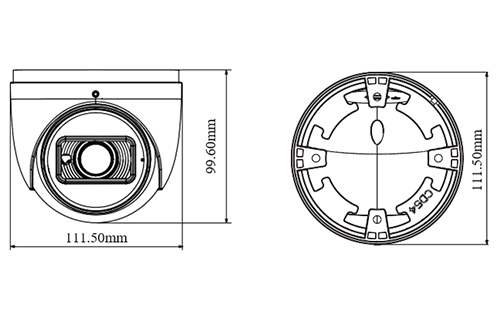

| Dimensions ( mm ) | Ø 111.5 × 99.6 |
| Weight ( net ) | Approx. 0.65KG |

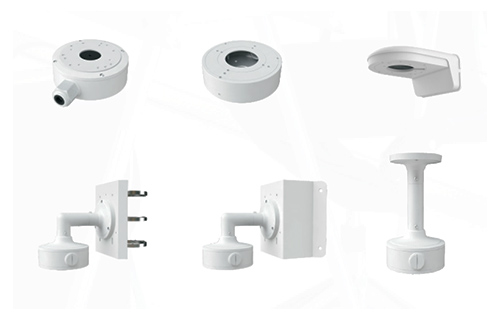

| Installation | Ceiling mounting; Wall mounting |
| Certificate | CE, FCC |
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
