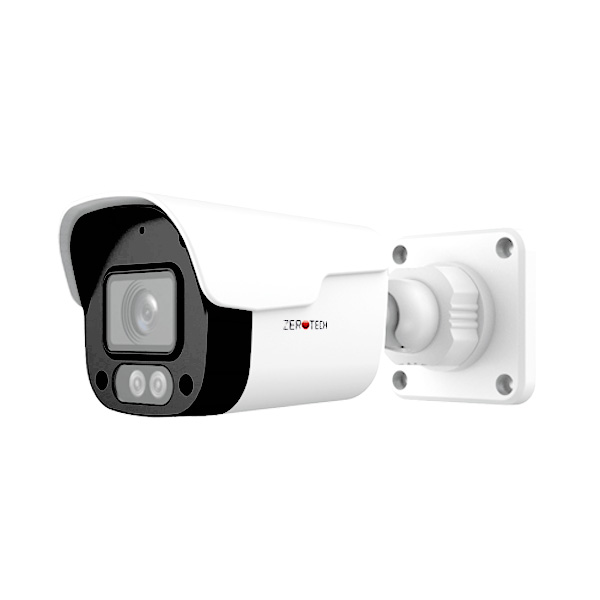

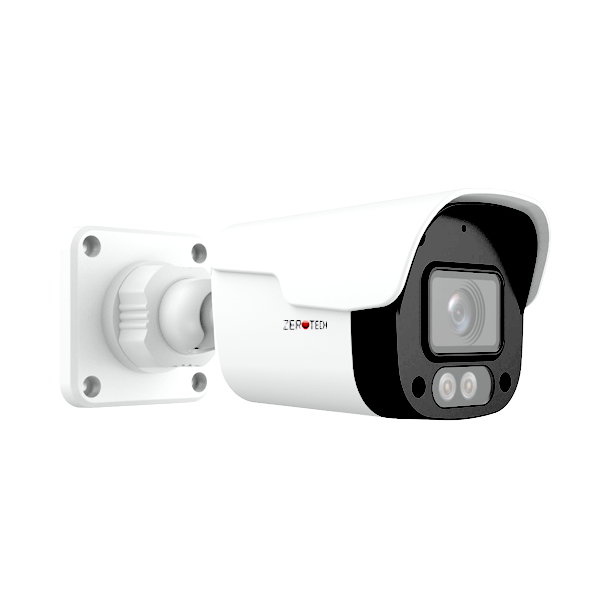

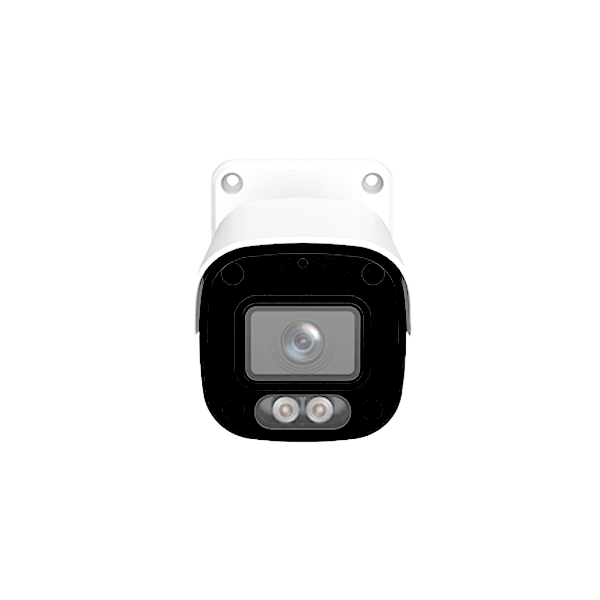

ZTIPBP-L4M-DL
ZTIPBP-L4M-DL
- Image Sensor Image Sensor 1/3" Progressive Scan CMOS Sensor
- Resolution 4MP
- Effective Pixels 1928(H)*1088(V)
- Compression H.264/H.265/MJPEG
- Fixed focal lens, 2.8 and 4mm optional
- Support ONVIF 24.12(Profile S/T/M) , POE ,P2P , DWDR
- IR 40m Warm light 30m
- Plastic , IP66
| Model Specifications | ZTIPBP-L4M-DL | ||
|---|---|---|---|
| Camera | |||
| Image Sensor | 1/3″ Progressive Scan CMOS Sensor | ||
| Resolution | 4MP | ||
| Effective Pixels | 1928(H)*1088(V) | ||
| Compression | H.264/H.265/MJPEG | ||
| Audio Compression | G711A/U,AAC | ||
| TV System | PAL/NTSC | ||
| Electronic Shutter Time | Auto: 1/3-1/100000Sec | ||
| Minimun Illumination | Color: 0.01 Lux@(F2.0, AGC ON), 0 Lux with white light, B/W: 0 Lux with IR | ||
| S/N Ratio | 60dB | ||
| Scanning System | Progressive | ||
| Video Output | Network | ||
| Reset Button | Optional | ||
| Lens | |||
| Focal Length & FOV | 2.8 mm, horizontal FOV 95°, vertical FOV 53°, diagonal FOV 114° 4 mm, horizontal FOV 73°, vertical FOV 40°, diagonal FOV 88° | ||
| Lens Type | Fixed focal lens, 2.8 and 4mm optional | ||
| Focus Control | Fixed | ||
| Aperture | F2.0 | ||
| Pixels | 3MP | ||
| Night Vision | |||
| Supplement Light | IR 2PCS Warm light 2PCS | ||
| Supplement Light Distance | IR 40m Warm light 30m | ||
| Supplement Light Status | Auto Control | ||
| Supplement Light Power On | Smart, Manual & Timed mode | ||
| Network | |||
| Ethernet | RJ-45 (10/100Base-T) | ||
| Wireless | N/A | ||
| Protocol | TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, RTCP, NTP, SMTP, UDP, Qos, 802.1x | ||
| ONVIF | Support ONVIF 19.12(Profile S/T) | ||
| P2P | YES | ||
| POE | Internal, Support IEEE 802.3af | ||
| Video Delay | 300ms (Within the Lan) | ||
| Main Stream 1 | 2560*1440@25fps | ||
| Main Stream 2 | 1920*1080@30fps | ||
| Main Stream 3 | 1280*720@30fps | ||
| Sub Stream 1 | 720*480@25/30fps | ||
| Sub Stream 2 | 640*360@25/30fps | ||
| Sub Stream 3 | 352*288@25/30fps | ||
| Tri Stream | N/A | ||
| IE Brower | Microsoft Edge, IE11, Google Chrome, Firefox, Mac Safari | ||
| Smart Phone | iPhone, Android | ||
| AI Function | |||
| Intelligent Analysis | Intrusion Detetion(based on human detection),motion detection based on human detection | ||
| Camera Features | |||
| Day/Night | Color/ B&W (IR-CUT ) | ||
| Image Config | Saturation/Brightness/Contrast/Sharpness, Mirror, 3D NR, White Balance, Anti Flicker, HLC, Distortion | ||
| Full Color | Support | ||
| Corridor Pattern | N/A | ||
| Defog Mode | N/A | ||
| ROI | N/A | ||
| BLC | Support | ||
| WDR | DWDR | ||
| Motion Detection | Support(support enable the detection based on human movement only) | ||
| Privacy Masking | 3 Rectangular Zone | ||
| Recording Mode | NVR/CMS/Web | ||
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French,Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese | ||
| Interface | |||
| Audio | Default: Built in Mic | ||
| Option: Audio In | N/A | ||
| Alarm | N/A | ||
| SD Card Slot | N/A | ||
| RS485 | N/A | ||
| General | |||
| Housing | Plastic , IP66 | ||
| Anti-cut Bracket | NO | ||
| IR Cut Filter | YES | ||
| Operation Temperature | -20℃ ~ +50℃ RH95% Max | ||
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | ||
| Power Source | DC12V±10%, 700mA | ||
| Dimension | 174(W) x 67.9(H) x 69.8(D)mm | ||
| Weight | 182.6g | ||
