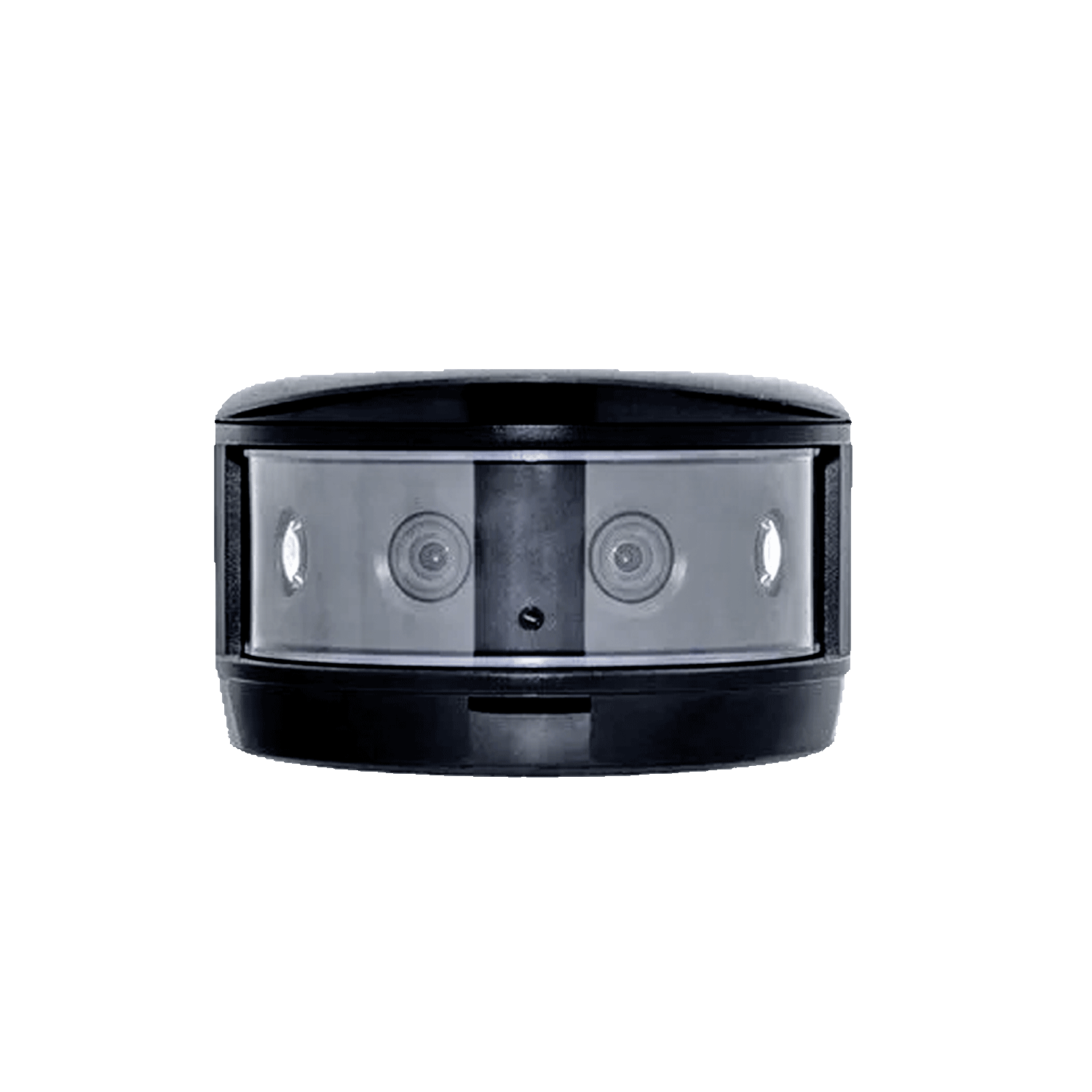

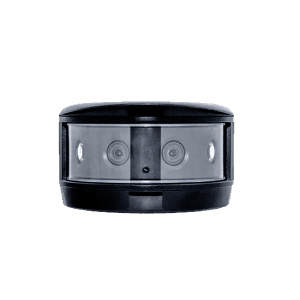

ZTIPB-X8MPAN
ZTIPB-X8MPAN
- Max. resolution: 8MP ( 4096 × 1800)
- Starlight, HLC, Defog
- Adopt 4 high-performance 2MP 1/2.8" CMOS image sensors
- 180° panoramic view brings out more clear details and deeper depth of field compared with the traditional fisheye camera
- Support panoramic splicing images; multi-screen display mode will provide excellent hands-on experience for clients
- Lens 3.3mm
- Support smart IR function so that overexposure will not appear in most scenes; Up to 20m night view distance
- Built-in micro SD card slot, up to 128GB
- Intelligent Analytics (optional): object removal detection, abnormal video signal detection, line crossing detection, region intrusion detection and people intrusion detection
- IP67 ingress protection
- PoE
| Model Specifications | ZTIPB-X8MPAN |
|---|---|
| Camera | |
| Image Sensor | Four 1 / 2.8 ” Progressive Scan CMOS |
| Max. Resolution | 4096 × 1800 |
| Electronic Shutter | 1 s ~ 1 / 10000 s; auto/manual |
| Day & Night | IR-CUT |
| S/N Ratio | >50dB |
| NR | 2D/3D DNR |
| Gain Control | Manual/auto |
| White Balance | Manual/auto/indoor/outdoor |
| HLC | Yes |
| Lens | 3.3mm |
| Lens Mount | M12 |
| Field of View | Pan: ≥180°; Tilt: 80° |
| Min. Illumination | Color: 0.03Lux B&W: 0.001Lux 0 Lux with IR |
| IR Distance | Up to 20m |
| IR LEDs | Eight |
| Smart IR | Yes |
| Image & Encoding | |
|---|---|
| Video Compression | H.265 / H.264 / MJPEG |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| Audio Compression | G.711A/U |
| Resolution | 4096 × 1800, 3480× 1680 ), 2880 × 1264, 1024 × 452, 704 × 320 |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, NR, etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Smart Features | |
|---|---|
| Basic Event | Motion detection, video tempering detection, SD card error, IP conflict, cable disconnection |
| Smart Event | Object removal detection, regional intrusion detection, abnormal video detection, line crossing detection, people intrusion, people counting (optional) |
| Alarm Linkage | SD card record, triggering record, notifying control center, uploading SD card, sending E-mail |
| Network | |
|---|---|
| Protocols | HTTP, HTTPs, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, PPPoE, DHCP |
| API | ONVIF, API, SDK |
| Simultaneous Live View | Up to 10 channels |
| User/Host | Up to 10 accounts; 3 levels: administrator, advanced user, normal user |
| Security Measures | User authentication; host authentication (MAC address); HTTPs encryption; IEEE802.1x port-based network access control; IP address filtering |
| Interfaces | |
|---|---|
| Storage | Built-in micro SD card slot, up to 128GB |
| Audio | 1CH audio input; 1CH audio output |
| Network | 1 RJ 45 10M/100M Ethernet port, PoE (802.3af) |
| RS 485 | 1 CH; Pelco-D/P protocol, custom protocols available |
| Alarm | 1CH alarm input; 1CH alarm output |
| General | |
|---|---|
| Power | PoE(802.3af) |
| Working Environment | Temperature: -30°C~60°C Humidity: <95% (non-condensing) |
| Protection Grade | IP 67, IK 10, TVS6000V lightning protection, surge protection and voltage transient protection |
| Weight | Approx. 2.1KG (net); Approx. 3.61KG (gross) |
