ZTIPB-EGAI5M-FC
ZTIPB-EGAI5M-FC
- 5MP ( 2592 × 1944 ) H.265 full real time coding
- Max. resolution: 2592 × 1944
- 20 ~ 30m white light view distance
- 24/7 full color imaging
- 3D DNR, true WDR, HLC, BLC, Defog, and ROI coding
- 1CH audio input
- Built-in micro SD card slot, up to 256GB
- DC12V/PoE power supply
- IP67 ingress protection
- Support three streams
- with iOS and Android OS
- Intelligent Analytics
- Support remote monitoring by smart phones & tablet PCs
| Model Specifications | ZTIPB-EGAI5M-FC |
|---|---|
| Camera | |
| Image Sensor | 1 / 2.7 “CMOS |
| Image Size | 2592 × 1944 |
| Electronic Shutter | 1 / 2 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.006 Lux@ F1.0, AGC ON; 0 Lux with LED ON, AGC ON |
| S/N Ratio | ≥50dB |
| Lens | 2.8 mm@F1.0, horizontal FoV: 97°; vertical FoV: 72°; diagonal FoV:128° 3.6 mm@F1.0, horizontal FoV: 78°; vertical FoV: 58°; diagonal FoV:101° |
| Focus | Fixed |
| Lens Mount | M12 |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° |
| Image | |
|---|---|
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 5MP (2592×1944 ), 4MP (2592×1520), 2K (2560×1440), 3MP(2304× 1296 ),1080P (1920×1080), 720P (1280×720 ), D1, CIF, 480×240 |
| Main Stream | 5MP/4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Sub Stream | 720P/D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Third Stream | D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Bit Rate | 64 Kbps ~ 8 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
|---|---|
| Network | RJ 45 |
| Video Output | NO |
| Audio | 1CH audio input |
| Storage | Built-in micro SD card slot; up to 256GB |
| Reset | Yes |
| Alarm | No |
| Intelligent Analytics (Smart Events) | |
|---|---|
| Perimeter Protection | Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ nonmotor vehicle classification) |
| Statistics | Target counting by line/area, heat map |
| Exception Detection | Scene change, video blur and video cast detection |
| Face Detection | Face detection and face capture |
| Other Events | Abandoned/missing object detection, crowd density detection |
| DORI Distance | ||||
|---|---|---|---|---|
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 53.51m(175.55ft) | 21.40m(70.20ft) | 10.70m(35.10ft) | 5.35m(17.55ft) |
| 3.6mm | 70.14m(230.11ft) | 28.05m(92.02ft) | 14.02m(45.99ft) | 7.01m(22.99ft) |
| Functions | |
|---|---|
| Remote Monitoring | Web Browser/TVT NVMS2.0/NVR/mobile APP |
| Web Browser | IE(plug-in required)/Google Chrome/Edge/Firefox/Safari |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, HTTP POST, RTMP, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection, SD card error, SD card full |
| General function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock, corridor pattern |
| PoE | Yes , IEEE802.3af |
| White Light Range | 20~30 m |
| Ingress Protection | IP67 |
| Others | |
|---|---|
| Power Supply | DC12V/PoE |
| Power Consumption | < 7W |
| Storage Conditions | – 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) |
| Operating Conditions | – 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) |

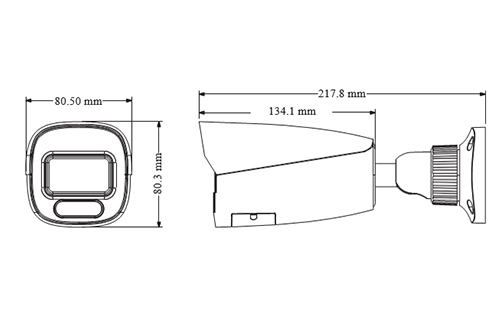

| Dimensions ( mm ) | 217.8 × 80.5 × 80.3 |
| Weight ( net ) | Approx. 0.68KG |
| Installation | Ceiling mounting; Wall mounting |
| Certificate | CE, FCC |
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
