ZTIPB-EGAI4M-AF
ZTIPB-EGAI4M-AF
- 4MP ( 2592 × 1520 ) H.265 full real time coding
- Max. resolution: 2592 × 1520
- ICR auto switch, true day / night vision
- Up to 50m IR night view distance
- 3D DNR, true WDR, HLC, BLC, Defog, NIR, Smart IR and ROI coding
- Lens 2.8~12mm@F1.4, H.FoV: 94.2°~ 29.8°; V.Fov: 62.4°~17°; D.FoV: 102°~33.9° motorized 2.7:13.5 mm optional
- 1CH audio input
- Built-in micro SD card slot, up to 128GB, PoE
- IP 67 ingress protection Support three streams P2P function optional
- Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
- Intelligent analytics
| Model Specifications | ZTIPB-EGAI4M-AF |
|---|---|
| Camera | |
| Image Sensor | 1 / 3 “CMOS |
| Image Size | 2592 × 1520 |
| Electronic Shutter | 1 / 30 s ~ 1 / 100000 s |
| Iris Type | DC Iris |
| Min. Illumination | 0.005 lux@F1.6,AGC ON; 0 lux with IR 0.0028 lux@F1.2,AGC ON; 0 lux with IR |
| Lens | 2.8~12mm@F1.4, H.FoV: 94.2°~ 29.8°; V.Fov: 62.4°~17°; D.FoV: 102°~33.9° motorized 2.7:13.5 mm optional |
| Focus | Motorized |
| Lens Mount | Φ14 |
| Day& Night | ICR |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° |
| Image | |
|---|---|
| Video Compression | Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream | 4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps ) |
| Sub Stream | 720P/D1/CIF/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps |
| Third Stream | D1/CIF/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps) |
| Bit Rate | 64 Kbps ~ 8 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
|---|---|
| Network | RJ45 |
| Video Output | No |
| Audio | 1CH audio input |
| Storage | Built-in micro SD card slot; up to 128GB |
| Reset | Yes |
| Alarm | No |
| Intelligent Analytics (Smart Events) | |
|---|---|
| Perimeter Protection | Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non-motor vehicle classification) |
| Target Counting | Line crossing human/motor vehicle/non-motor vehicle counting |
| Exception Detection | Scene change, video blur and video cast detection |
| Face Detection | Face detection and face capture |
| General Intelligence | Crowd density detection, heat map, object abandoned/missing detection* |
| Functions | |
|---|---|
| Remote Monitoring | Web browsing, CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTPs, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection; SD card error; SD card full |
| General function | Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch, image distortion correction |
| PoE | Yes (IEEE802.3af) |
| IR Distance | Up to 50 m |
| Protection Grade | IP 67 |
| Others | |
|---|---|
| Power Supply | PoE |
| Power Consumption | < 9.5W |
| Operating Environment | – 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) |

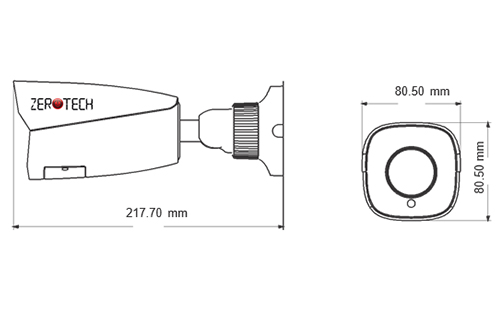

| Dimensions ( mm ) | 217.7 × 80.5 × 80.5 |
| Weight ( net ) | Approx. 0.69KG |

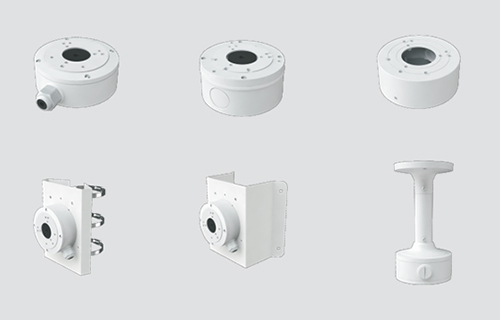

| Installation | Ceiling mounting; Wall mounting |
