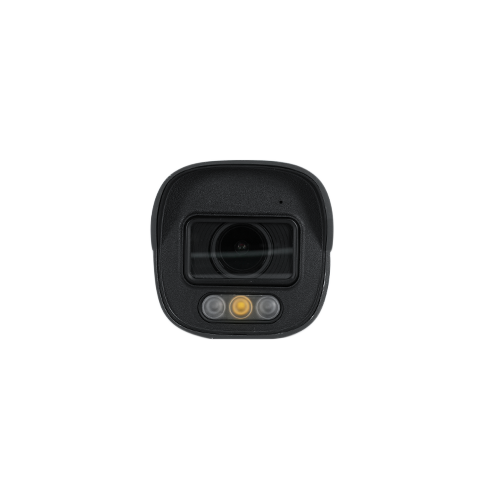

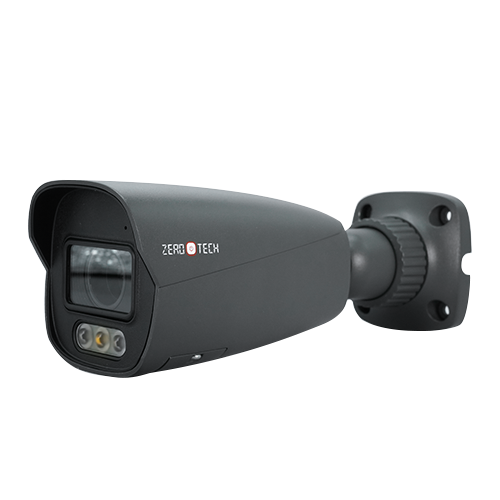

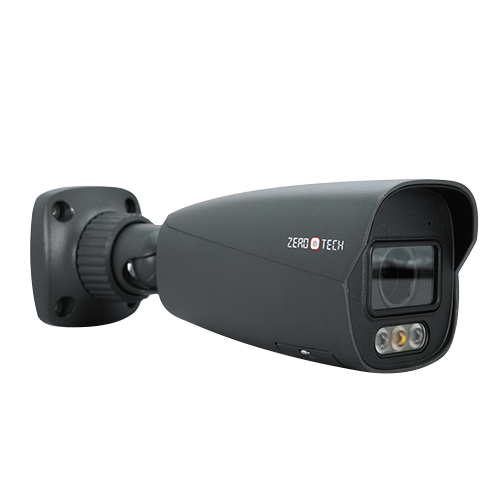

ZTIPB-EG6M-AF-DL
ZTIPB-EG6M-AF-DL
- H.265+ /H.265 /H.264+ /H.264/MJPEG coding
- Max.resolution: 6MP (3200×1800) Auto day/night switch
- 3D DNR, HWDR, HLC, BLC, etc.
- ROI coding
- Support smart supplement light
- IR range: 60-80 Meter white light - 60-80 Meter IR View
- DC12V/PoE power supply
- IP 67
- Support remote monitoring by smart phones& tablet PCs with iOS and Android OS
- Support P2P function
- Support SMD
| Model Specifications | ZTIPB-EG6M-AF-DL | |||
|---|---|---|---|---|
| Camera | ||||
| Image Sensor | 1 / 2.5 “CMOS | |||
| Image Size | 3200×1800 | |||
| Electronic Shutter | 1 / 4 s ~ 1 / 100000s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.008 lux @F1.6, AGC ON; 0 lux with illumination on | |||
| Lens | 2.8mm@F1.6, Horizontal FoV: 104°; Vertical FoV:55°;Diagonal FoV:128° 3.6mm@F1.6, Horizontal FoV:78°; Vertical FoV:38°;Diagonal FoV:94° | 2.8~12mm@F1.6, H.FoV: 108°~36°; V.Fov: 57°~20°;D.FoV: 129°~42° | ||
| Focus | Fixed | Motorized Φ | ||
| Lens Mount | M12 | 14 | ||
| Day&Night | ICR | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Digital NR | Yes | |||
| S/N Ratio | ≥50dB | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~90°;Rotation: 0°~360° 3AXIS | |||
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub /Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |||
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier | |||
| Resolution | 6MP ( 3200 × 1800 ), 4MP ( 2688× 1520), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, VGA (640× 480), 480× 240, CIF | |||
| Main Stream | 60Hz: 6MP(1~20fps) /4MP/1080P (1~30fps) 50Hz: 6MP(1~20fps) /4MP/1080P (1~25fps) | |||
| Sub Stream | 720P/D1/VGA/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Third Stream | D1/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Bit Rate | 64 Kbps ~8Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser | |||
| Audio Compression | G711A/U | |||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ45 | |||
| Video Output | No | |||
| Audio | 1CH audio input; 1CH built-in MIC | |||
| Storage | Built-in micro SD card slot, up to 256GB | |||
| Reset | Yes | |||
| Intelligent analytics (Smart Event) | ||||
| Perimeter Protection | Creation of virtual lines and enter / exit zone creation (human/motor vehicle/ non-motor vehicle classification) | |||
| Target Counting | Line crossing human/motor vehicle/non-motor vehicle counting object tracking , appear /disappear | |||
| Exception Detection | Scene change, video blur and video color cast detection | |||
| Functions | ||||
| Remote Monitoring | Web browser NVR/NVMS2.X/Mobile APP | |||
| Web Browser | IE (plug-in required)/Google Chrome/Edge/Firefox/Safari | |||
| Online Connection | Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS | |||
| Interface Protocol | ONVIF | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection, SMD, SD card full, SD card error | |||
| Smart Event | Video Exception (scene change, video blur and abnormal color detection), line crossing /region intrusion detection(human/motor vehicle/non-motor vehicle classification), abandoned/missing object detection | |||
| General Function | Watermark, IP address filtering, video mask, heartbeat, system config backup, smart supplement light, corridor pattern | |||
| PoE | Yes (IEEE802.3af) | |||
| Supplement Light Range | IR range: 60-80 Meter white light – 60-80 Meter IR View | |||
| Ingress Protection | IP67 | |||
| Security | Video encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 69m(226ft) | 28m(92ft) | 14m(46ft) | 7m(23ft) |
| 3.6mm | 105m(344ft) | 42m(138ft) | 21m(69ft) | 10m(33ft) |
| 2.8~12mm(W) | 66m(218ft) | 27m(87ft) | 13m(44ft) | 7m(23ft) |
| 2.8~12mm(T) | 204m(669ft) | 82m(269ft) | 41m(135ft) | 20m(66ft) |
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | <9.5W | |||
| Storage Conditions | – 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Operating Conditions | – 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||

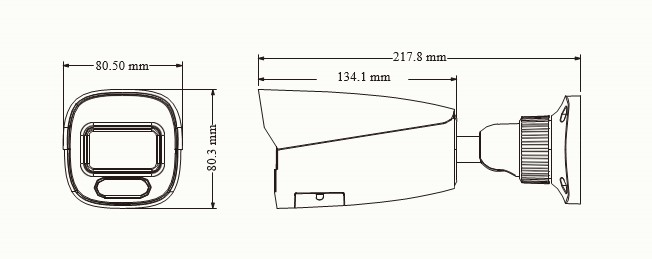

| Dimensions ( mm ) | 217.8 × 80.5 × 80.3 | |||
| Weight ( net ) | Approx. 0.68KG | |||

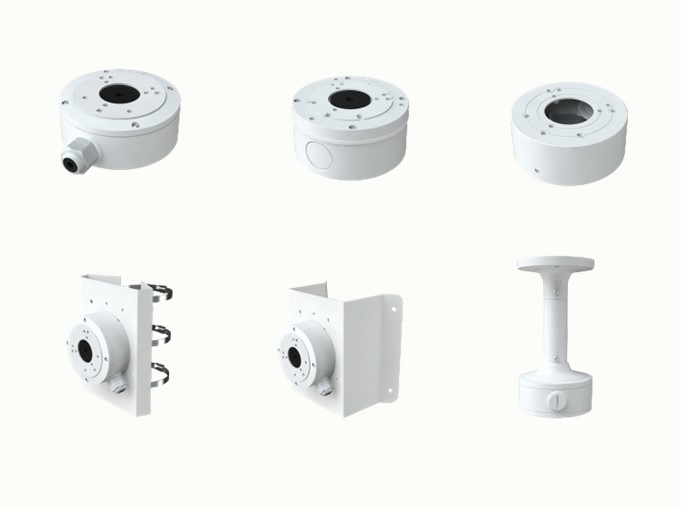

| Installation | Ceiling mounting; wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
