ZeroTech

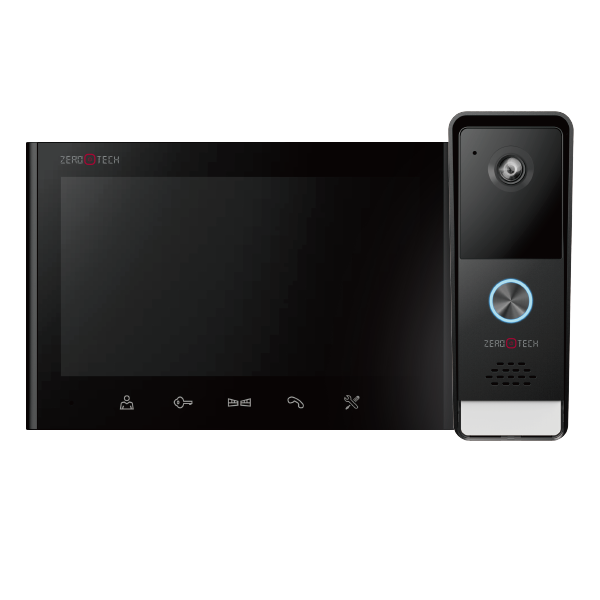

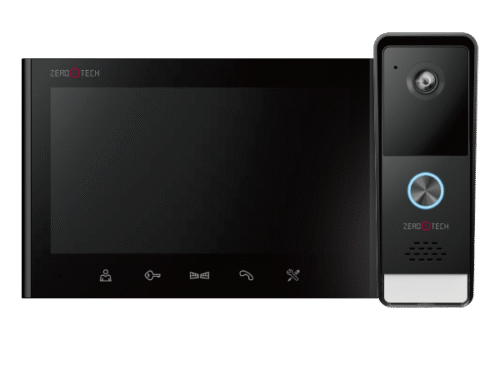

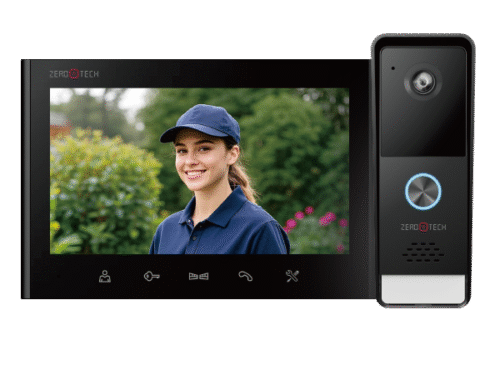

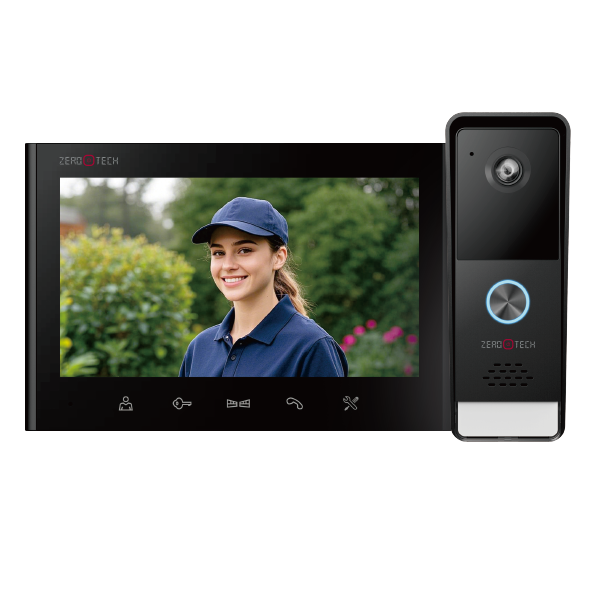

ZTI-AVK271R


ZTI-AVK271R

Model SpecificationsZTI-AVK271R
Indoor unit
Power SupplyInput: AC100-240V 50/60Hz
Output: DC12V 2A
Power ConsumptionStatic State<3W, Working State<9W
Screen Size7″ TFT
Screen Resolution1024×600(RGB)
Talking Volume/ Ringtone75~85dB (30cm)
Snapshot QuantityApprox. 100 (internal memory)
Varies depending on TF card storage
SnapshotJPG format
VideoAVI format
Operating Temperature-10℃~50℃
Relative Humidity10%~90%(RH)
Outline Size184(W)*123.8(H)*20.5 (D)mm
Outdoor Unit
Camera Resolution700 TVL
Night vision LED940 nm (Infrared)
Outline Size (H*W*D, mm)150*55*40
Operating Temperature-20 C ~ 50 C
Relative Humidity10%~90%(RH)

Screenshot 2026-06-14 160419

ClassTitleLanguageTypeDownload
DatasheetZTI-AVK271REnglishpdf
