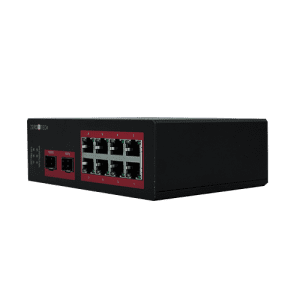

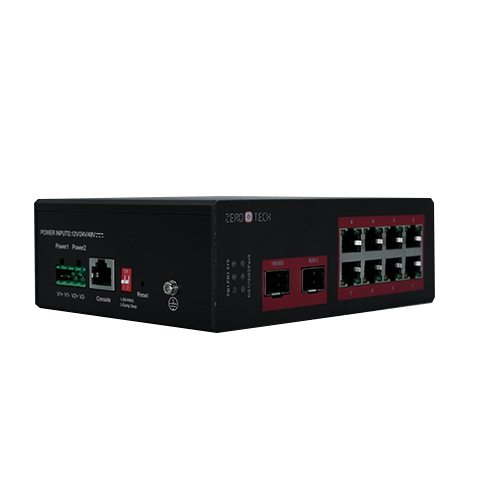

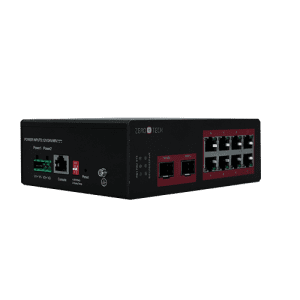

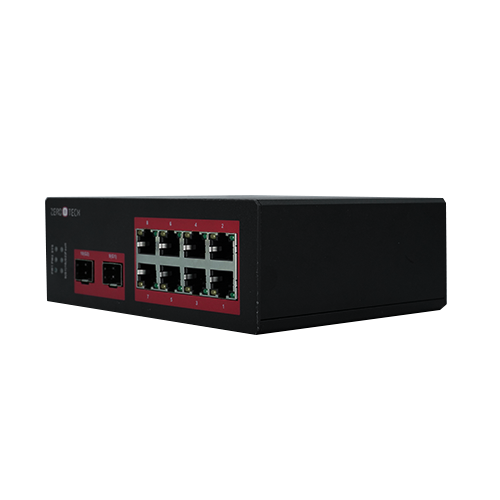

ZTEGS-IM-8P2USFP
ZTEGS-IM-8P2USFP
- Gigabit L2+ managed PoE switch
- 8 ports PoE
- 2 ports SFP
- 1 RS232 console port
- PoE Watchdog
- Support 802.1q VLAN
- Support RSTP/MSTP spanning tree
- Support VLAN, ACL, ERPS ring network
| Model Specifications | ZTEGS-IM-8P2USFP |
|---|---|

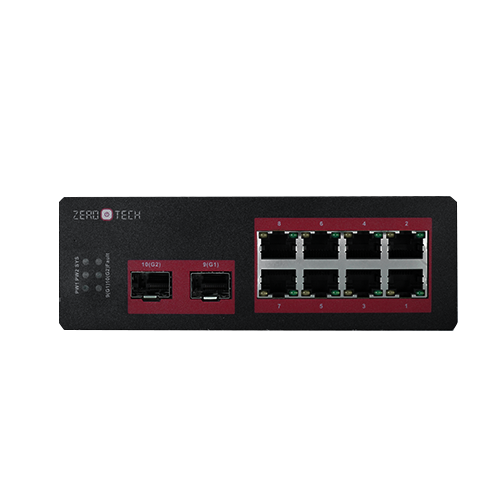

| Ports | 8×10/100/1000Mbps RJ45 PoE ports+2xGigabit SFP,Single mode |
| 1xRS232 console port(115200,N,8,1) | |

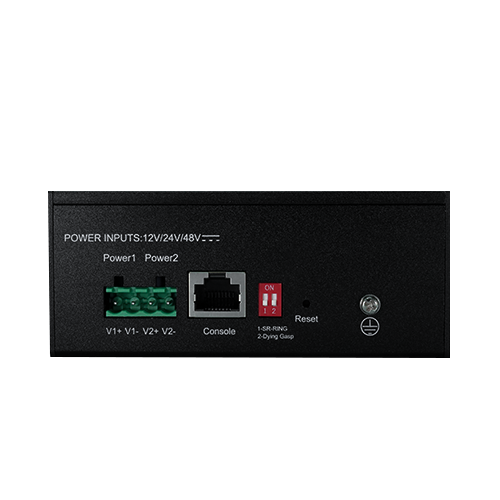

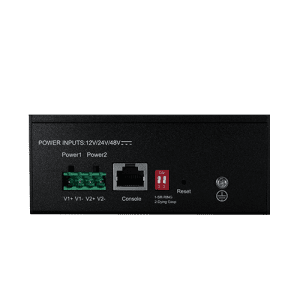

| 2 sets of V+, V- redundant DC power interface (6 Pin Phoenix terminal) | |
| 1 group of alarm output and relay output can define various custom condition trigger. |
|
| PoE Port | Port 1-8 can support IEEE802.3af/at POE standard |
| Network Protocol | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX/FX | |
| IEEE 802.3ab 1000BASE-TX | |
| IEEE802.3i 10Base-T | |
| IEEE802.3z 1000Base-X | |
| IEEE802.3x | |
| Ethernet Port Feature | 10/100/1000BaseT (X) automatic detection, full / half duplex MDI/MDI-X adaptive |
| SFP Port Characteristic | Gigabit SFP optical fiber interface, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical module |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Switching Capacity | 20Gbps |
| Forwarding Rate | 14.88Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4Mb |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| 1000BASE-T: Cat5 or later UTP(≤100 meter) | |
| Optical Cable | Multi mode: 850nm 0 ~ 550M,single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. |
| Power Supply Pin | Only support 1/2 (+), 3/6 (-) 4-core power supply |
| Max/AveragePower Port | 30W per port |
| Power Consumption | Standby:<10W;Full load:<240W |
| LED | System indicator:SYS(green) |
| Network Indicator: Link (yellow) | |
| SFP Indicator: L/A (green) | |
| PoE Indicator: PoE (green) | |
| Power Supply | No, see accessories information table to buy |
| Lightning Protection | Lightning protection: 6KV 8/20us;Protection level: IP40 |
| IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge | |
| IEC61000-4-3(RS):10V/m(80~1000MHz) | |
| IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV | |
| IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV | |
| IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) | |
| IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s | |
| IEC61000-4-9(pulsed magnet field):1000A/m | |
| IEC61000-4-10(damped oscillation):30A/m 1MHz | |
| IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV | |
| IEC61000-4-16(common-mode transmission):30V; 300V,1s | |
| FCC Part 15/CISPR22(EN55022):Class A | |
| IEC61000-6-2(Common Industrial Standard) | |
| Mechanical Properties | IEC60068-2-6 (anti vibration) |
| IEC60068-2-27 (anti shock) | |
| IEC60068-2-32 (free fall) | |
| Physical Specifications | Size(L*W*H): 155mmx114.1mmx51.7mm,Net Weight:<1.1kg,Gross Weight:<1.4kg |
| Operation TEMP / Humidity | -40~+75°C;5%~90% RH Non condensing |
| Storage TEMP / Humidity | -10~+85°C;5%~95% RH Non condensing |
| Certification | CE;FCC;RoHS,UL |
| Warranty | Whole Device: 1 year |
| Port | Support IEEE802.3x flow control (full duplex) |
| Support for broadcast storm suppression based on port rate | |
| Support speed limit for incoming and offline message traffic, with a minimum particle size of 64Kbps. | |
| Support port temperature protection settings | |
| Support port EEE green Ethernet energy saving configuration | |
| PoE Management | Support total power limit configuration for POE power supply |
| Support PoE output power allocation per port, close / start af/at | |
| Support PoE output priority configuration per port | |
| Support PoE work status per port display | |
| Support PoE work and time scheduling and system budget to be 365w to deliver up to 15.4w | |
| Layer 3 Function | L2+ network management function |
| Support IPV4/IPV6 management unicast routes in hardware :5000 | |
| Support layer3 soft routing (weak three tier) forwarding | |
| Support different network segments, communication between different VLAN | |
| Support static routing / default routing 128, 1024 ARP software forwarding | |
| VLAN | Support port based VLAN (4K), IEEE802.1q |
| Support protocol based VLAN- Number of vlan ids:4,096 | |
| Support Voice VLAN | |
| Support for MAC address-based VLANs | |
| Support Access, Trunk, Hybrid three types of port configuration | |
| Port Aggregation | Support LACP |
| Support static polymerization | |
| Support the largest 8 aggregation groups; each aggregation group supports 8 ports. | |
| Spanning Tree | Support STP (IEEE802.1d)-(IEEE802.1AB(LLDP)-(IEEE802.1P(COS)-(IEEE802.1Q(VLAN)- |
| Support RSTP (IEEE802.1w) | |
| Support MSTP (IEEE802.1s | |
| Industrial Ring Network Protocol | Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring |
| The self healing time of the ring network is less than 20ms | |
| Multicast | Support IGMP Snooping V1/V2 and support 1024 multicast groups at most |
| Support the user’s quick departure mechanism | |
| Support MLD Snooping V1/V2/V3 AND IGMP V3 SNOOPING(entries not less than 1,000) | |
| Support multicast VLAN | |
| Mirror | Bi-directional traffic mirroring supporting the basic port |
| QoS | Support Diff-Serv QoS Forvboth layer2 and layer 3 |
| Each port supports 8 output queues | |
| Support 802.1p/DSCP priority mapping | |
| Support queue scheduling mechanism (SP, WRR, SP+WRR) | |
| Support priority tag Mark/Remark | |
| Support stream based packet filtering | |
| Support for stream based redirection | |
| Support flow based speed limit | |
| ACL | Support L2 to L4 packet filtering function, match the first 80 bytes of the message |
| Provide based on the source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN and other definition ACL |
|
| Support ACL based on port and VLAN | |
| Safety Characteristics | Support user grading management and password protection |
| Support IEEE802.1X authentication / centralized MAC address authentication | |
| Support AAA&RADIUS authentication | |
| Support the number of MAC address learning restrictions |
|
| Safety Characteristics | Support MAC address black hole |
| Support SSH 2.0 to provide secure passwords for user login | |
| Support SSL to ensure data transmission security | |
| Support port isolation/Modbus | |
| Support the speed limit function of ARP message | |
| Support IP source address protection | |
| Support ARP intrusion detection function | |
| Support against DoS attacks | |
| Support port broadcast message suppression | |
| Support host data backup mechanism | |
| Binding capabilities of IP+MAC+VLAN+ ports | |
| DHCP | Support DHCP Client |
| Support DHCP Snooping | |
| Management And Maintenance | Support Console/AUX Modem/Telnet/SSH2.0 CLI command line configuration |
| Support WEB network management (HTTPS) | |
| Support FTP, TFTP, Xmodem, SFTP file download management | |
| Support SNMP/SNTP (V1/V2C/V3)/RMON/HTTP/HTTPS/TELNET/SYSLOG/DHCP 66,67.82 | |
| Support one bond reduction | |
| Support NTP clock Support system work log Support Ping detection | |
| Support cable state detection | |
| Support CPU instant utilization status view | |
| Support link layer discovery protocol LLDP center | |
| System Requirements | Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later |
| Cat5e or later Ethernet cable | |
| TCP/ IP, network adapter and network operating system (Microsoft Windows, Linux or Mac OS X) installed on on every computer in the network. |
