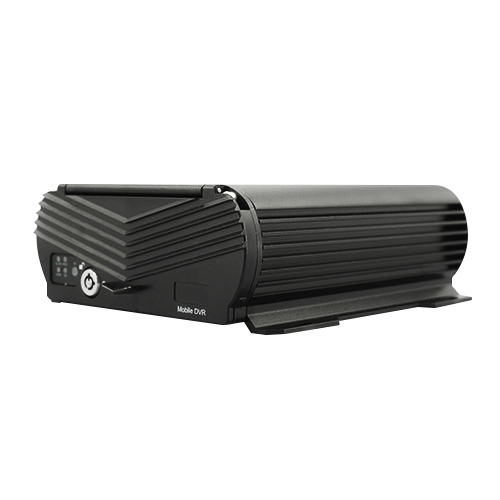

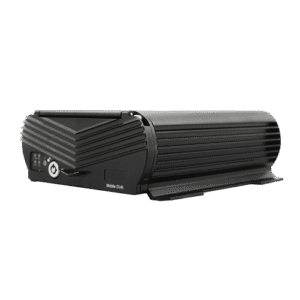

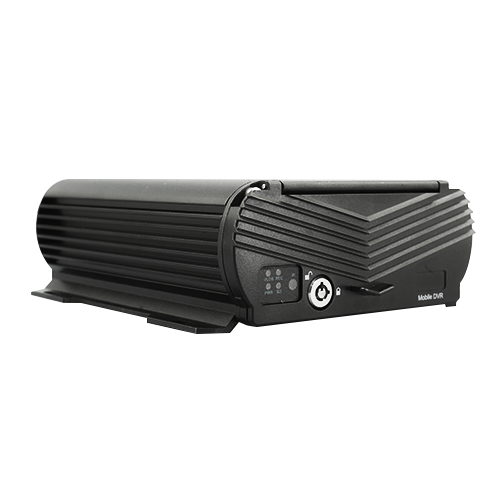

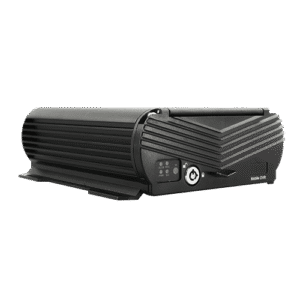

ZTEG-MDVR4P
ZTEG-MDVR4P
Features
- Built-in high performance chipsets，H.265 standard，high compression rate and image quality
- 4ch analog + IPC live preview and storage
- 1ch synchronized AV Output，1ch VGA output
- Reverse Assistance
- Built-in G-sensor，monitor the driving habits
- Adjust the camera image horizontally and vertically
Power
- Professional in vehicle power design，9—36VDC Wide Voltage Range
- Multiple protection circuits like under-voltage, short, reversed plug-in
- Smart power management system, shutdown under low voltage, low consumption when standby
Date storage
- Built-in super capacitor to avoid data loss and disk damage caused by sudden outage
- Special file management system to encrypt and protect the data
- Proprietary technology to detect the bad track of the disk which can make sure the continuity of video and long service life of the disk
- Support SSD storage, maximum 2TB HDD/SSD
| Technical Parameter | ||
|---|---|---|
| Item | Device Parameter | Performance |
| System | Main Processor | 8520D |
| Operating System | Embedded Linux OS | |
| Operating Language | Chinese/English | |
| Operating Interface | GUI, Support mouse and remote control | |
| Password Security | Two Layer password Admin/User | |
| Audio & Video | Video Standard | PAL/NTSC |
| Video compression | H.265 | |
| Image resolution | 1080P/720P /960H/D1/CIF | |
| Playback Quality | 1080P/720P /960H/D1/CIF | |
| Compound mode | A variety of ways | |
| Decoding ability | 4ch 1080P + IPC | |
| Recording quality | Class 1-6 optional | |
| Image display | Single/QUAD display optional | |
| Audio Compression | G.711A | |
| Audio recording | Audio & Video synchronized recording | |
| Recording & Playback | Recording mode | Manual/Alarm |
| Video bit rate | Full frame 4096Mbps，6 classes image quality optional |
|
| Audio bit rate | 8KB/s | |
| Storage media | HDD/SSD storage | |
| Video inquiry | Inquiry by channel/Recording type/Alarm Type | |
| Local playback | Playback by channel, time | |
| Firmware upgrading | Upgrading mode | Manual/Automatically/Remote/Emergency Recovery |
| Upgrading mode | USB disk/Wireless network/SD card | |

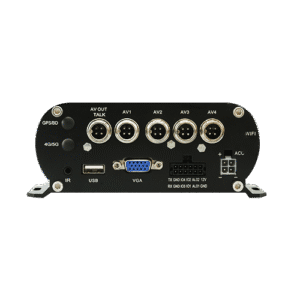

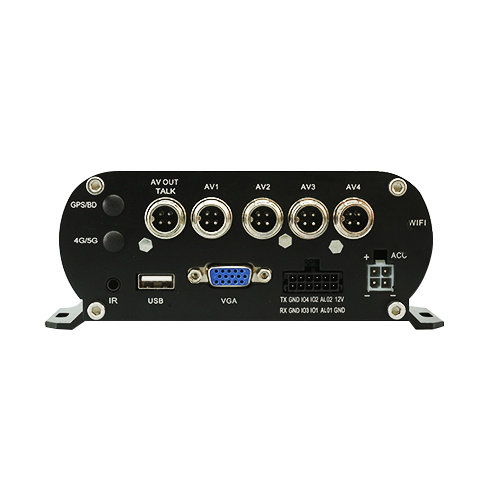

| Interface | AV input | 4ch 4pin aviation |
| AV output | 1ch VGA video output, 1ch aviation AV output | |
| Alarm input | 4 digital inputs (4 Positive/Negative trigger) | |
| Alarm output | 2 digital outputs | |
| SSD | (up to 2TB SSD) | |
| USB interface | 1 USB 2.0 (support pen drive/mouse) | |
| Ignition input | 1 ACC signal | |

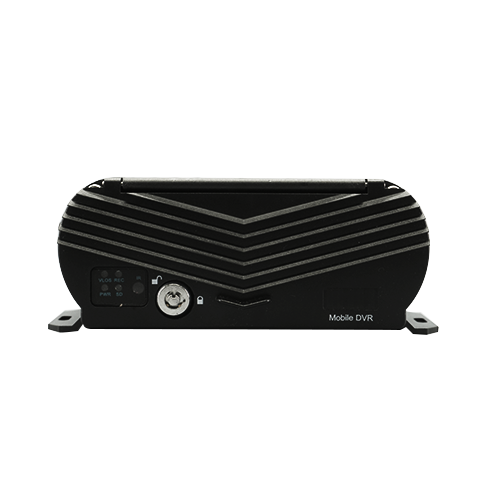

| LED Indication | PWR/REC/SD/ALM | |
| SD Lock | 1 | |
| Function Extension | GPS/BD /GLONASS | Support detecting antenna Plug in/Unplug/Short circuit |
| Others | Power input | DC：9V~36V |
| Power consumption | Standby 3mA Maximum consumption 18W @12V 1.5A @24V 0.75A |
|
| Working temperature | -20 — 70℃ | |
| Storage Size | 1080P 1G/h/channel 720P 0.5G/h/channel 960H 0.38G/h/channel |
|
