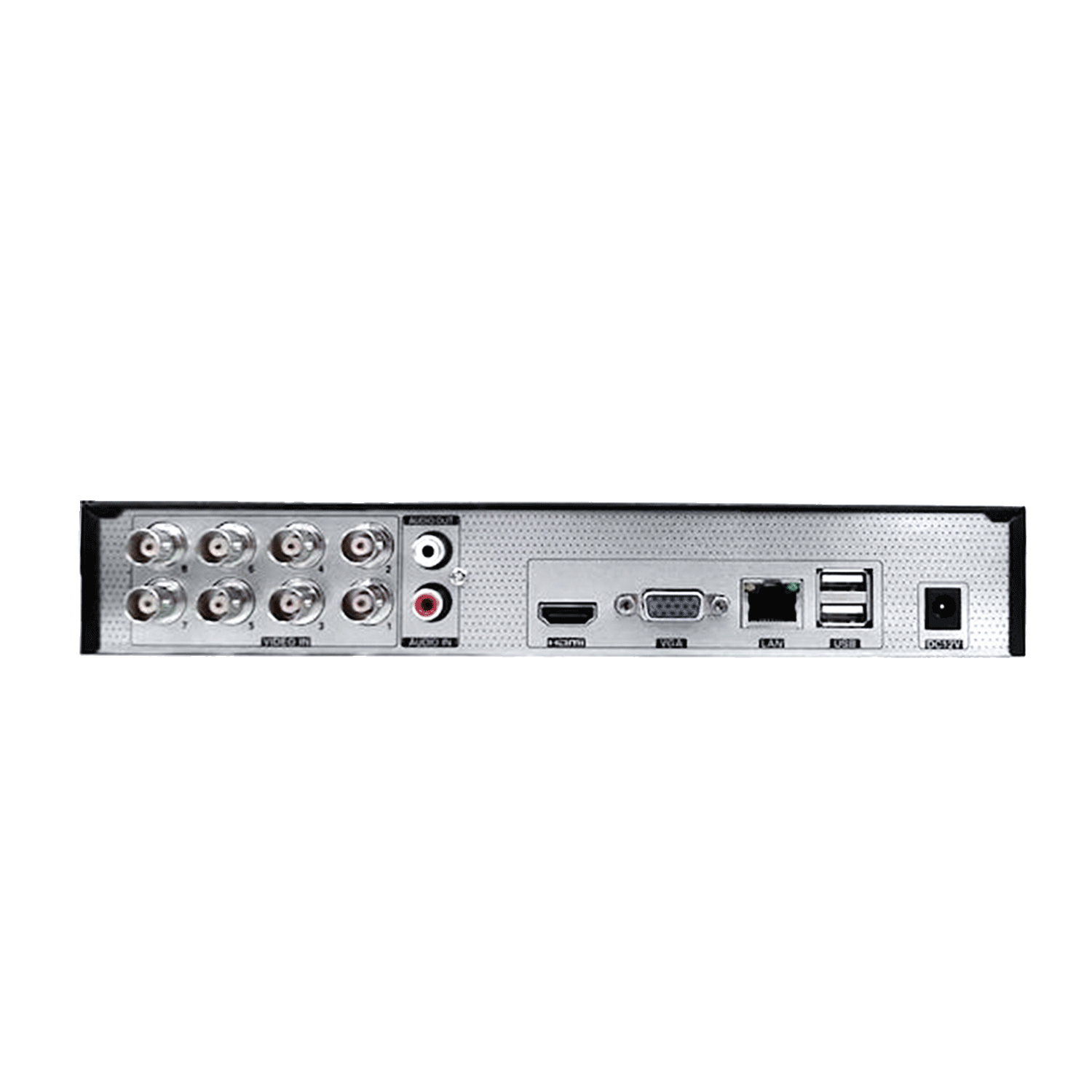

ZTDX-EG8CH
ZTDX-EG8CH
Features
- 8 CH / CVI / AHD video input
- 8 CH 1080P lite / 720P / WD1 recording
- 8 CH DVR supports 1 CH IPC 1080P / 960P / 720P input
- Adopt Standard H.265 high profile compression format to get high-quality video at much lower bit rate
- Multi-mode recording: manual / timer / motion
- Playback : 8 CH simultaneously playback
- DHCP, DDNS, PPPoE network protocol
- HDMI 1080P output, true high resolution display
- Remote control via Web Client or CMS: preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
- Authorization management, log view and device status view
- Multi-user online simultaneously
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with IOS and Android OS
-
- Vector Mouse Icon
| Model | ZTDX-EG8CH | |||
|---|---|---|---|---|
| System | OS | Embedded Linux | ||
| Compression | H.265 | |||
| Analog Input | BNC × 4 (1.0Vp-p; 75Ω) | |||
| Resolution | CVI / AHD: 1080P lite, 720P, WD1 real time; The resolution of CH 1 and CH 2 must be the same. So do CH 3 and CH 4 | |||
| Video | IP Input | 1CH (up to 9CH) Resolution: up to 1080P@30fps | ||
| Output | HDMI × 1 : 1920 × 1080, 1280 × 1024,1024 × 768 VGA × 1 : 1920 × 1080, 1280 × 1024,1024 × 768 | |||
| Compression | G.711(U/A) | |||
| Input | RCA × 1 | |||
| Audio | Output | RCA × 1 (Linear; 600Ω) | ||
| Two-way audio | Take up channel one audio input | |||
| Resolution | 1080P Lite/720P/720P Lite/WD1 | |||
| Record | Frame Rate | Analog channels: 1080P Lite/720P: 12 fps/ 15 fps (PAL /NTSC) 720P Lite/ WD1 : 25fps / 30 fps (PAL /NTSC) | ||
| Bit Rate | 128Kbps ~ 2Mbps | |||
| Mode | Manual, timer, motion | |||
| Playback | 8 CH | |||
| Playback | Search | Time slice / time / event / tag search/smart search | ||
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | |||
| Function | Play, pause, FF, FB, digital zoom, etc. | |||
| Mode | Manual, motion, exception | |||
| Alarm | Input | No | ||
| Output | No | |||
| Triggering | Record, snap, preset, e-mail, etc. | |||
| Interface | RJ 45 10M / 100Mbps × 1 | |||
| Network | Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs | ||
| Incoming Bandwidth | 4Mbps (Max. 36Mbps) | |||
| Outgoing Bandwidth | 18Mbps | |||
| Mobile Device | OS | iOS, Andriod | ||
| Storage | HDD | SATA × 1, max 6T | ||
| Local Backup | USB mobile HDD | |||
| Backup | Network Backup | Yes | ||
| RS 485 | No | |||
| Port | USB | USB 2.0 x 2 | ||
| Remote Controller | No | |||
| Power Supply | DC 12V/1.5A | |||
| Others | Consumption | ≤ 5W ( without HDD ) | ||
| Dimensions ( mm ) | 255 × 232 × 42 ( W × D × H ) | |||
| Work Environment | -10 ～ 50 ℃，10% ～ 90% humidity | |||
