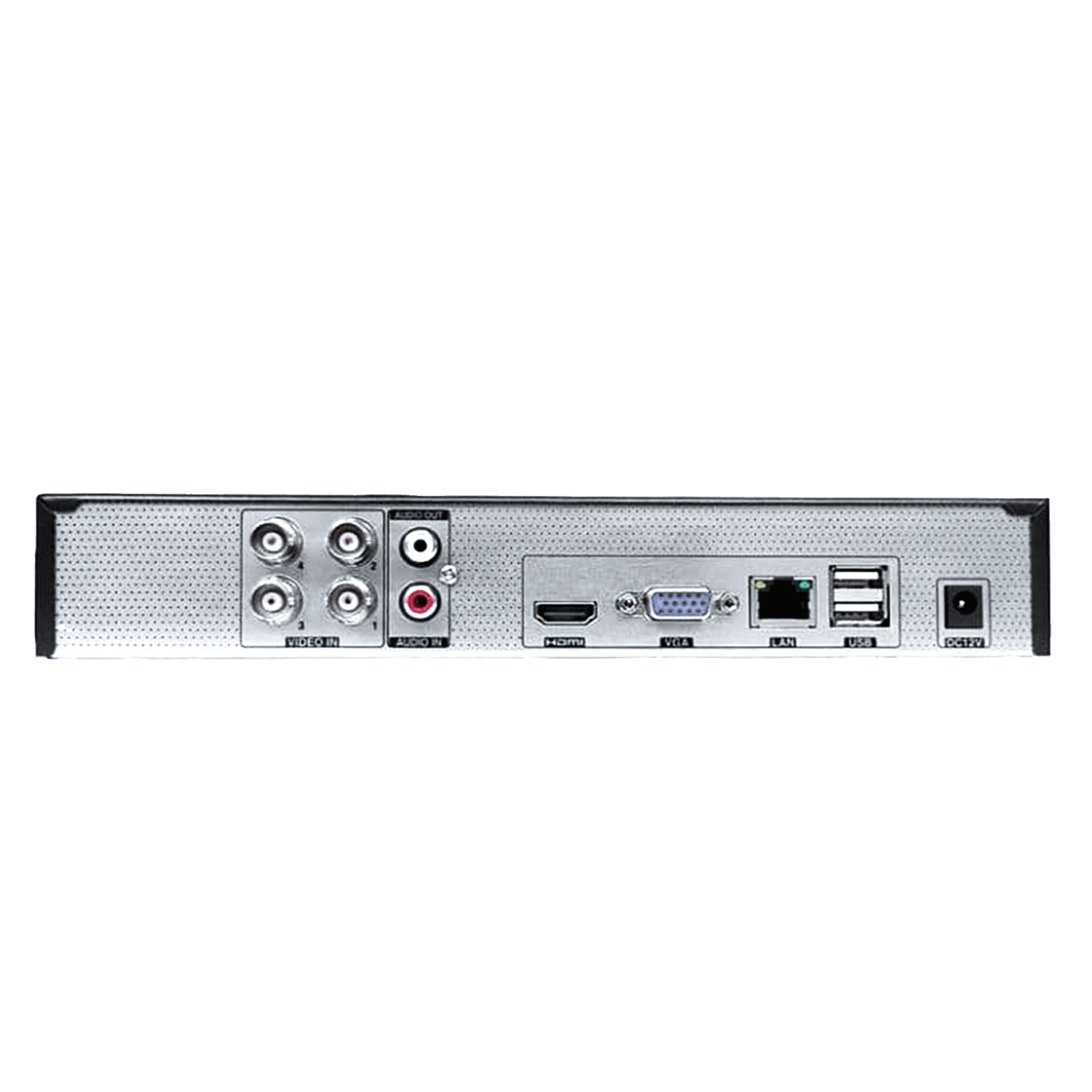

ZTDX-EG4CH
ZTDX-EG4CH
Features
- 4 CH / CVI / AHD video input
- 4 CH 1080P lite / 720P / WD1 recording
- Standard H.265 high profile compression format to get high-quality video at much lower bit rate
- Multi-mode recording: manual / timer / motion
- Playback : 4 CH simultaneously playback
- DHCP, DDNS, PPPoE network protocol
- Remote control via Web Client or CMS: preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
- Authorization management, log view and device status view
- Multi-user online simultaneously
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with IOS and Android OS
-
- Vector Mouse Icon
| Model | ZTDX-EG4CH | |
|---|---|---|
| System | OS | Embedded Linux |
| Compression | H.265 | |
| Analog Input | BNC × 4 (1.0Vp-p; 75Ω) | |
| Resolution | CVI / AHD: 1080P lite, 720P, WD1 real time; The resolution of CH 1 and CH 2 must be the same. So do CH 3 and CH 4 |
|
| Video | IP Input | No |
| Output | HDMI × 1 : 1920 × 1080, 1280 × 1024,1024 × 768 VGA × 1 : 1920 × 1080, 1280 × 1024,1024 × 768 |
|
| Compression | G.711(U/A) | |
| Input | RCA × 1 | |
| Audio | Output | RCA × 1 (Linear; 600Ω) |
| Two-way audio | Take up channel one audio input | |
| Resolution | 1080P lite, 720P, WD1 | |
| Record | Frame Rate | 1080P lite : 25 fps (PAL /NTSC) 720P/ WD1 : 25 / 30 fps (PAL /NTSC) |
| Bit Rate | 128Kbps ~ 3Mbps | |
| Mode | Manual, timer, motion | |
| Playback | 4 CH | |
| Playback | Search | Time slice / time / event / tag search/smart search |
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | |
| Function | Play, pause, FF, FB, digital zoom, etc. | |
| Mode | Manual, sensor, motion, exception, smart events | |
| Alarm | Input | 16 CH local alarm input; IPC alarm input supported |
| Output | 4 CH | |
| Triggering | Record, snap, preset, e-mail, etc. | |
| Interface | RJ 45 10M / 100Mbps × 1 | |
| Network | Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs |
| Outgoing Bandwidth | 12Mbps | |
| Mobile Device | OS | iOS, Andriod |
| Storage | HDD | SATA × 1, max 6T |
| Local Backup | USB mobile HDD | |
| Backup | Network Backup | Yes |
| RS 485 | No | |
| Port | USB | USB 2.0 x 2 |
| Remote Controller | No | |
| Power Supply | DC 12V/1.5A | |
| Others | Consumption | ≤ 5W ( without HDD ) |
| Dimensions ( mm ) | 255 × 232 × 42 ( W × D × H ) | |
| Work Environment | -10 ～ 50 ℃，10% ～ 90% humidity | |
