ZTDX-EG32CH5M
ZTDX-EG32CH5M
Features
- 32 CH / AHD/CVI 5MP/ 4MP/ 1080P / 720P / WD1 video input
- 32 CH DVRs support 8/8 CH 5MP / 4MP / 3MP / 1080P / 960P / 720P IP video input
- Multi-mode recording: manual / timer / motion Playback : 16/16 CH
- Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition
- remote network transmission and remote surveillance with mobile device Multi-user online simultaneously
-
Powerful mobile surveillance by smart phones with IOS and Android OS
- Authorization management, log review and device status review 1080P output, true high resolution display
-
- Vector Mouse Icon
| Model | ZTDX-EG32CH5M | |
|---|---|---|
| System | OS | Embedded Linux |
| Video | Compression | H.264/H.265 |
Analog Video Input | BNC × 32 BNC interface (1.0Vp-p; 75Ω) AHD/CVI : 5MP/4MP/1080P/720P/WD1 (live) |
|
| IP Video Input | 8CH (up to 24CH) Up to 5MP@30fps |
|
| Total Input | 40CH | |
| Output | HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS ( used as the main or spot output ) |
|
| Audio | Input | RCA × 16 |
| Output | RCA × 1 (Linear; 600Ω) | |
| Two-way audio | Take up channel one audio input | |
| Compression | G.711(U/A) | |
| Resolution | 5MP Lite/4MP Lite / 1080P/1080P Lite/720P/WD1/D1 | |
| Record | Frame Rate | Analog Channel: 5MP Lite@10fps (PAL / NTSC) 4MP Lite/1080P@12fps(PAL) / 15fps (NTSC) 1080P Lite/720P/WD1/D1@25fps (PAL) / 30fps (NTSC) IP Channel: 25fps (PAL) / 30fps (NTSC) |
| Bit Rate | 32Kbps ~ 5Mbps | |
| Mode | Manual, timer, motion, smart event | |
| Playback | 16 CH | |
| Playback | Search | Time slice / time / event / tag search |
| Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events | |
| Function | Play, pause, FF, FB, digital zoom, etc. | |
| Mode | Manual, motion, exception, smart event | |
| Alarm | Input | 16 |
| Output | 4 | |
| Interface | RJ 45 100Mbps × 1 | |
| Network | Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP |
| Incoming Bandwidth | 40Mbps(Max. 88Mbps) | |
| Outgoing Bandwidth | 160Mbps | |
| Mobile Device | OS | iOS, Andriod |
| Storage | HDD | SATA×4, up to 8TB per HDD; E-SATA×1 |
| Local Backup | U disk, USB mobile HDD | |
| Backup | Network Backup | Yes |
| RS 485 | Full-duplex, connect to PTZ or keyboard | |
| Port | USB | USB 2.0 × 2 |
| Remote Controller | Optional | |
| Power Supply | ATX-250W | |
| Others | Consumption | ≤ 20W ( without HDD ) |

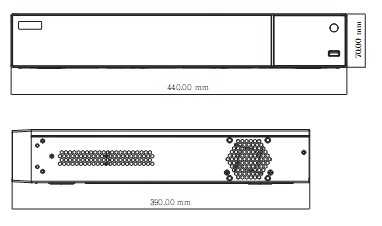

| Dimensions ( mm ) | 440 × 390 × 70 ( W × D × H ) | |
| Work Environment | -10 ～ 50 ℃，10% ～ 90% humidity | |
