ZTDX-EG16CH5M
ZTDX-EG16CH5M
Features
- Supports 16 CH / AHD /CVI 5MP / 4MP / 1080P / 720P / WD1 video input
- Supports 8 CH 5MP / 4MP / 3MP / 1080P / 960P / 720P IP video input
- 8CH analog video input can be switched to 8CH IP video input
- Multi-mode recording: manual / timed / sensor / motion / AI recording
- Playback : 4 CH simultaneously playback Search: time slice, time, event, tag
- DHCP, DDNS, PPPoE network protocol
- Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with IOS and Android OS
- Playback: 16 CH simultaneously playback Search: time slice, time, event, tag search Express and flexible backup via USB, network and so on Pentaplex: preview, record, playback, backup and
-
- Vector Mouse Icon
| Model | ZTDX-EG16CH5M | |
|---|---|---|
| System | OS | Embedded Linux |
| Video | Compression | H.264/H.265/H.265+ |
Analog Video Input | BNC × 16 BNC interface (1.0Vp-p; 75Ω) AHD/CVI: 5MP@20fps; 4MP/ 3MP/ 1080P/ 720P/ WD1@30fps |
|
| IP Video Input | 8CH (up to 16CH) Up to 5MP@30fps |
|
| Total Input | 24CH | |

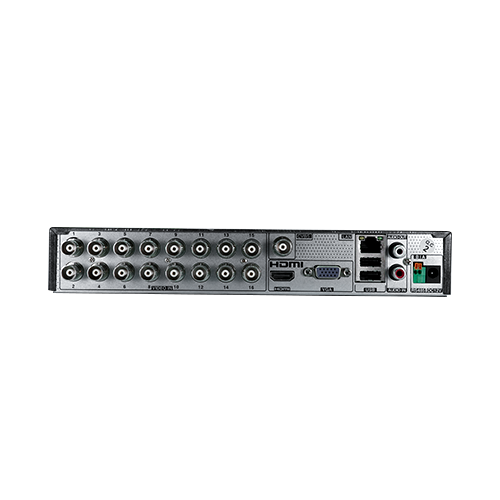

| Output | HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS ( used as the main or spot output ) |
|
| Multi-screen Display | 1 /4/6/8/9/13/16/25 | |
| Audio | Input | RCA × 1 |
| Output | RCA × 1 (Linear; 600Ω) | |
| Two-way audio | Take up channel one audio input | |
| Compression | G.711(U/A) | |
| Resolution | 5MP Lite/ 4MP Lite/ 1080P/ 1080P Lite/ 720P/ WD1 | |
| Record | Frame Rate | Analog Channel: 5MP Lite:10fps; 4MP Lite/1080P:12fps(PAL)/15fps(NTSC) 1080P Lite/ 720P/ WD1/D1: 25fps (PAL)/30fps (NTSC) IP Channel: 25fps (PAL)/30fps (NTSC |
| Bit Rate | 32Kbps ~ 4Mbps | |
| Mode | Manual, timer, motion, smart event | |
| Playback | 16 CH | |
| Playback | Search | Time slice / time / event / tag search |
| Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events | |
| Function | Play, pause, FF, FB, digital zoom, etc. | |
| Mode | Manual, motion, exception, smart event | |
| Alarm | Input | No |
| Output | No | |
AI Function | Smart Motion Detection Performance | 16CH |
| Perimeter Protection Performance | 1CH | |
| Interface | RJ 45 100Mbps × 1 | |
| Network | Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP |
| Incoming Bandwidth | 32Mbps (max. 64 Mbps) | |
| Outgoing Bandwidth | 80Mbps | |
| Client Connection | Max. 10 users access | |
| Mobile Device | OS | iOS, Andriod |
| Storage | HDD | SATA × 1, up to 10TB |
| Local Backup | U disk, USB mobile HDD | |
| Backup | Network Backup | Yes |
| RS 485 | RS 485 × 1 (half-duplex) | |
| Port | USB | USB 2.0 × 2 ( in the rear panel ) |
| Remote Controller | Optional | |
| Power Supply | DC12V / 3A | |
| Others | Consumption | ≤10W(without HDD ) |

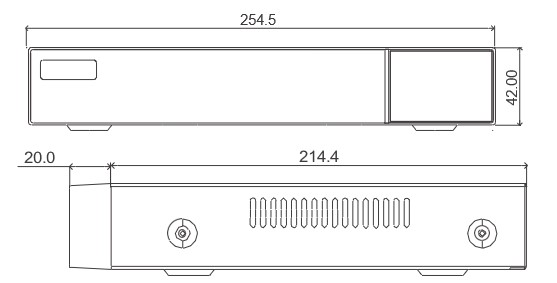

| Dimensions ( mm ) | 255× 234× 42 ( W × D × H ) | |
| Work Environment | -10 ～ 50 ℃，10% ～ 90% humidity | |
| Certificate | CE, FCC | |
| Environmental Protection | Comply with Directive EU RoHS, WEEE, REACH | |
