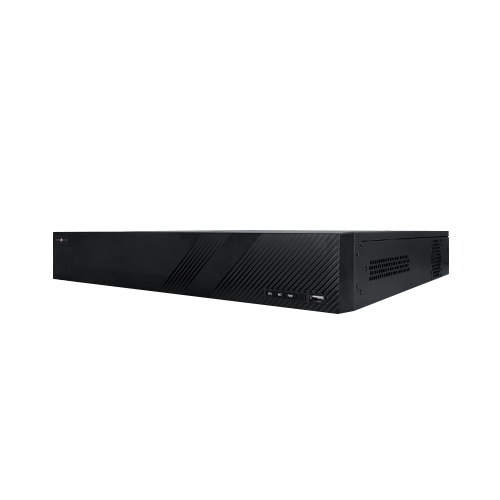

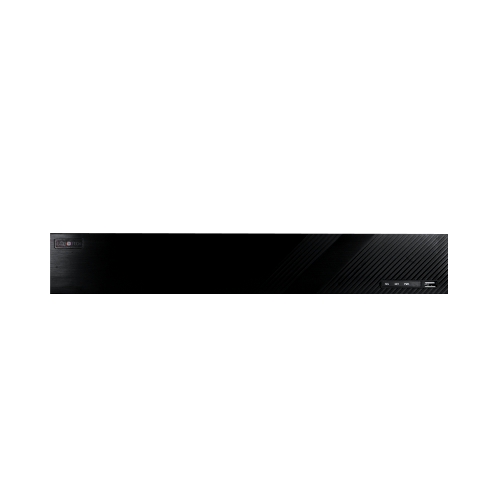

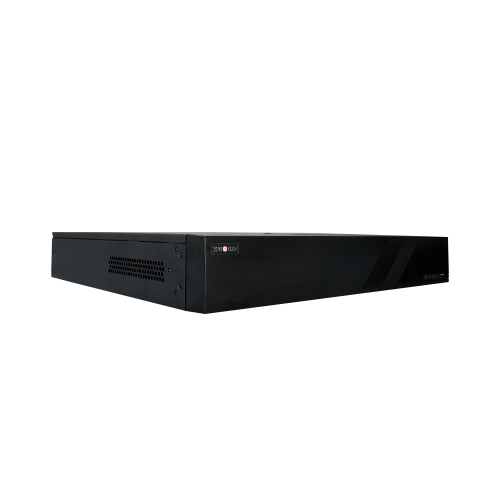

ZTDX-EG16CH
ZTDX-EG16CH
Features
- 16 CH / CVI / AHD video input
- 16 CH 1080P lite / 720P / 720P lite / WD1 recording
- 16 CH DVRs support 2 CH IPC 3MP / 1080P / 960P / 720P recording
- Adopt Standard H.265 high profile compression format to get high-quality video at much lower bit rate
- Multi-mode recording: manual / timer / motion
- Playback : 16 CH simultaneously playback
- DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
- HDMI 1080P output, true high resolution display
- Remote control via Web Client or CMS: preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
- Authorization management, log view and device status view
- Multi-user online simultaneously
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with IOS and Android OS
-
- Vector Mouse Icon
| Model | ZTDX-EG16CH | |
|---|---|---|
| System | OS | Embedded Linux |
| Compression | Standard H.265 High Profile | |
| CPU | Cortex A9 | |
| Video | Resolution | CVI / AHD 1080P lite, 720P, WD1 real time |

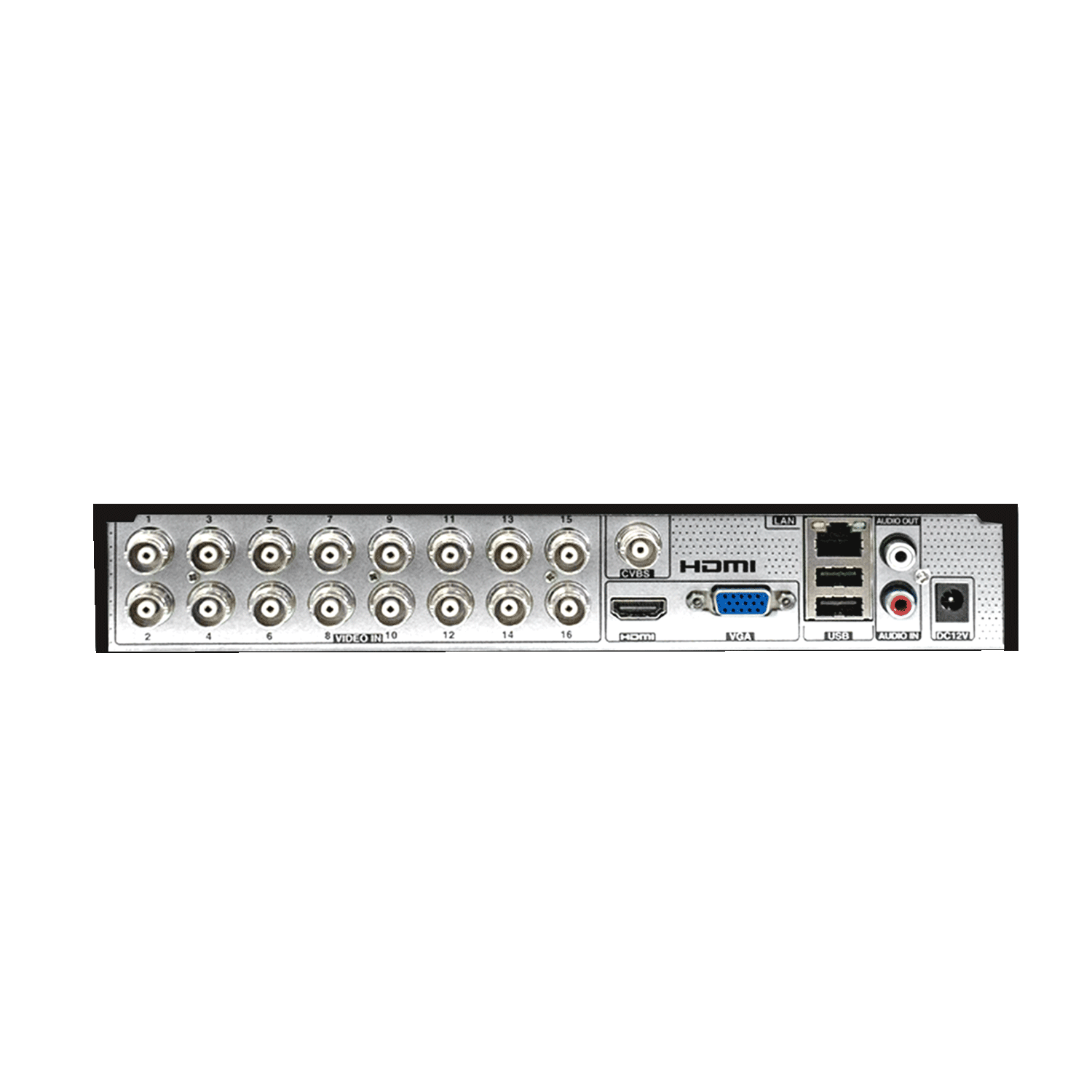

| Input | BNC × 16 | |
| Output | HDMI × 1 : 1920 × 1080, VGA × 1 : 1920 × 1080, BNC × 1 : CVBS ( used as the main or spot output |
|
| IP Input / Access Bandwidth | IPC × 2 / 12Mbps | |
| Input | RCA × 1 | |
| Audio | Output | RCA × 1 |
| Two-way audio | Take up channel one audio input | |
| Record | Resolution | 1080P Lite/720P/720P Lite/WD1 |
| Frame Rate | 1080P lite: 1~12fps (PAL / NTSC) 720P : 12 fps (PAL) / 15 fps (NTSC) 720P lite / WD1 : 25 fps (PAL) / 30 fps (NTSC |
|
| Bit Rate | 768Kbps ~ 4Mbps | |
| Mode | Manual, timer, motion | |
| Playback | 16 CH | |
| Playback | Search | Time slice / time / event / tag search |
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | |
| Function | Play, pause, FF, FB, digital zoom, etc. | |
| Mode | Manual, motion, exception | |
| Alarm | Input | No |
| Output | No | |
| Triggering | Record, snap, preset, e-mail, etc. | |
| Interface | RJ45 10M / 100Mbps × 1 | |
| Network | Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP |
| Web Client | Multiple users online | |
| Mobile Device | OS | iOS, Andriod |
| Storage | HDD | SATA × 1, max 8T |
| Local Backup | U disk, USB removable HDD | |
| Backup | Network Backup | Yes |
| RS 485 | RS485 × 1, connect to PTZ or keyboard | |
| Port | USB | USB 2.0 × 2 ( in the rear panel ) |
| Remote Controller | Optional | |
| Power Supply | DC 12V | |
| Others | Consumption | ≤ 10W ( without HDD ) |
| Dimensions ( mm ) | 255 × 233 × 42 ( W × D × H ) | |
| Work Environment | -10 ～ 50 ℃，10% ～ 90% humidity | |
