ZeroTech

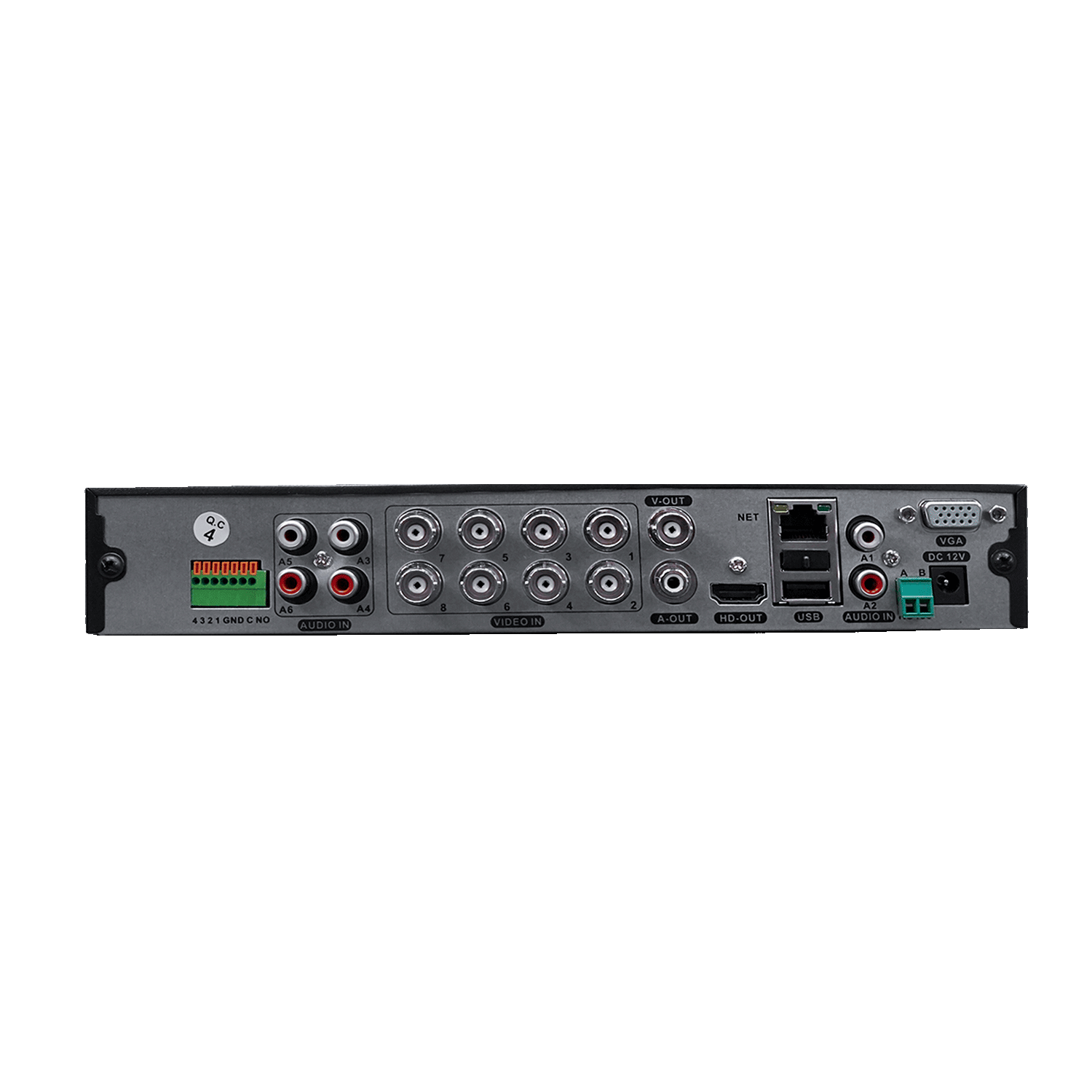

ZTD-L8CH4KL

ZTD-L8CH4KL

Features

  • Operating System Embedded LINUX
  • Video Input 8CH BNC
  • Video Output 1HD,1 VGA, 1 CVBS
  • 1 RJ45 10M/100M Adaptive Ethernet Interface
  • Audio Input 6 Channel, RCA, support AOC
  • Audio Output 1 Channel, RCA
  • Motion Detection 12 Channel(max 16 Channel in pure network mode)
  • Human Detection , UTC Control
  • Hard Disk Driver Capacity 1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)
  • 2 USB 2.0 Interfaces
  • Hard Disk Driver 1 SATA Interface
  • Working Environment -10~55℃/10~90%
  • Dimension (W×D×H) 260*215*43(mm)
  • DC 12V/2A ≤10W (Without Hard Disk)
  • Resolution 5MP(2560×1952),8MP_LITE(1920×2160),5MP_HALF(1280×1952),
  • ,4MP(2560×1440),4MP_HALF( 1280×1440),3MP(2048×1536),
  • 1080P(1920×1080),720P(1280×720),960H(960×480)

ModelZTD-L8CH4KL
System
Main ProcessorMC6650
Operating SystemEmbedded LINUX
Video
InputNormal Mode:
Default: 8*(AHD/TVI/CVI:8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI/CVI:
1080P/720P; Analog: 960H)+4*network(Max 8MP)
Analog+Network: 6*Analog(8MP)+8*network(Max
8MP),4*Analog(8MP)+10*network(Max 8MP),2*Analog(8MP)+12*network(Max 8MP)
Lite Mode:
Default: 8*(TVI/AHD: 5M@12fps; AHD/TVI/CVI: 4M@15fps; AHD/TVI/CVI: 1080P/720P;
Analog: 960H)+4*network(Max 8MP) Analog+Network:
6*Analog(5M@12fps)+8*network(Max 8MP),4*Analog(5M@12fps)+10*network(Max
8MP),2*Analog(5M@12fps)+12*network(Max 8MP)
Network: 16*8MP/5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ≤80M)
Input8CH BNC
Signal Type Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output1HD,1 VGA, 1 CVBS
Audio
Input 6 Channel, RCA， ,support AOC
Two-way AudioNO
Output1 Channel, RCA
Record ModeManual\Timer\Motion Detection\Alarm
Playback & Backup
Decode Capability 4*1080P@30fps
Sync PlaybackNormal Mode:
Pure Analog: 8CH 5M@6fps, 7CH 8M_Lite@8fps, 8CH 4M@8fps, 8CH 3M@9fps, 8CH
1080P@15fps
Mix Mode: 4CH 5M@6fps, 4CH 4M@8fps, 4CH 3M@9fps, 4CH 1080P@15fps, 1CH 8MP 30fps,
2CH 5MP 30fps, 2CH 4MP @30fps, 2CH 3MP@30fpsPure IPC: 1CH 4K@30fps, 2CH
5MP@30fps, 3CH 4MP@30fps, 4CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH
720P@30fps
Lite Mode:
Pure Analog:8CH 5M_Lite@ 8CH 1080N@25fps,8CH 720P@25fps,8CH 960H@25fps
Mix Mode: 4CH 5M@6fps, 4CH 4M@8fps, 4CH 3M@9fps, 4CH 1080P@15fps, 1CH 8MP 30fps,
2CH 5MP 30fps, 2CH 4MP @30fps, 2CH 3MP@30fpsPure IPC: 1CH 4K@30fps, 2CH
5MP@30fps, 3CH 4MP@30fps, 4CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH
720P@30fps
Remote Playback4 Channel / 1Channel
Search ModeALL, Channel, Manual, Time, Date, Motion Detection,Alarm,Tag
Playback FunctionsPlay, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full
Smart Phone Playback4 Channel
Backup ModeUSB Device(with fomat FAT 32 )/Network/FTP
Network
interface1 RJ45 10M/100M Adaptive Ethernet Interface
Network Functions TCP/IP, HTTP, UPnP, DNS, NTP, SMTP,DHCP, FTP, DDNS, RTP, RTSP, RTCP
DDNSDyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES,
Web BrowserEdge,IE8-11, Google Chrome , Firefox ,Safari
CMS SoftwareSupport Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS
Extra Stream CIF/D1(1-30fps)
Smart PhoneiPhone, ipad, Android ,Android pad
Hard Disk Driver
Interface Type 1 SATA Interface
Capacity 1 SATA Hard Disk (2.5″/3.5″ SATA, Up to 8TB)
General
LanguageSimplified Chinese,Traditional Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic,
Bulgarian, Japanese,German, French, Portuguese,
Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese,
UTC Control YES
USB Interface 2 USB 2.0 Interfaces
Power consumption DC 12V/2A ≤10W (Without Hard Disk)
Working Environment -10~55℃/10~90%
Dimension (W×D×H) 260*215*43(mm)
Weight 2kg (Without HDD)
Alarm
Sensor Input4 CH
Output 1 CH
Motion Detection12 Channel(max 16 Channel in pure network mode)
Trigger EventsRecording, Email, Screen tips, Buzzer, Push notifications(motion detection)
Email Alarm Send Image to The Designated E-mail
AI Function
Human DetectionYES
PTZ
interface RS485
ProtocolPelco-D, Pelco-P
Baud Rate110~921600
Address0~255
Display
VGAResolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
HD Output Resolution: 3840×2160 1920×1080 1280×1024 1280×720 1024×768
Display Split1/4/8/9/16
Privacy Masking3 Rectangular Zones (Each camera)
OSDCamera TItle, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video Compression H.265/H.265+/H.264/H.264+
Audio Compression G.711U/G.711A
Resolution5MP(2560×1952),8MP_LITE(1920×2160),5MP_HALF(1280×1952),4MP(2560×1440),4MP_HALF(
1280×1440),3MP(2048×1536),1080P(1920×1080),720P(1280×720),960H(960×480)
Video Quality Lowest/Low/Ordinary/Good/Better/Best
Record RateNormal Mode: Analog:PAL:8MP_LITE(1920×2160 8*8fps), 5MP(2560×1952
8*6fps),5MP_LITE(1280×1952 8*10fps), 4MP(2560×1440 8*8fps),4MP_LITE(1280×1440
8*15fps),3MP(2048×1536 8*9fps),3MP_Lite(1024×1536 8*18fps), 1080P(1920×1080
8*15fps),720P(1280×720
8*25fps), 960H(960×480 8*25fps)
NTSC:8MP_LITE(1920×2160 8*8fps), 5MP(2560×1952 8*6fps),5MP_LITE(1280×1952 8*10fps),
4MP(2560×1440 8*8fps),4MP_LITE(1280×1440 8*15fps),3MP(2048×1536
8*9fps),3MP_Lite(1024×1536 8*18fps), 1080P(1920×1080 8*15fps),720P(1280×720 8*30fps),
960H(960×480 8*30fps)
Lite Mode:
PAL:5MP_Lite(1280×1952 8*10fps),4MP_Lite(1280×1440 8*15fps),3MP_Lite(1024×1536
8*18fps),1080N(960×1080 8*25fps),720P(1280×720 8*25fps), 960H(960×480 8*25fps)
NTSC: 5MP_Lite(1280×1952 8*10fps),4MP_Lite(1280×1440 8*15fps),3MP_Lite(1024×1536
8*18fps),1080N(960×1080 8*25fps),720P(1280×7208*25fps), 960H(960×480 8*30fps)
Pure IP(H.265):
PAL :8MP@9x25fps, 5MP@12x25fps,4MP@16x25fps, 3MP@16x25fps, 1080P@16x25fps,
960P@16x25fps, 720P@16x25fps, D1@16x25fps NTSC:8MP@9x30fp,
5MP@12x30fps,4MP@16x30fps, 3MP@16x30fps, 1080P@16x30fps, 960P@16x30fps,
720P@16x30fps, D1@16x30fps
