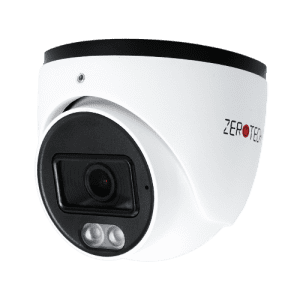

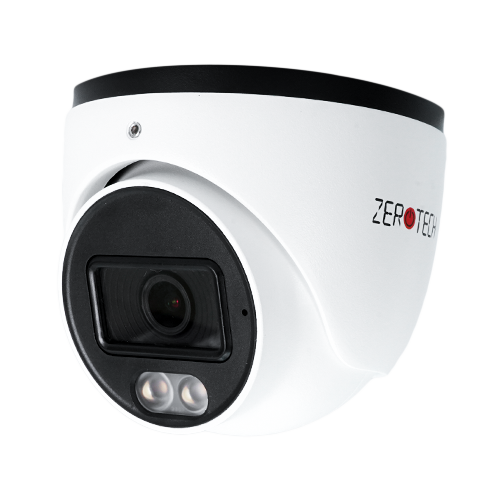

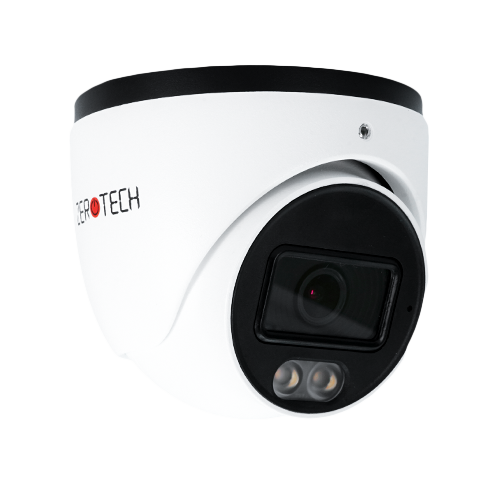

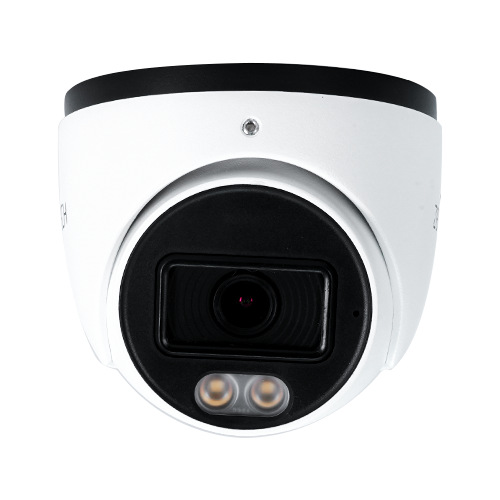

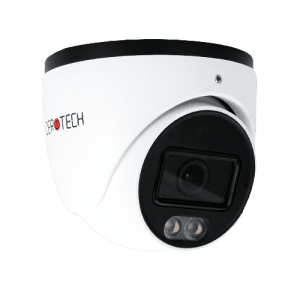

ZTD-EG2MFC
ZTD-EG2MFC
- 1080P real-time image, high resolution, true color
- AHD / TVI / CVI lossless HD video output
- Support 960H CVBS output
- Up to 1000 TVL resolution
- CMOS progressive scan, perfectly capturing the moving object
- Support OSD menu
- High speed, long distance and real time transmission
- 24/7 full color imaging
- LED can be turned on or off automatically
- Support noise reduction function
- 10 ~ 20m LED distance
- IP67
- Support coaxial audio transmission
- Support COC
| Model Specifications | ZTD-EG2MFC |
|---|---|
| Camera | |
| Image Sensor | 1 / 2.8″ CMOS |
| Resolution | 2MP |
| Image Size | 1920 x 1080 |
| Video Output | AHD / TVI /CVI/CVBS |
| Audio | 1CH built-in MIC |
| Image System | PAL / NTSC |
| Electronic Shutter | Auto |
| LED Distance | 10 ~20 m |
| Frame Rate | 30fps(60Hz); 25fps (50Hz) |
| Min. Illumination | 0 lux (LED ON) |
| Lens | 2.8mm |
| Lens Mount | M12 |
| S / N Ratio | ≥52dB ( AGC OFF ) |
| Ingress Protection | IP 67 |
| Functions | |
|---|---|
| Function Control | OSD ( COC Control ) |
| Smart LED | Manual or Auto mode |
| ICR | No |
| Digital WDR | Yes |
| Digital DNR | Yes, 2D DNR |
| AGC | Yes |
| Auto White Balance | Yes |
| BLC | Yes |
| Front Light Compensation | No |
| Defog | No |
| HLC | Yes |
| Sharpness | Yes |
| Contrast | Yes |
| Image Setting | Yes |
| Defect Correction | Auto |
| Language | Chinese and English |
| Angle Adjustment | Pan: 0°~360°; Tilt: 0°~75°; Rotation: 0°~360° |
| Others | |
|---|---|
| Power Supply | DC12V ( ± 15% ) |
| Power Consumption | LED OFF : < 1W; LED ON : < 4W |
| Working Environment | – 30 °C ~ 50 °C, 10 % ~ 90 % (relative humidity) |
| Dimensions ( mm ) | Ф 94.6 x 82.8 |
| Weight ( net ) | Approx. 0.39KG |
