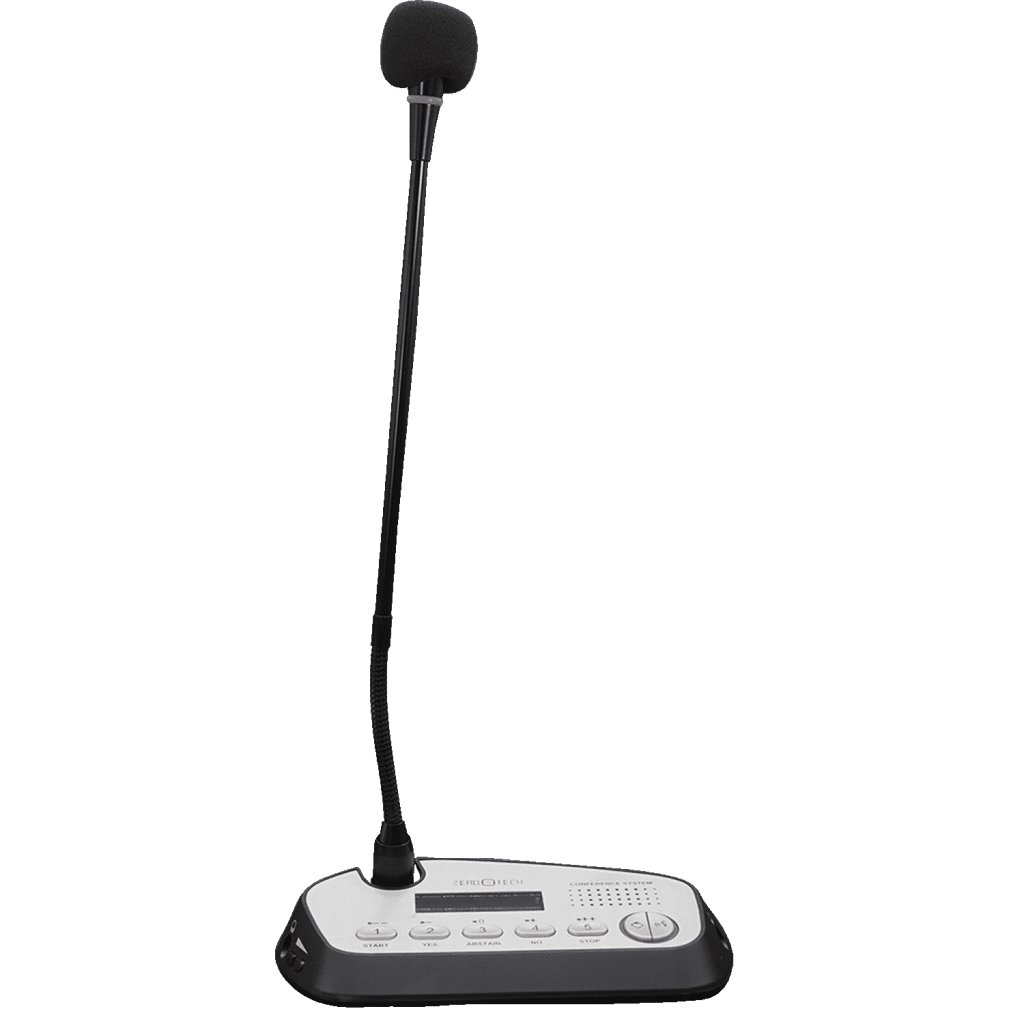

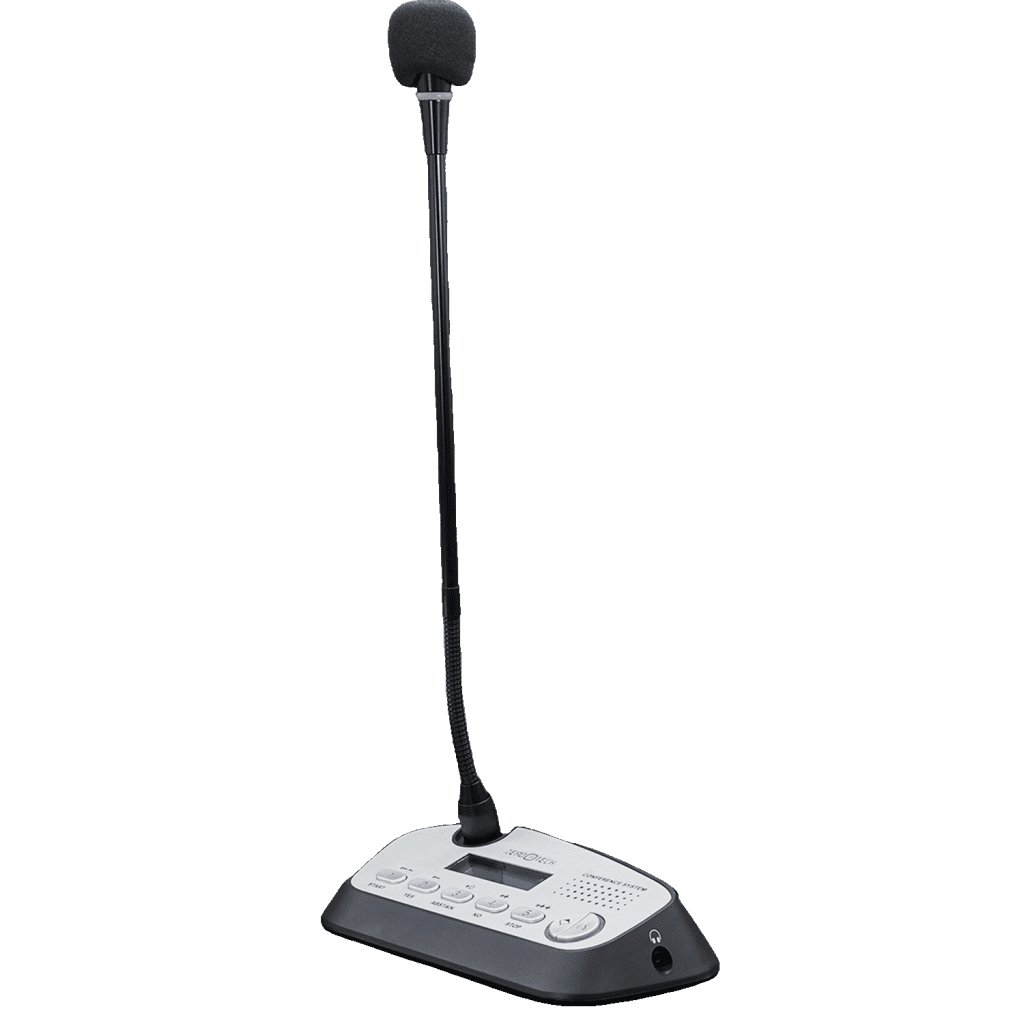

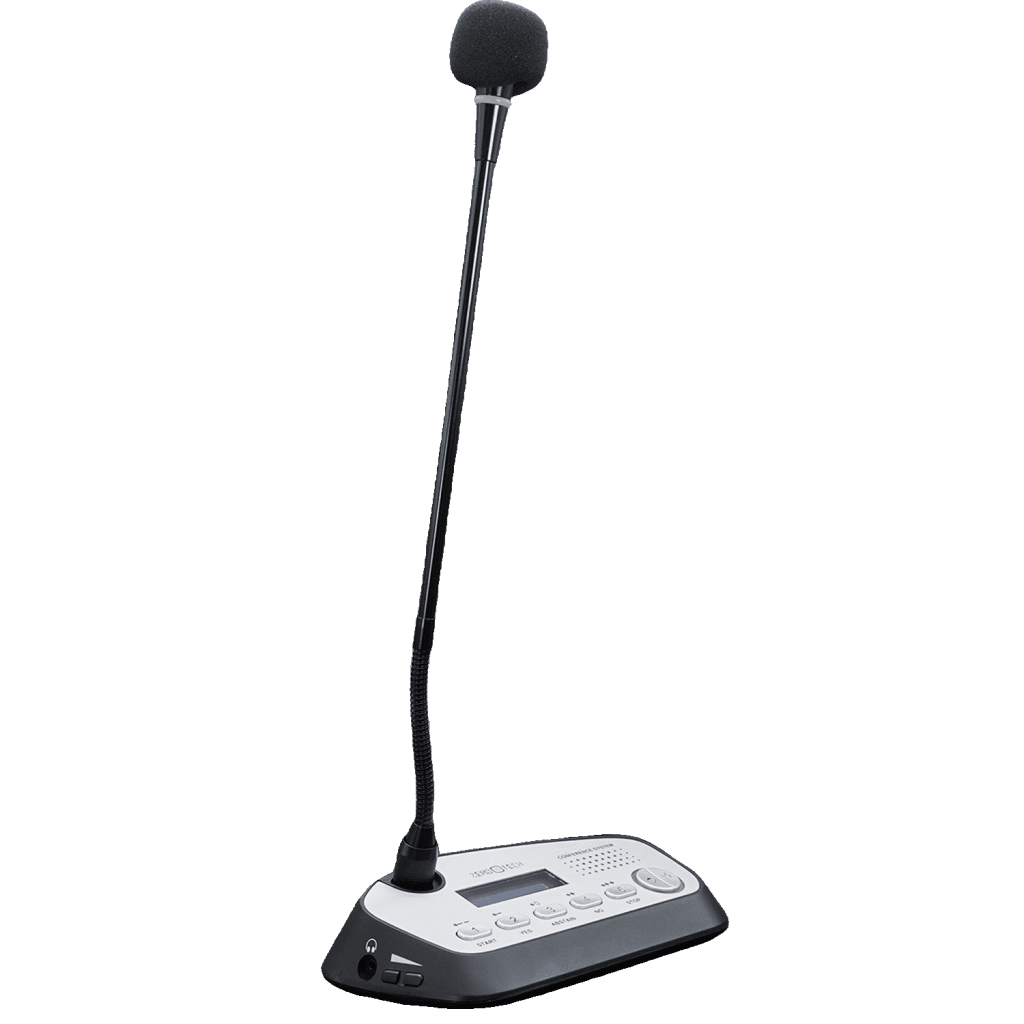

ZTCF6-MIC-D
ZTCF6-MIC-D
Features
- The conference has 2m 8 core high-density DIN cable with an aviation plug.
- The microphone rod is removable, so it is easy to maintain and store.
- Conference check-in function. Each conference unit has a unique ID code.
- High brightness LCD screen, when in working it can display in real time.
- User can switch between simplified Chinese and English languages in message displaying.
- Connection in "hand-in-hand" "T" and "+" modes.
- Chairman units are free from position limitations.
- Chairman units has the priority to maintain order at the conference site.
- Chairman units are free from restrictions of speaking persons and may be activated freely.
| MODEL | ZTCF6-MIC-D |
|---|---|
| Structure and Type | Desktop |
| Speaker Power | 1.5W |
| Static power consumption | <1W |
| Max. power consumption | 2W |
| SNR | >80dB |
| Crosstalk Attenuation | >80dB |
| Harmonic distortion | <0.5% |
| Headphone Output | 9dBu, 8-32Ω, 3.5mm |
| Working Power Supply | DC 24V power supply |
| Port on the unit | 8pin DIN socket |
| Type of microphone | Electret, heart-shaped, condenser type |
| Sensitivity | -45dBV/pa |
| Input impedance | 2kΩ |
| Equivalent Noise | 20dB (SPL) |
| Max SPL | 125dB (THD<3%) |
