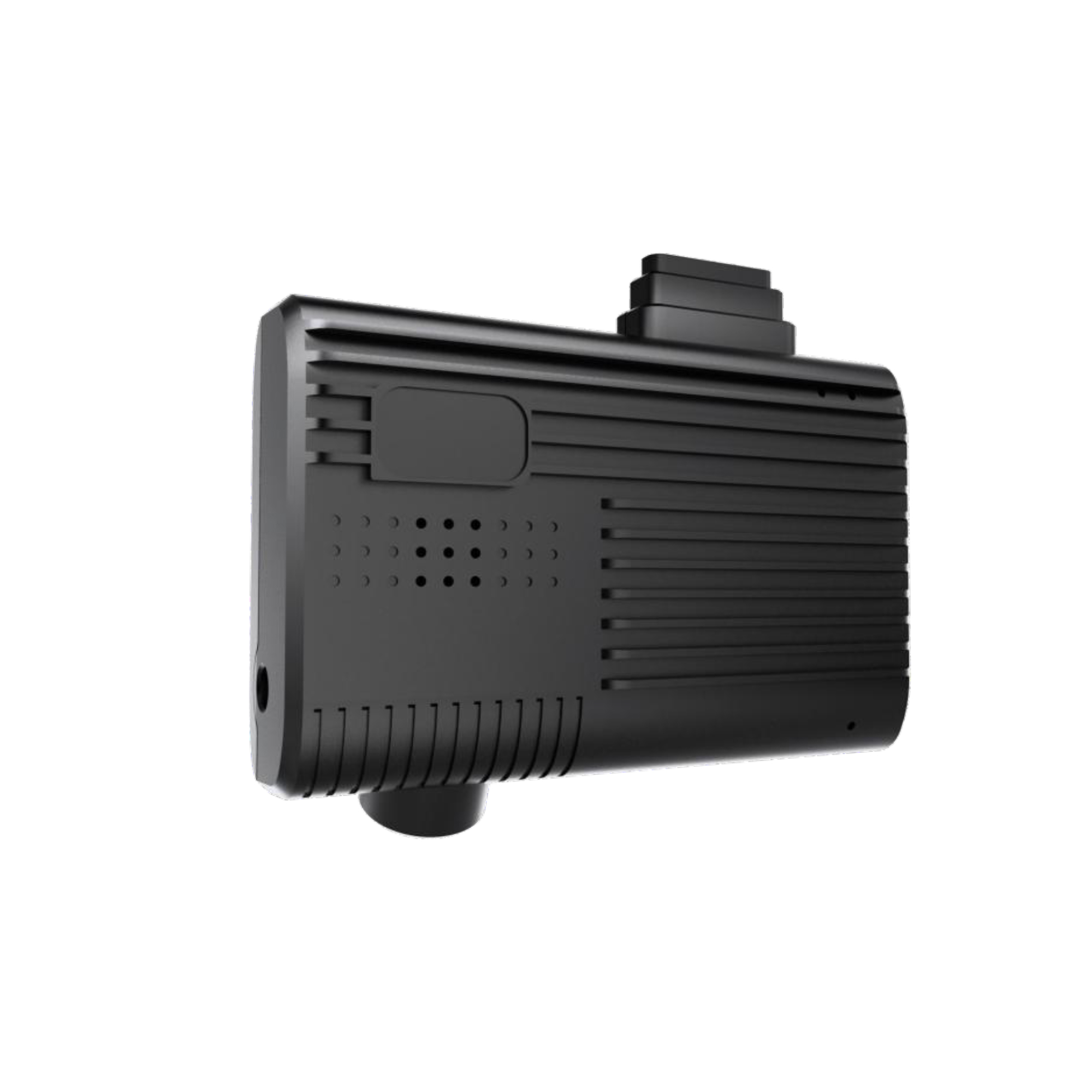

ZTC-Dash
ZTC-Dash
This Product supports
- 4-Channel Videos
- ADAS & DMS
- 2G, 3G, 4G
- GNSS: GPS/ GALILEO/ BeiDou/ GLONASS
- LoRa (optional)
- Configurator and FOTA WEB
| Technical | |
|---|---|
| OS | Linux |
| AI Computing Power | 2.0TOPS NPU |
| Intelligent Algorithms | ADAS/ DMS |
| Alarm Language | English (Support Customization) |
| Video | |
| Multi-Channel Recording | 4 Channels @ 1*1080p + 3*1080p |
| ADAS camera (forward view) | • 1080p • 2MP • FL 3.6mm • FNO 2.0 • FOV : D=80° H=64° V=39° |
| Encoding | H.264/ H.265 |
| Audio Format | G.711A |
| GNSS &Cellular | |
| Cellular | 2G/ 3G/ 4G CAT.4 |
| Positioning System | • GPS / GALILEO/ BeiDou / GLONASS |
| LTE Bands | • LTE:B1, B3, B5, B7, B8, B20, B28 (EU) • LTE:B2, B4, B5, B12, B13, B14, B66, B71 (NA) • LTE:B1, B2, B3, B4, B5, B7, B8, B28, B66(AU) |
| Positioning System | GPS/ GALILEO/ BeiDou/ GLONASS |
| Tracking Sensitivity | -165dB |
| Capture Sensitivity | -159dB |
| Position Accuracy | <2.0m CEP |
| Startup Time | <30s |
| LORA | Support LORA (optional) |
| LORA Frequency | 868MHz/915MHz |
| WiFi | 2.4GHz |
| Electrical Specification&Sensors | |
| Operating Power | 9-36V DC |
| Power & Consumption(Configure four external cameras) | @12V 326mA(Working Mode) @12V 15.6mA(Standby Mode) |
| Built-in Battery | 300mAh 3.7V Lithium battery |
| Acceleration Sensor | • 3-axis G-sensor |
| Audio | • Built-in microphone and • 8Ω / 1W speaker |
| AI | |
| ADAS | • Forward Collision Warning (FCW) • Pedestrian Collision Warning (PCW) • Lane Departure Warning (LDW) • Following Distance Alert • Speeding Alert • Harsh Braking Alert • Harsh Acceleration Alert • Harsh Turning Alert • Collision Warning |
| DMS | • Distracted Driving • Drowsiness Alert (Close eyes &Yawn) • Cell Phone Use Alert • Seat belt Alert • Camera Obstruction Alert • Smoking Alert • Driver Detection Alert |
