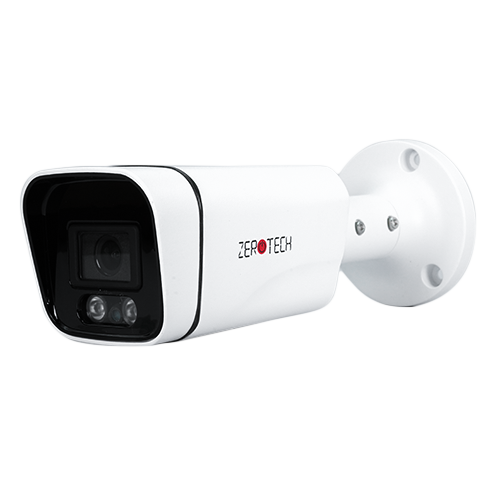

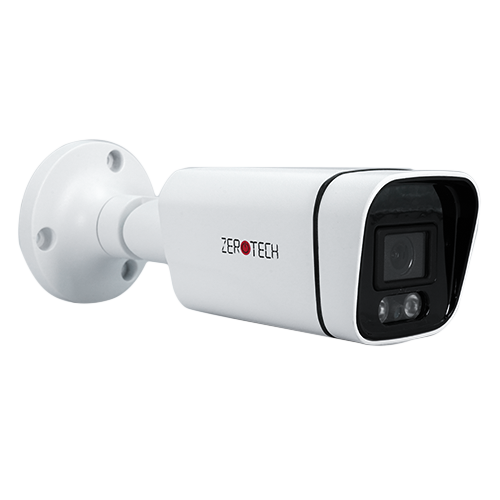

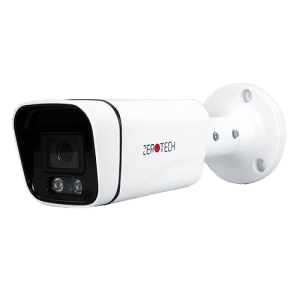

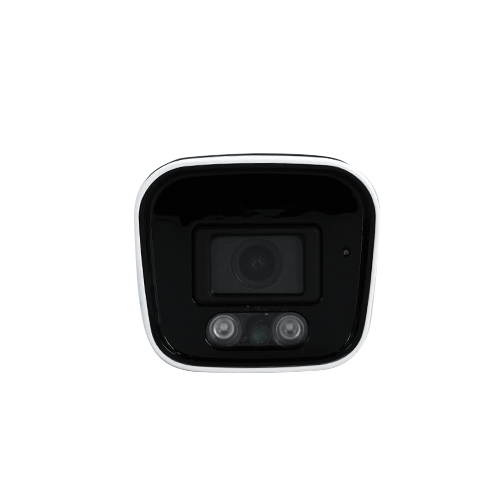

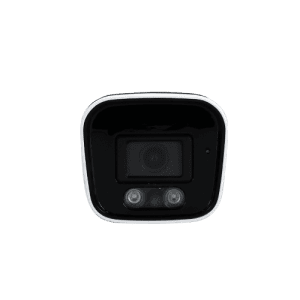

ZTB-Z2MFC
ZTB-Z2MFC
- image sensor 2.0M 1/2.9 cmos
- "Focal Length " 3.6mm
- "Lens Type " Fixed-focal
- 24/7 full color imaging
- 3D DNR, DWDR, and BLC
- warm light distance up to 30M
- 1080P@25fps / 1080P@30fps
- DC12V power supply
- 0.01Lux@(F1.2,AGC ON)，0LUX with IR
| Model Specifications | ZTB-Z2MFC |
|---|---|
| Camera | |
| image sensor | 2.0M 1/2.9 cmos |
| LUX | 0.01Lux@(F1.2,AGC ON)，0LUX with IR |
| DNR | 3D-DNR，2D-DNR |
| WDR | DWDR |
| Lens | |
| Focal Length | 3.6mm |
| Lens Type | Fixed-focal |
| Angle of View (H) | 83.8° |
| Angle of View (V) | 42.7° |
| Angle of View (D) | 100.1° |
| Video | |
| Video output | AHD/TVI/CVI/CVBS |
| BLC | support |
| Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN |
| FPS | 1080P@25fps / 1080P@30fps |
| Video Setting | Contrast/Sharpness/COLOR/GAIN/DNR/Format/DWDR |
| IR Board | |
| The product name | warm light led |
| lamp cup piecs | 2 piecs |
| Voltage | 12V DC |
| warm light distance | up to 30M |
| general | |
| Power | DC12V |
| housing | Size: 60 Metal / white |
| Dimensions (Ø x H) | 183.5 × 58.5 × 65 |
| Weight | Weight ( net ) Approx. 0.350KG |
| Operating Environment | – 20 °C ~ 55 °C (-4°F~131°F) Humidity: less than 95 % (non-condensing) |
