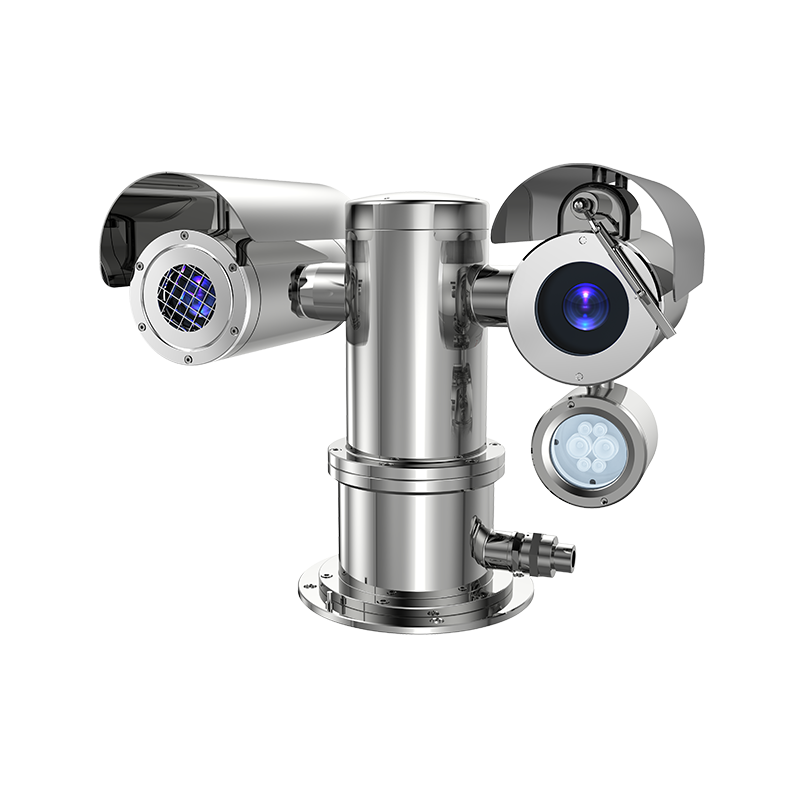

SN-TPT4233PA-F
SN-TPT4233PA-F
- VOx uncooled focal plane detector with 400×300 resolution
- NETD ≤ 40mK
- Thermal: 8/15/25/35/50mm fixed lens optional; Visible: 30x optical zoom module
- Detection capabilities: Human/vehicle, smoke & flame, and fire point detection
- Support temperature monitoring and exception alarm
- Support 3 temperature measurement rule types (spot, line, area)
- Material: 316L Stainless steel
- Temperature range: -20°C to 150°C (-4°F to 302°F), Accuracy: ±2°C / ±2%
- NDAA Compliance, IP68
- Intelligent Analytics: Intrusion, single/double line crossing, loitering, wrong-way,
- enter/leave area detection, smart motion detection, people counting
| Model Specifications | SN-TPT4233PA-F | ||||||
|---|---|---|---|---|---|---|---|
| Camera | Thermal | Visible | |||||
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays | 1/2.8″ STARVIS CMOS | |||||
| Max. Resolution | Sensor is 400×300. Image can be scaled up to 704×576 | 2592 (H)×1944 (V), 5MP | |||||
| Pixel Pitch | 17 µm | ||||||
| Spectral Range | 8 to 14 µm | ||||||
| NETD | ≤ 40mK | ||||||
| Shutter Speed | 1/5 to 1/100,000s | ||||||
| Min. Illumination | Color: 0.07 Lux @(F1.6, AGC ON), B/W: 0.007 Lux (F1.6, AGC ON) | ||||||
| Lens Type | Fixed lens | 30x optical zoom | |||||
| Focal Length | 8 mm, 15 mm, 25 mm, 35 mm, 50 mm optional | 5.3 to 159 mm | |||||
| Max. Aperture | F1.0 | F1.6 | |||||
| Focus Control | Manual focus | Auto/Manual/Semi-automatic | |||||
| Field of View (FOV) | 8 mm: H: 46°, V: 35.3° 15 mm: H: 25.5°, V: 19.2° 25 mm: H: 15.4°, V: 11.6° 35 mm: H: 11°, V: 9° 50 mm: H: 7.7°, V: 5.8° | H: 56.3° to 2.7°, V: 42.4° to 2.0° | |||||
| Intelligent Analytics | |||||||
| AI Multi-Target | Human / vehicle detection | Face / Human / Vehicle detection and capture | |||||
| Intelligent Analysis | Intrusion, Single Line Crossing, Double Line Crossing, Loitering, Wrong-Way Detection, Enter Area, Leave Area, Smart Motion Detection Support alarm triggering by specified target types (human and vehicle) | Intrusion, Single Line Crossing, Double Line Crossing, Loitering, Wrong-Way Detection, Smart Motion Detection Support alarm triggering by specified target types (human and vehicle) | |||||
| Smoke and Flame Detection | Support | ||||||
| People Counting | Support | Support | |||||
| Video and Audio | |||||||
| Resolution | Stream1: 704×576 @25/30fps Stream2: CIF @25/30fps | Stream1: 2592×1944, 2592×1520, 1920×1080, 1280×720 @25/30fps Stream2: D1, VGA, CIF @25/30fps Stream3: VGA, CIF, QVGA @25/30fps | |||||
| Frame Rate | Up to 25fps | Up to 25/30fps | |||||
| Bit Rate Control | CBR/VBR | CBR/VBR | |||||
| Bit Rate | Stream1: 100 Kbps to 6 Mbps, Stream2: 10 Kbps to 1.5 Mbps | Stream1: 200 kbps to 12 Mbps Stream2: 100 kbps to 6 Mbps Stream3: 100 kbps to 3 Mbps | |||||
| Region of Interest | Off/On (8 Zone, Rectangle) | Support | |||||
| Audio Compression | G.711 A-law, G.711 μ-law, PCM | G.711 A-law, G.711 μ-law, PCM | |||||
| Audio Bit Rate | 64 Kbps (G.711), 128 Kbps (PCM) | 64 Kbps (G.711), 128 Kbps (PCM) | |||||
| Image | |||||||
| Image Adjustment | Brightness, Contrast, Sharpness | Brightness, Saturation, Contrast, Sharpness | |||||
| Image Setting | Brightness, Contrast, Sharpness | Brightness, Saturation, Contrast, Sharpness | |||||
| Mirror | Horizontal / Vertical / Horizontal+Vertical | Horizontal / Vertical / Horizontal+Vertical | |||||
| Pseudo-color Setting | Up to 17 colors (White-hot / Black-hot / Rainbow / Iron red / HSV /Bone / Cool / Copper / Fire-hot / Pink / Spring / Summer / Autumn / Winter / Jet / Flame / Rose -Bengal) | ||||||
| FFC Control | Auto / Manual | ||||||
| White Balance | Auto / Tungsten / Fluorescent / Daylight / Shadow / Manual | ||||||
| Day/Night | Auto / Day mode / Night mode / Timer | ||||||
| Noise Reduction | 2D/3D DNR | 2D/3D DNR | |||||
| Image Enhancement | WDR, HLC, BLC, Defog | ||||||
| Wide Dynamic Range | True WDR | ||||||
| OSD | Up to 8 OSD | Up to 8 OSD | |||||
| Privacy Masking | Support | Support | |||||
| Illuminator | IR Range: Up to 100 m (328.08 ft.) | ||||||
| Thermal Function | |||||||
| Temperature Range | -20°C to 150°C (-4°F to 302°F) | ||||||
| Accuracy | ±2°C / ±2% | ||||||
| Temperature Detection | 3 temperature measurement rule types, 20 rules in total, 1 full screen, 19 others (spot, areas, line). | ||||||
| Temperature Alarm | Temperature difference alarm, Threshold alarm, Temperature rise alarm | ||||||
| Temperature Display | Display in the lower left corner; follow the cursor display of the highest temperature, lowest temperature or average temperature | ||||||
| Response Time | ≤ 30ms | ||||||
| PTZ | |||||||
| Pan/Tilt Range | Pan: 0° to 360° endless, Tilt: +90° to -90° | ||||||
| Pan/Tilt Speed | Pan: 0.1° to 30°/s, Tilt: 0.1° to 20°/s | ||||||
| Wiper | Support | ||||||
| Preset Accuracy | ≤ 0.2° | ||||||
| Presets | 400 | ||||||
| Scan | 8 scans | ||||||
| Patrol | 12 patrols, up to 32 presets per patrol | ||||||
| Track | 6 tracks | ||||||
| 3D Positioning | Support | ||||||
| Speed Setup | Auto/Manual (0-8) | ||||||
| Power Off Memory | Support | ||||||
| Idle Motion | The time can be set (1-240 minutes), and functions such as preset positions, patrols, scans, and tracks can be run. | ||||||
| Event | |||||||
| Alarm Triggers | IVS, Temperature anomaly, Motion detection, Alarm Input, Disk alarm, Network alarm, Abnormal sound detection | ||||||
| Event Actions | Alarm record, Alarm output, FTP upload, SMTP upload, Audible alarm output | ||||||
| Network | |||||||
| Protocols | IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast | ||||||
| Interoperability | ONVIF (Profile S/T/G/M), SDK, CGI | ||||||
| Max Concurrent Streams | 10 channels | ||||||
| User/Host Level | 32+ users, 3 levels: Administrator, Operator, Media user | ||||||
| Security | IP address filter, HTTPS, Illegal login lock, IEEE 802.1x | ||||||
| Web Viewer | |
| | |||||
| Interface | |||||||
| Network Interface | 1 Ethernet (10/100 Base-T) RJ-45 Connector | ||||||
| 1ch input, 1ch output (visible) | |||||||
| Audio Interface | 1ch input, 1ch output | ||||||
| Alarm Interface | 5ch input, 1ch output | ||||||
| RS-485 | Support | ||||||
| BNC Interface | 1 BNC (CVBS output of Visible) | ||||||
| Reset Button | Built-in | ||||||
| SD Card Slot | Built-in Micro SD card slot, up to 256GB | ||||||
| General | |||||||
| Language | English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English | ||||||
| Power Supply | 100 to 240 VAC | ||||||
| Power Consumption | Max 75 W | ||||||
| Working Temperature/Humidity | -40°C to 60°C (-40°F to 140°F), Humidity: ≤90% RH (non-condensing) | ||||||
| Certifications | CE-EMC – EN 55032, EN IEC 61000-6-3, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4 FCC 47 CFR Part 15 Subpart B | ||||||
| Ingress Protection | IP68 | ||||||
| Material | SUS316L | ||||||
| Dimensions | 567 × 360 × 494mm (22.66 × 14.17 × 19.45 inch) | ||||||
| Net Weight | 52 kg (114.64 lb) | ||||||
| DRI Distance Table | |||||||
| Focal Length | 8mm | 15mm | 25mm | 35mm | 50mm | ||
| Detection Distance (Humans: 1.8×0.5m) | 235 m (771.7 ft) | 441 m (1,446.9 ft) | 735 m (2,411.4 ft) | 1,029 m (3,376.0 ft) | 1,471 m (4,826.1 ft) | ||
| Detection Distance (Vehicles: 4×1.5m) | 722 m (2,368.8 ft) | 1,353 m (4,439 ft) | 2,255 m (7,398.3 ft) | 3,157 m (10,357.6 ft) | 4,510 m (14,796.6 ft) | ||
| Recognition Distance (Humans: 1.8×0.5m) | 59 m (193.6 ft) | 110 m (360.9 ft) | 184 m (603.7 ft) | 257 m (843.2 ft) | 368 m (1,207.4 ft) | ||
| Recognition Distance (Vehicles: 4×1.5m) | 180 m (590.6 ft) | 338 m (1,109 ft) | 564 m (1,850.4 ft) | 789 m (2,588.6 ft) | 1,127 m (3,697.5 ft) | ||
| Identification Distance (Humans: 1.8×0.5m) | 29 m (95.1 ft) | 55 m (180.4 ft) | 92 m (301.8 ft) | 129 m (423.2 ft) | 184 m (603.7 ft) | ||
| Identification Range (Vehicles: 4×1.5m) | 90 m (295.3 ft) | 169 m (554.5 ft) | 282 m (925.2 ft) | 395 m (1,296 ft) | 564 m (1,850.4 ft) | ||
| Detection Range Table | |||||||
| Focal Length | 8mm | 15mm | 25mm | 35mm | 50mm | ||
| VCA Detection Distance (Human: 1.8 × 0.5 m) | 50 m (164.0 ft) | 92 m (301.8 ft) | 105 m (344.5 ft) | 210 m (689.0 ft) | 284 m (931.8 ft) | ||
| VCA Detection Distance (Front/Rear of Vehicle: 4×1.5 m) | 100 m (328.1 ft) | 120 m (393.7 ft) | 200 m (656.2 ft) | 350 m (1,148.3 ft) | 450 m (1,476.4 ft) | ||
| Temperature Measurement (Object: 0.2 × 0.2m) | 19 m (62.3 ft) | 35 m (114.8 ft) | 59 m (193.6 ft) | 82 m (269 ft) | 118 m (616.8 ft) | ||
| Fire Detection (Object: 0.2 × 0.2m) | 47 m (154.2 ft) | 88 m (288.7 ft) | 147 m (482.3 ft) | 206 m (675.9 ft) | 294 m (964.6 ft) | ||
