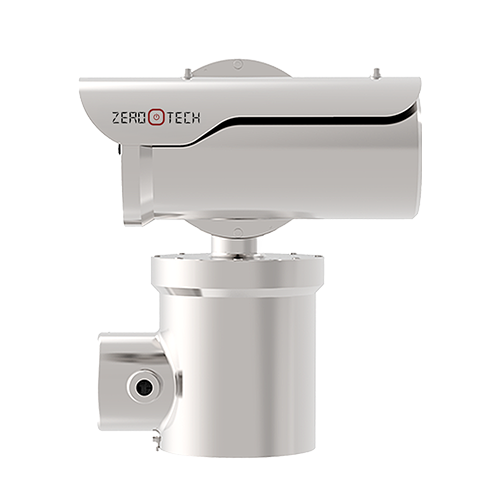

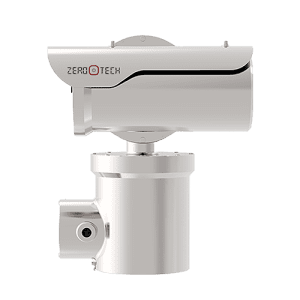

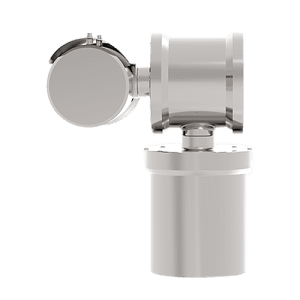

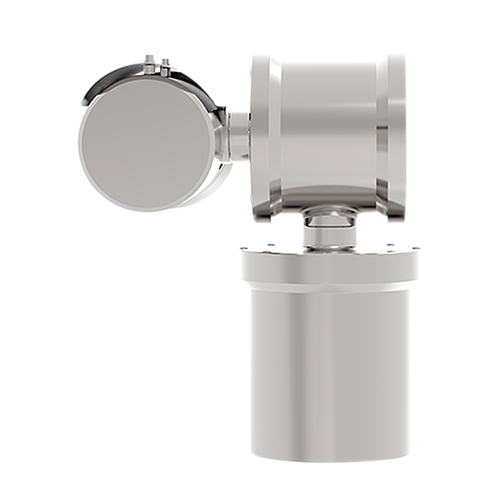

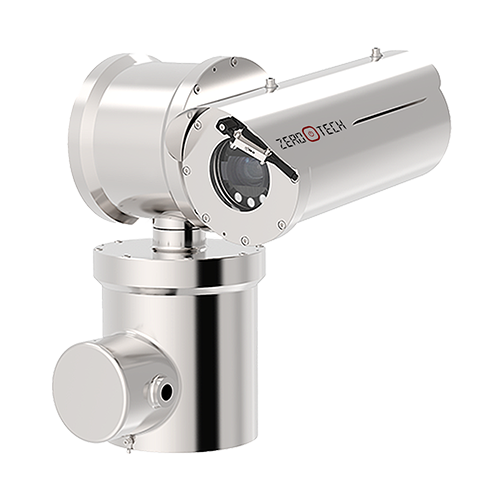

IVEX - PTZ-30AW
IVEX - PTZ-30AW
- Ex Certifications : IECEx / ATEX / KCs / NEPSI
- Ex Certifications (Gas) : Ex d IIC T6 Gb, Zone 1 & 2
- Ex Certifications (Dust) : Ex tb IIIC T85°C Db, Zone 21 & 22
- Electropolished AISI 316L Stainless Steel / Lost-wax casting mold structure without welds
- Ingress Protection Rating : IP67
- Ambient Temperature : -40°C~+67°C
- Pan / Tilt Range : 360° Endless / ±90°
- Pan / Tilt Speed : 0.025°~120°/sec (Basic 60°/sec)
- 100% Gear Type Rotation Mechanism Structure - Excellent Durability, Ideal for Environments with Severe Vibration
- Explosion Proof Enclosure Integrated Structure - Output Cable Connect/Disconnect, Excellent Field-Installed Maintenance Capabilities
- Full HD 2 Megapixel, 1/1.9" High Sensitivity STARVIS CMOS Sensor
- ONVIF / RS-485 support
- Wiper for rotary operation / Auto timer function / Dust brush_option
- Cable Entry : 2 x 3/4" NPT
- Focal Length / Zoom : 6~216mm / Optical 36x & Digital 32x
- Equipped with high-performance hybrid infrared LED. Visibility up to 100 meters
| MECHANICAL PART | |
|---|---|
| Model | IVEX – PTZ-30AW |
| Ex Certifications | IECEx/ATEX/KCs/NEPSI |
| Ex Certifications (Gas) | Ex d IIC T6 Gb, Zone 1 & 2 |
| Ex Certifications (Dust) | Ex tb IIIC T85°C Db, Zone 21 & 22 |
| Construction | AISI 316L Stainless Steel |
| Dual Window Cleaning | Rotating Operation Type Dual Wiper (Fine Dust Brush + EDPM Blade) Mounted Auto Timer Operation Automatic Cleaning Function (Option) |
| Infrared Floodlight | High Performance Hybrid Infrared LED Visible Distance up to 100 meters (Option) |
| Explosion Proof Enclosure | Output Connect/Disconnect Cables, Function Setting and Main Circuit Replacement Available |
| Wiper / Fan / Heater | Option |
| Pan / Tilt Range | 360° Endless / ±90° |
| Pan / Tilt Speed | 0.025῀120°/sec (Basic 60°/sec) |
| Ingress Protection Rating | IP67 |
| Ambient Temperature | -40°C~+67°C |
| Operating Temperature | -20°C~+55°C |
| Dimensions | 350(W) x 445(H) x 380(L) mm |
| Weight | About 32 kg |
| Communications | TCP/IP / RS-485 |
| Supply Voltage | DC 24V, 50/60Hz, 110 ~ 230VAC |
| Power Consumption | Up to 150W |
| Cable Entry | 2 x 3/4″ NPT |
| CAMERA PART | |
|---|---|
| Sensor Type | 1/1.9″ Sony STARVIS CMOS Sensor |
| Effective Pixels | 1937(H) x 1097(V)=2.12 M Pixels |
| Resolution | 1920 x 1080p |
| Lens | F= 6mm~216mm / F1.5(wide) ~ F4.8(tele) |
| Angular Field of View (D/H/V) | D : 63.31°(W)~2.44°(T) / H : 56.5°(W)~2.12°(T) / V : 33.63°(W)~1.19°(T) |
| Zoom | Optical 36x & Digital 32x |
| Minimum Illumination | Color : 0.15 Lux / BW : 0.01lux / Color DSS(1/7.5s) : 0.0375lux / BW DSS(1/7.5s) : 0.002lux |
| Day & Night | Auto / Day / Night |
| White Balance | Auto / One Push / Manual / Indoor / Outdoor |
| Backlight Compensation (WDR) | Real-Time True WDR, Off / WDR / BLC / HLC |
| Function | Digital Image Stabilizer / Defog Function |
| DNR | Auto / Off / Low / Middle / High |
| Digital Slow Shutter | Off / 2x / 4x |
| Video Quality Adjustment | H.264 / H.265 / MJPEG |
| Streaming Capability | Secondary x3 : H.264 / MJPEG |
| Ethernet | Ethernet 10/100 Base-T(RJ-45) |
| IP | IPv4 / IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP. RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2/v3(MIB-2), ARP, DNS, DDNS |
| ONVIF | Yes |
