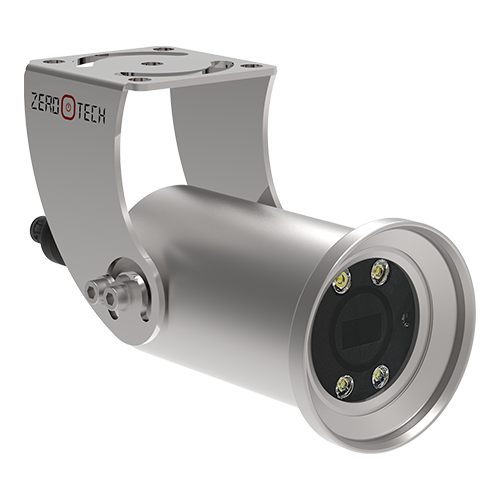

IAQUA-100F
IAQUA-100F
Key Features
- Full HD 2MegaPixel PoE Network
- Underwater Max 100meter, 24/7 365day 40meter
- IP68 Protection Degree
- AISI 316L Stainless Steel / Tempered Glass
- Subsea Specialty Armored Cable (20meter, 50meter 100meter)
- 3.6mm Fixed Lens
- 1/2.8“ Sony STARVIS CMOS Sensor
- 2MP Full HD(1920 x 1080) / 30fps
- Multi Video Compression : H.264 / H.265 / MJPEG
- Min. Illumination 0.03 Lux
- True Day & Night / True Wide Dynamic Range
- ONVIF Support (Profile-S)
Application Market
- Marine, Offshore, Aquatic Ecology/Environment, Swimming Pool, Underwater drone Fish farm, Water and sewage facilities
| Model No | iAQUA-100F |
|---|---|
| CAMERA SPECIFICATION | |
| Image Sensor | 1/2.8″ Sony STARVIS CMOS Sensor |
| Active Pixel | 1,945(H) x 1,097(V) / 2.13 Megapixels |
| Lens | 3.6mm Fixed Lens / F1.6 |
| Min. Illumination | 0.03 Lux |
| Day & Night | True Day & Night (Auto, Day, Night) |
| Electric Shutter Control | Auto, Suppress Rolling, Manual (1/30~1/30000 sec) |
| WDR | True WDR (ON/Off) |
| DNR | 2 DNR, 3 DNR |
| Privacy Zones | off / on (8 programmable zones) |
| Video Compression | H.264 / H.265 / MJPEG |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 640×480, 320×240 |
| Frame Rate | Max 30/25fps(NTSC/PAL) |
| Bit rate | 32 Kbps ~ 8 Mbps (CBR/VBR) |
| Video Quality Control | H.264/H.265 (Bitrate Control), MJPEG (Quality Level Control) |
| Video Streaming | Triple Stream (H.264/H.265/MJPEG), RTP/RTSP, Unicast RTP, Multicast RTP |
| User | Max 10 User |
| Connector | Ethernet 10/100 Base-T(RJ-45) |
| IP | IPv4 / IPv6 |
| Network protocol | TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP DHCP, FTP, SMTP, DNS, DDNS |
| ONVIF | Profile-S |
| Power | PoE Class 3(IEEE 802.3af) |
| Cable | Armored Cable for Subsea, 20meter / 50meter / 100meter |
| Protection Degree | IP68 (Max 100M underwater) |
| Material | AISI 316L Stainless Steel / Tempered Glass |
| Operating Temperature/Humidity | -25°C ~ +55°C / Less than 95% RH |
| Size | Ø92 × 188 mm |
| Weight | 3.0 Kg |
